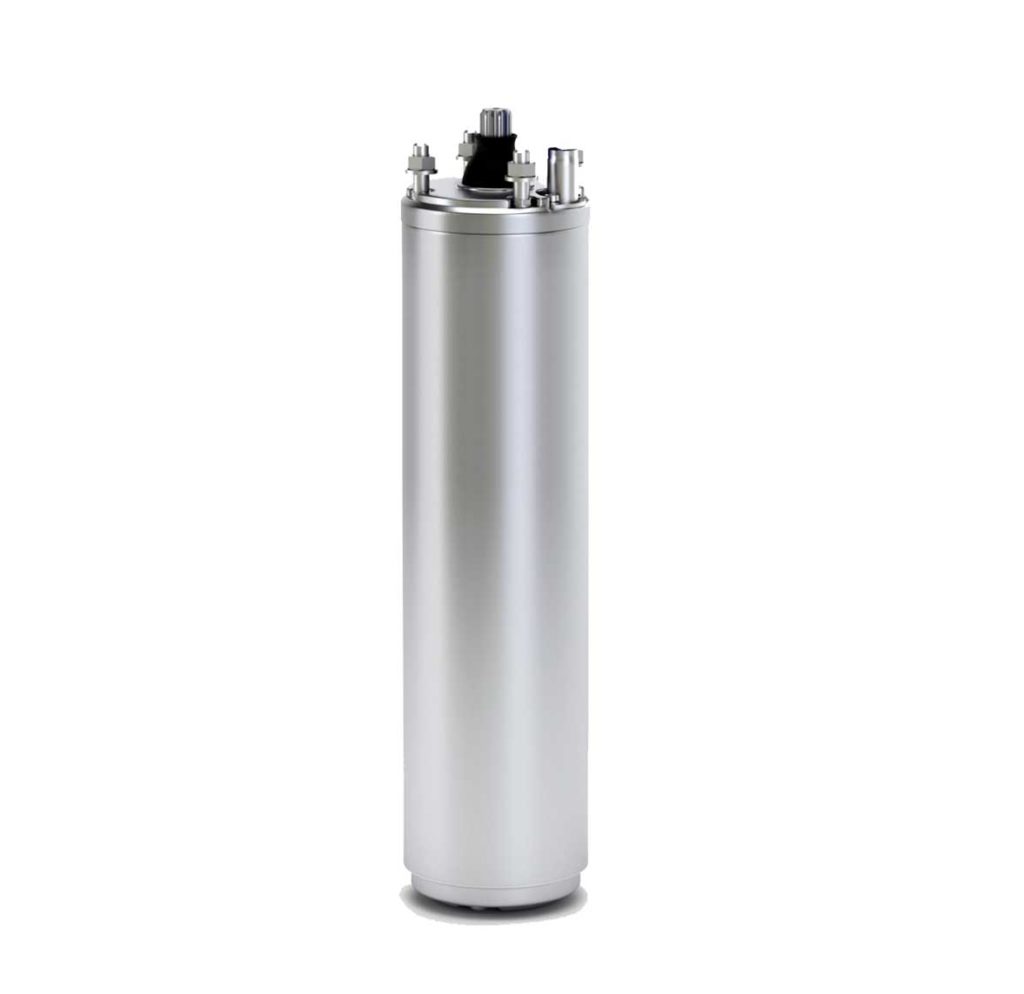

4″ Deep Well Submersible Motor , 3HP , 2.2 Kw , 208-230V , 3PH – 60Hz (SS316)

5/5
4" Deep Well Submersible Motor , 3HP , 2.2 Kw , 208-230V , 3PH - 60Hz (SS316)

Christmas Deal

SKU: 5331148 Categories: , , Tags: , ,
SKU 5331148 Categories , , Tags , ,
SKU: 5331148 Categories: , , Tags: , ,

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

4″ Deep Well Submersible Motor , 3HP , 2.2 Kw , 208-230V , 3PH – 60Hz (SS316)

5/5

 Unit Price Only

$1,299.99

ETA 3-5 Days - Free Shipping

In stock

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Scan or click to get the app!

Cart

Advertisement

DAB ESYBOXMINI 1
DAB ESYBOXMINI 2

Product Data>>>



GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Product advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring
  • Pressure equalizing diaphragm
  • Removable lead connector
  • Control boxes available for single phase motor Standard NEMA mounting dimensions

Technical specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS316 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F
  • Rated ambient temperature: 86°C with min.
  • Cooling flow 0.08 m/s of water flow speed
  • Standard installation position: vertical and horizontal

 Made in Taiwan

Estimated Delivery Time: 3 – 5 Business Days



Description

Model 5331148
Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
Service Factor 1.15
Material Stainless Steel 316
Volts 230 -Three Phase
In(A)

Imax

Istart

 9.8

10.6

56.0
HP 3
KW 2.2
R.P.M 3450
PF Allowable load %

PF Overload Factor %

 0.73

0.77
Efficiency(Allowable load%)

Efficiency(Overload Factor%)

 71.1

71.2
Need Capacitor Box

Need Starter

 No

Optional
Cable section (AWG) 14
Cable length (ft.) 4
Dimensions L x W x H (in.) 3.8 x 3.8 x 15.6
Product Weight (lbs.)
Production Country Taiwan

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Materials:

  • -Upper/Lower Bracket: AISI 316 Over Iron
  • -Stator Shell: AISI 316
  • -Shaft: AISI 630
  • -Seal Cover: Nylon
  • -Lip Seal: NBR
  • -Diaphragm: NBR
  • -Sand Slinger: NBR
  • -Lead Wire (Cable): XLPE
  • -Bolts and Screws: AISI 316
  • -Lead Potting: Epoxy
  • -Kingsbury Thrust Bearing: 402J2

Product advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring
  • Pressure equalizing diaphragm
  • Removable lead connector
  • Control boxes available for single phase motor Standard NEMA mounting dimensions

Technical specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS316 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F
  • Rated ambient temperature: 86°F with min.
  • Cooling flow 0.08 m/s of water flow speed
  • Standard installation position: vertical and horizontal

 Made in Taiwan
