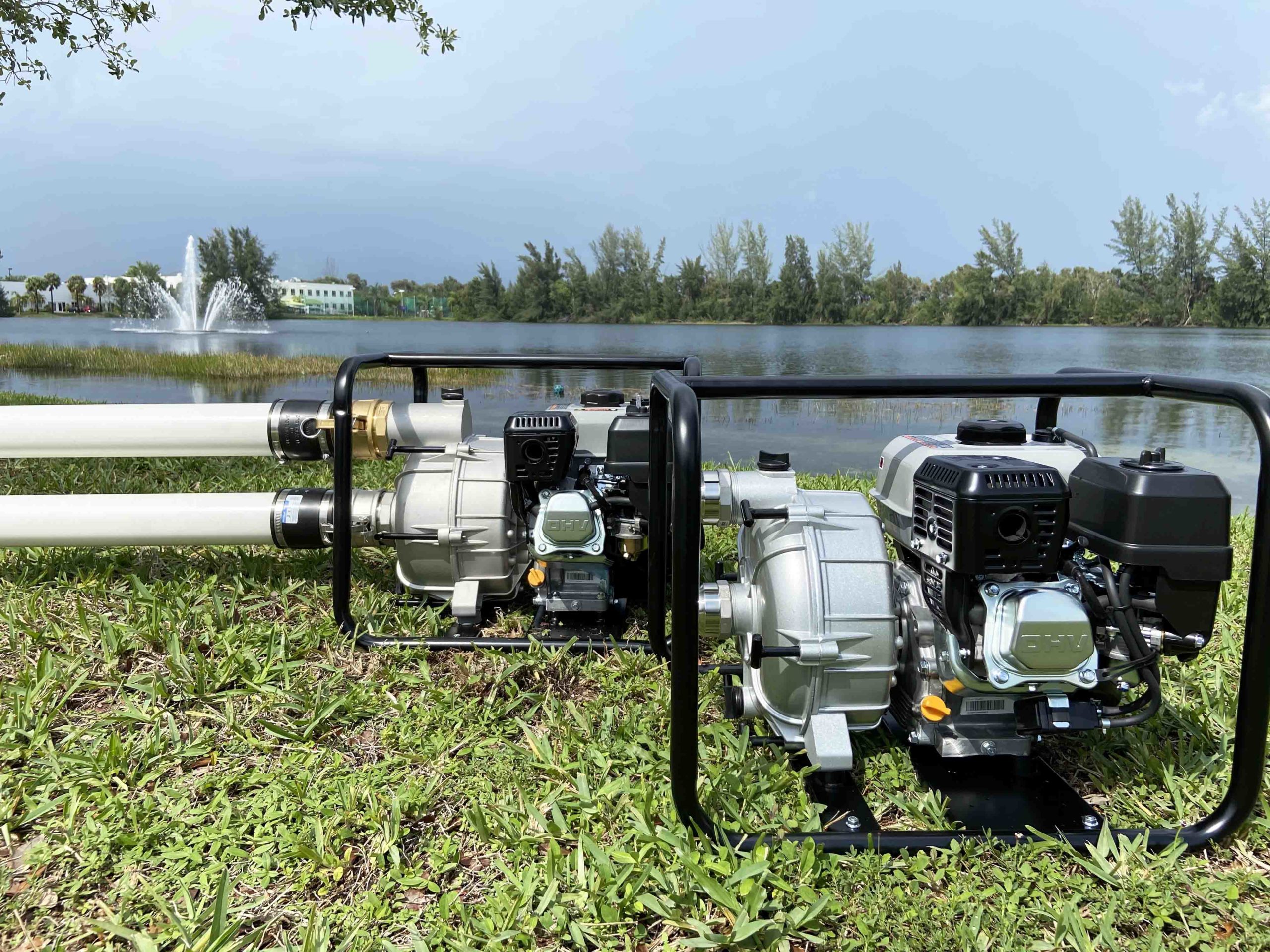

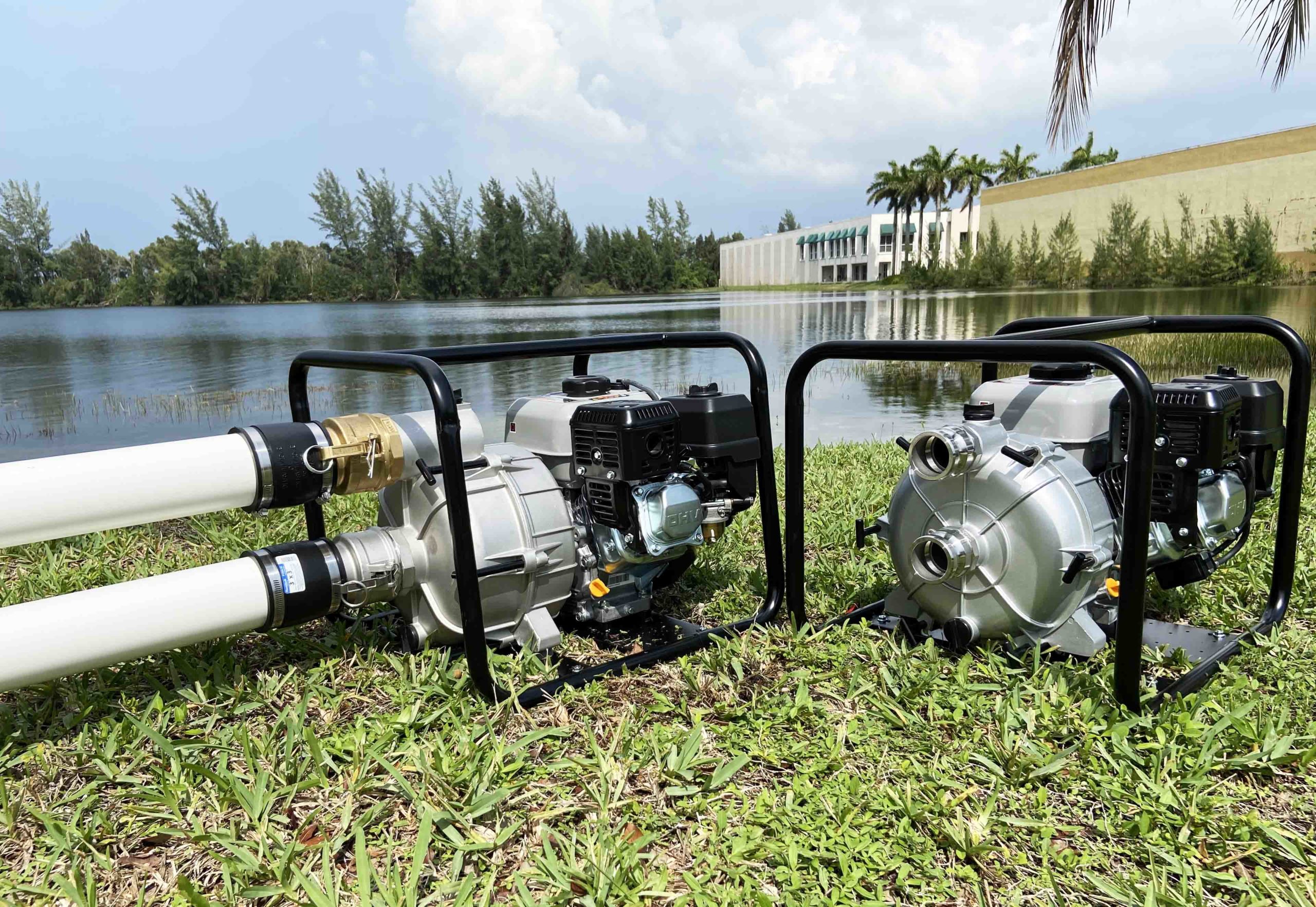

Full Trash Gas Powered Water Pump - 9245 GPH, 195cc Engine , 2" ports - Model#TG20

Full Trash Gas Powered Water Pump - 9245 GPH, 195cc Engine , 2" ports - Model#TG20

Full Trash Gas Powered Water Pump - 9245 GPH, 195cc Engine , 2" ports - Model#TG20

The engine is easy starting and provides ample power for the toughest conditions. The TG features abrasion-resistant silicone-carbide seals for extended wear. The frame protects the pump, while offering a convenient tie down location for transport. 4-stroke 196CC OHV engine pumps water and debris up to 9/16 in. size. Also features tubular steel frame, 8 in. Never Flat tires and foldaway handle. It has a delivery volume of 158 GPM 0.9 Gal. fuel capacity. 26 ft. suction-head length. 98 ft. total-head length. 2 in. inlet and outlet diameter. 19.2 in. L x 20.8 in. W x 25 in. H. weight: 66.1 lbs.

  • Cast iron volute and impeller reduces case wear, increasing the life of the pump
  • Protects the pump by shutting the engine off when low oil is detected
  • Providing metal filter with solid size capacity 14 mm
  • TG is designed for quick and easy service
  • NPT Connection

Estimated Delivery Time: 3 – 5 Business Days

EPA and CARB APPROVED

------

ETA: 3 to 5 Business days

FREE SHIPPING

$490.23

Add to Cart

Cart

Categories

Category

The engine is easy starting and provides ample power for the toughest conditions. The TG features abrasion-resistant silicone-carbide seals for extended wear. The frame protects the pump, while offering a convenient tie down location for transport. 4-stroke 196CC OHV engine pumps water and debris up to 9/16 in. size. Also features tubular steel frame, 8 in. Never Flat tires and foldaway handle. It has a delivery volume of 158 GPM 0.9 Gal. fuel capacity. 26 ft. suction-head length. 98 ft. total-head length. 2 in. inlet and outlet diameter. 19.2 in. L x 20.8 in. W x 25 in. H. weight: 66.1 lbs.

  • Cast iron volute and impeller reduces case wear, increasing the life of the pump
  • Protects the pump by shutting the engine off when low oil is detected
  • Providing metal filter with solid size capacity 14 mm
  • TG is designed for quick and easy service
  • NPT Connection



Specifications & Technical infromation

Maximum Pumping Height (ft.) 98 Product Height (in.) 20 in
Product Depth (in.) 22.5 in Product Width (in.) 20 in

Details

Adjustable Speed No Minimum working temperature (F) 54
Corrosion Resistant Yes Oil Capacity (oz.) 40.6
Discharge Flow @ 0 ft. (gallons/hour) 9245 Outlet Connection Threaded male
Discharge Flow @ 10 ft. (gallons/hour) 8200 Portable Yes
Float Switch No Power Type Gas Powered
Fuel Tank Capacity (gallons) 0.68 Product Weight (lb.) 73 lb
Hardware Included Yes Pump Switch Type Switch-less
Head Pressure (ft.) 98 Returnable 90 Days
Horsepower (Hp) 6 Hp Run-Dry Capable No
Housing Material Aluminium Self-Priming Yes
Inlet Connection Threaded male Solids Handling Yes
Maximum Discharge Flow (gallons/hour) 9245 Submersible No
Maximum Working Temperature (F) 104  Ports 2″



Warranty / Certifications

Certifications and Listings CE Certified,EPA Approved,No Certifications or Listings Manufacturer Warranty 1 year
