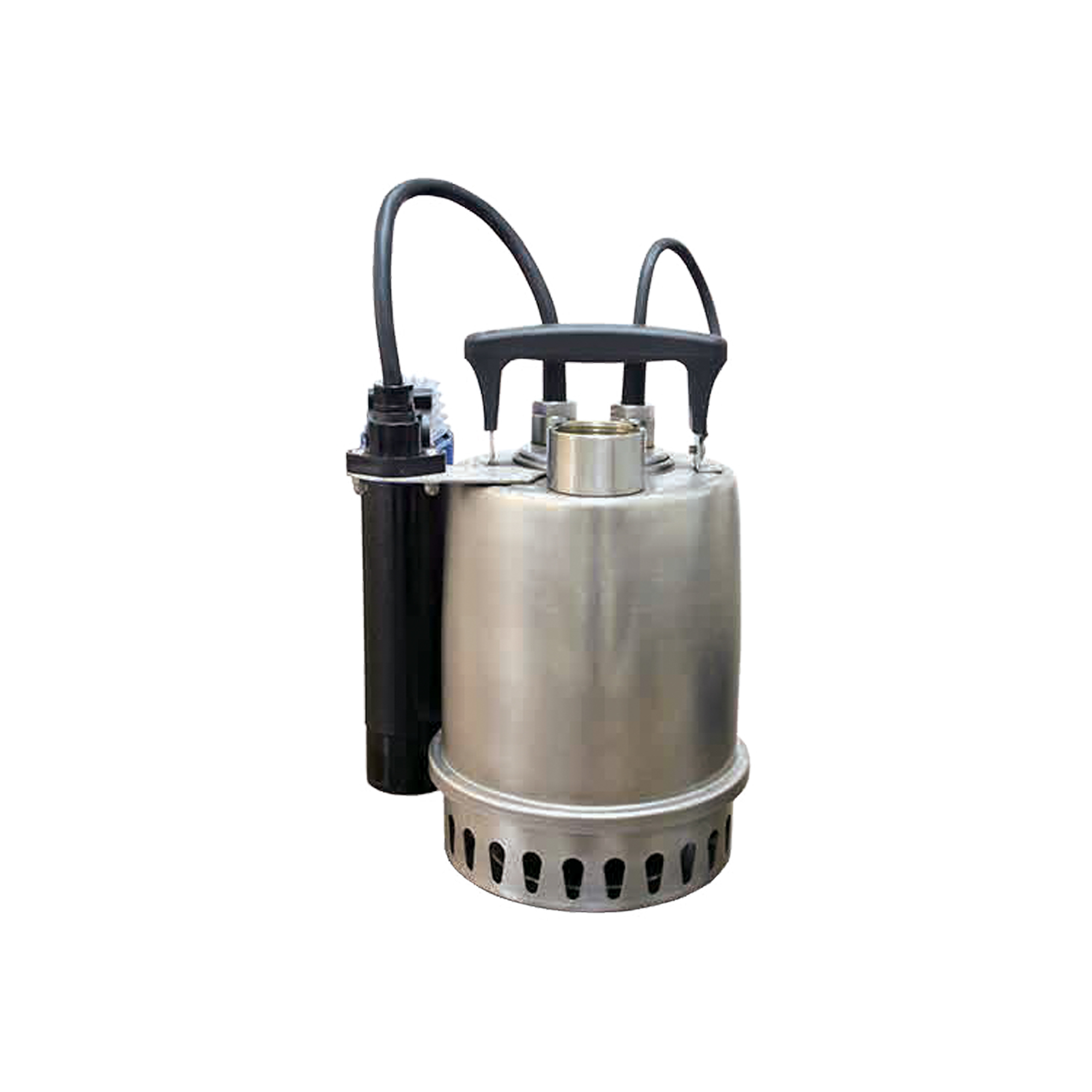

Automatic Drainage Submersible Pump X1-03M32 – 2550 GPH, 0.33HP, 1-1/4″, 220V, SS316

5/5
X1 Sump Drainage Pump - Automatic Drainage Submersible Pump - 110V - 03MS32 (SS316)

Christmas Deal

SKU: 5337131 Categories: , , , , , Tags: ,
SKU 5337131 Categories , , , , , Tags ,
SKU: 5337131 Categories: , , , , , Tags: ,

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Automatic Drainage Submersible Pump X1-03M32 – 2550 GPH, 0.33HP, 1-1/4″, 220V, SS316

5/5

 Unit Price Only

Original price was: $443.99.Current price is: $355.19.

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Scan or click to get the app!

Cart

Advertisement

DAB ESYBOXMINI 1
DAB ESYBOXMINI 2

Product Data>>>

Stainless Steel series Electric Submersible Drainage Pumps. Compact design with top discharge outlet reduces space usage for installation in small manholes, for use in domestic installations and small featured works. It has a lever sensor, Vertical Mechanical activated Float Switch with casement. Top discharged cools and removes heat from the motor through the outlet. It allows these pumps to be used even when only partially submerged. Every model undergoes hydrostatic testing for leakage from the casing and mechanical seals.

Applications

  • Domestic drainage.
  • Grey water drainage.
  • Light waste water discharge.
  • Hydro-sanitary.
  • Emergencies flooding pumping in homes.
  • Fountain and landscape.
  • Drainage pumping.

Description

Operation Conditions

  • Liquid Temperature: up to 50°C (122˚F).
  • Max. Depth: 16.5 ft.
  • Max. Head: 28.5 ft.
  • Max. Flow: 2530 GPH.

Motor

  • Motor type: 2 Pole, Dry type.
  • Frequency: 60Hz.
  • Insulation Class: F class (311°F).
  • Nominal Speed: 3450 rpm.

Pump

  • Enclosure Protection Class: IP 68.
  • Protector: Thermal protection, built-in (single phase).
  • Insulation Class: F class (155°C).
  • Bearing: Double sealed with steel cage.
  • Mechanical seal: Unbalance single mechanical seal (bath in oil with spring type oil seal).

Performance Curve

Model Voltage Power Ampere Outlet Head Max. Flow Max. Solid Passage Capacity
60Hz Hp Kw A In. Ft. Gal/Min In. Gal/Min 0 5.3 10.6 21.1 31.7 42.3
X1-03M32 220V 0.33 0.25 4.6 – 4 1 1/4 28.5 42.3 0.4 Ft. 28.5 27.2 25.3 21.3 15.1 6.9

Dimensions

Dimensions (in.) Cable Length Weight
A B C H H1 S D E F G Ft. Lb
4.9 3.3 8.2 10.8 9.1 0.4 14.5 7.9 x 7.9 6.9 3.5 32 12.8

Parts and Materials

Additional information

Weight 13 lbs
Dimensions 10 × 14 × 8 in
