Booster Water Pump for Clear water— 554 GPH, 0.5 HP, 1in. Ports - KPM50 BR

Booster Water Pump for Clear water— 554 GPH, 0.5 HP, 1in. Ports - KPM50 BR

Booster Water Pump for Clear water— 554 GPH, 0.5 HP, 1in. Ports - KPM50 BR




Application:

Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-agressive liquids only, without sand or other solid im pu rities..

OPERATING CONDITIONS:

  • – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
  • – Temperature max. liquid: 140°F (for other uses)
  • – Ambient temperature up to 104°F
  • – Total suction lift up to 23 ft.

MOTOR:

  • – Single-phase 110/220V – 60Hz
  • – Two-Pole induction motor (n = 3450 min-1)
  • – Insulation Class F
  • – Protection IP 44

MATERIALS:

– Pump body: Bronze
– Motor Support: Cast Iron
– Impeller: Brass
– Shaft with rotor:  Stainless Steel AISI 304
– Mechanical seal (50-80): Ceramic/Graphite/NBR

Not for use in Sprinkler Systems

Estimated Delivery Time: 3 – 5 Business Days



------

ETA: 3 to 5 Business days

FREE SHIPPING

$293.51

Add to Cart

Cart

Categories

Category


Application:

Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-aggressive liquids only, without sand or other solid im pu rities..

OPERATING CONDITIONS:

  • – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
  • – Temperature max. liquid: 140°F (for other uses)
  • – Ambient temperature up to 104°F
  • – Total suction lift up to 23 ft.

MOTOR:

  • – Single-phase 110/220V – 60Hz
  • – Two-Pole induction motor (n = 3450 min-1)
  • – Insulation Class F
  • – Protection IP 44

MATERIALS:

– Pump body: Bronze
– Motor Support: Cast Iron
– Impeller: Brass
– Shaft with rotor:  Stainless Steel AISI 304
– Mechanical seal (50-80): Ceramic/Graphite/NBR

Not for use in Sprinkler Systems

Dimensions & Performance Curve:

Booster Water Pump for Clear water— 554 GPH, 0.5 HP, 1in. Ports - KPM50 BR

Brand: SPERONI

More Details:

Model KPM50 BR
Brand SPERONI
Manufacturer’s Warranty 1 year Limited Warranty
Ship Weight 14 lbs
Port Size (in.) 1
Flow (GPH) 554
HP 0.5
Volts

AMP 110V

AMP 220V

110/220V –  Single Phase

5.7

2.9

Max. Total Head (ft.) 125
Max. Suction Lift (ft.) 23
Max. PSI 55
Suction Port (in.) 1
Discharge Port (in.) 1
Self-Priming NO
Dimensions L x W x H (in.) 8.8 x 4.8 x 5.6
Product Weight (lbs.) 13.5

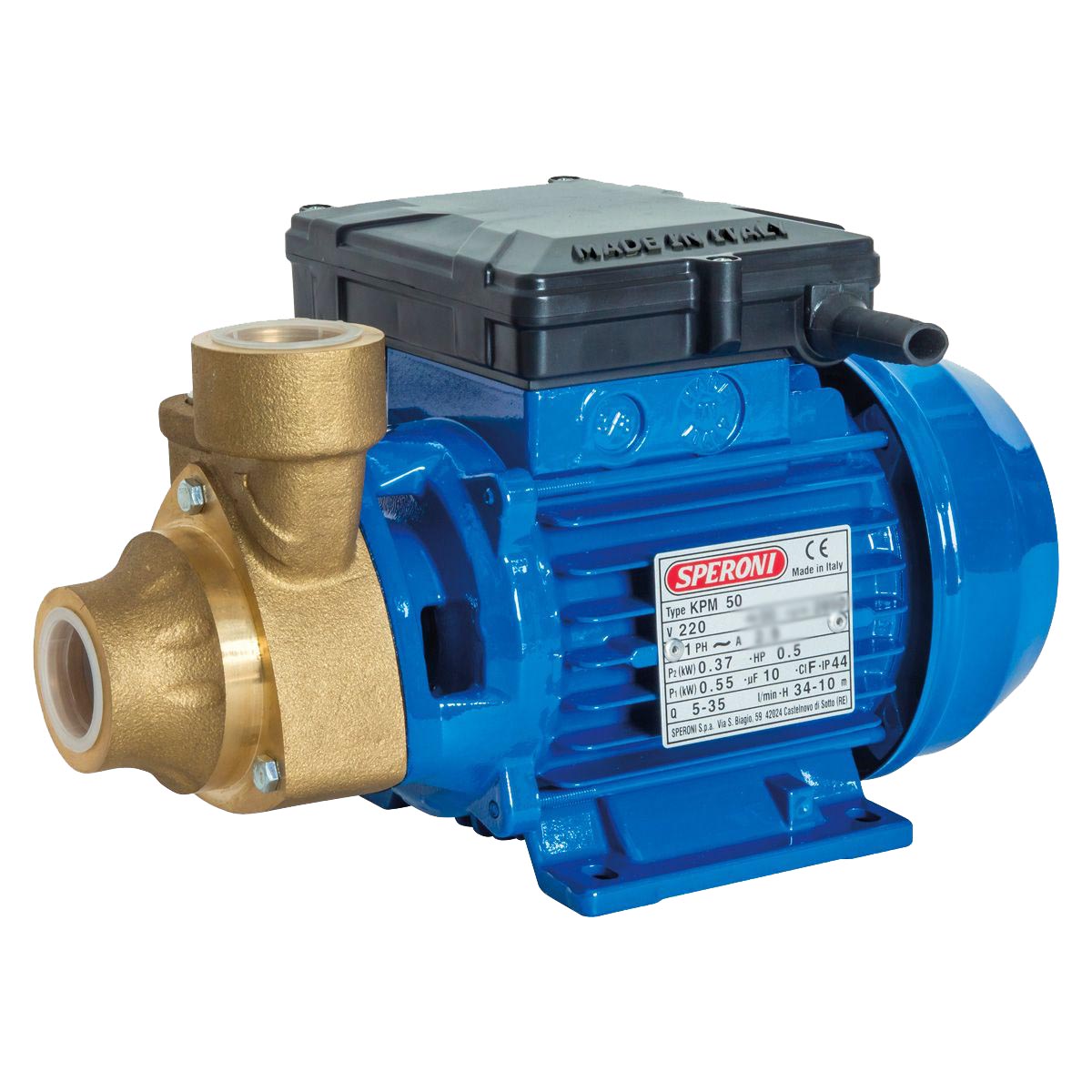

SPERONI KPM50 BR, Booster Water Pump for Clear water
