Application:

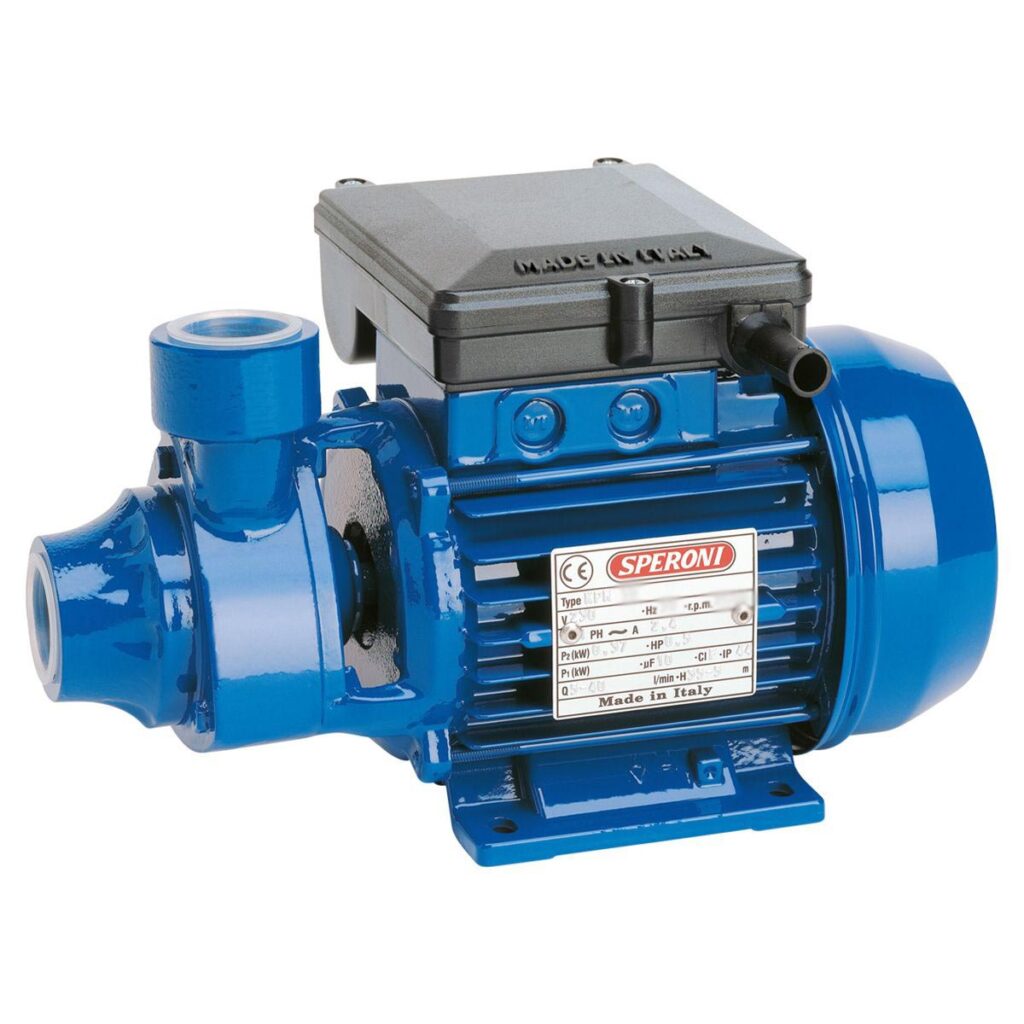

Volumetric water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small autoclave tanks or by hydrosphere units. For the correct functioning of the pump, use clean water, or non-agressive liquids only, without sand or other solid im pu rities..

OPERATING CONDITIONS:

• – Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
• – Temperature max. liquid: 140°F (for other uses)
• – Ambient temperature up to 104°F
• – Total suction lift up to 23 ft.

MOTOR:

• – Single-phase 110/220V – 60Hz
• – Two-Pole induction motor (n = 3450 min-1)
• – Insulation Class F
• – Protection IP 44

MATERIALS:

– Pump body: Cast Iron
– Motor Support: Cast Iron
– Impeller: Brass
– Shaft with rotor:  Stainless Steel AISI 304
– Mechanical seal (50-80): Ceramic/Graphite/NBR
