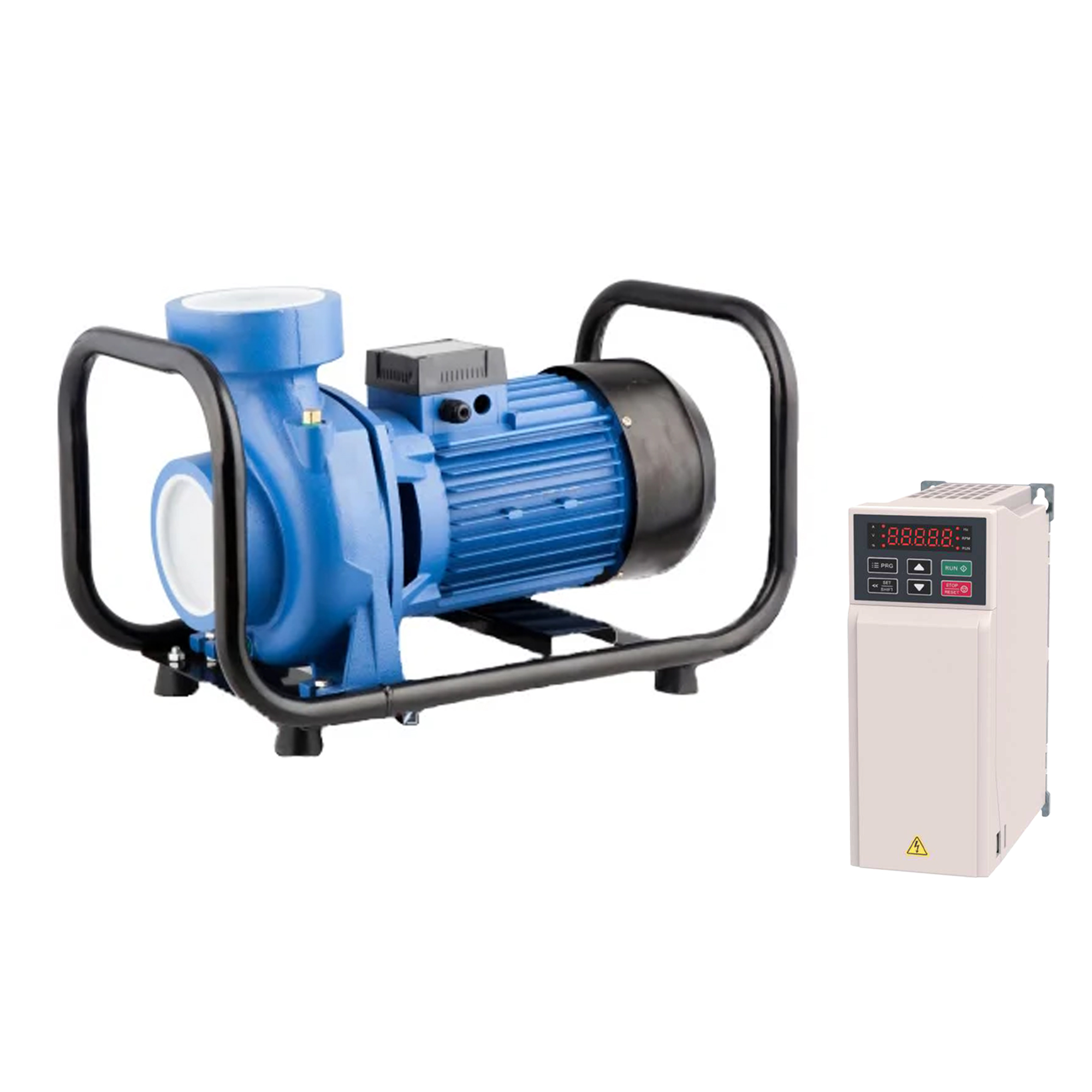

Description
Features
- Permanent magnet, brushless motor, saving energy and offering maximum efficiency
- NSK bearing with alloy mechanical seal, offering the longer working life
- MPPT function offers higher utilization rate of solar energy
- Water proof and leak proof based on double water seal
- Controller maximum’s operating temperature: 60℃
- Soft start
- Adjustable speed
- Dry running protection
- Error wiring protection
- Over/under-voltage protection
- Overload protection
- Over-current protection
- Phase-loss protection
- High working temperature protection
Performance Table
Model | PHC3000-22/80 |
Type | Centrifugal |
Controller | Included |
AC Voltage (V) | 380 |
Minimum DC Voltage (V) | 540 |
Best Performance DC Voltage (V) | 620 – 750 |
Power (W) | 3000 |
Max Head (ft) | 72 |
Max Flow (GPM) | 352 |
Inlet/Outlet | 4″ x 4″ |
Performance Curve
How to Wire Solar Panel?
When solar panels are wired in a series, voltage is additive, but the amperage stays the same. But if you parallel wired panels the amperage would be additive, while the voltage remains the same.
