Description
Performance Curve
Type | Impeller | HP | R.P.M. PTO | Ratio | R.P.M. Pump | Capacity | ||||||||
Ø (inch) | Opening (inch) | |||||||||||||

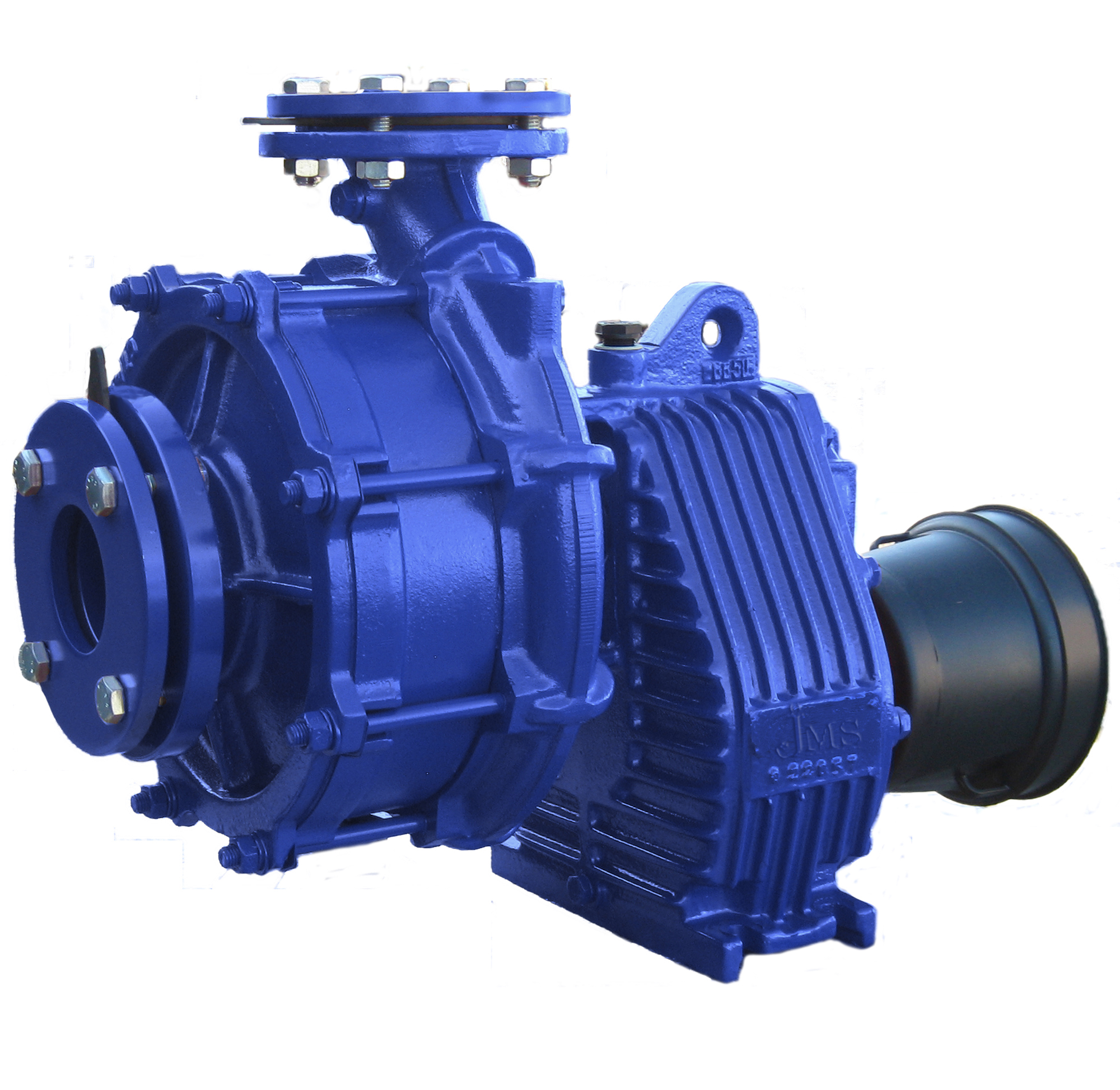

JCA 552-628A | 10.2 opening: 0.2 |
8.1 opening: 0.2 |
45 | 460 | 1 : 6.28 | 2900 | Gal/Min | 105.7 | 118.9 | 132.1 | 145.3 | 158.5 | 184.9 | 211.3 |
Ft. | 485.6 | 482.3 | 472.4 | 469.2 | 459.3 | 442.9 | 416.7 | |||||||
Cv ass. | 24 | 25 | 27 | 28 | 29 | 31 | 33 |
Dimensions
Size (inch) | Weight (lbs.) | |||||||||||||||||||||
A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | R | S | T | V | Z | DNa | DNm | |
22 | 19 | 10 | 9 | 7 | 5 | 7 | 3 | 4 | 1 | 9 | 10 | 1 | 2 | 3 | 1 3/8 | 5 | 12 | 1 | 7 | 3 | 2 | 202.4 |
