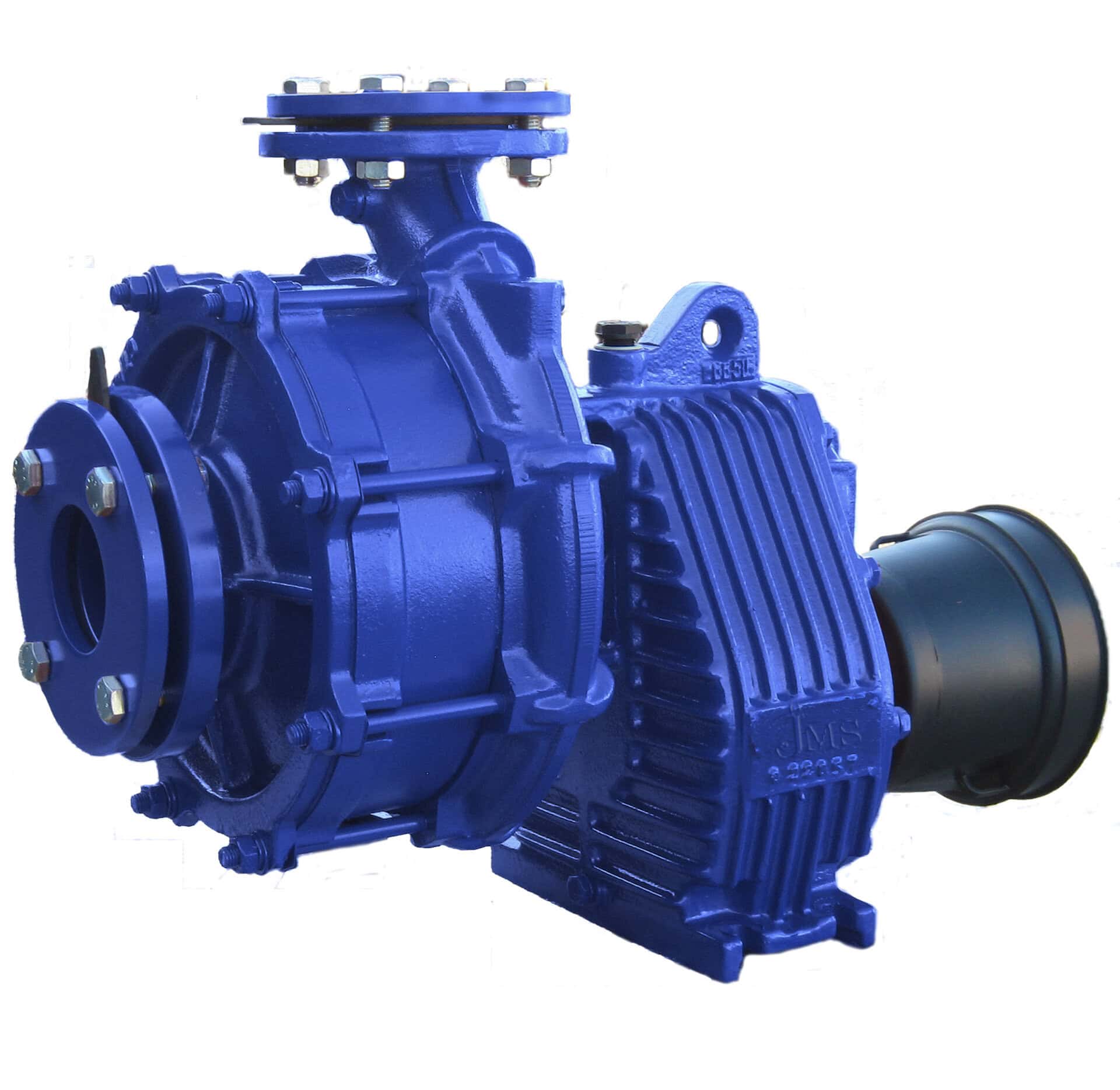

Description
Performance Curve
Type | Impeller | HP | R.P.M. PTO | Ratio | R.P.M. Pump | Capacity | ||||||||
Ø (inch) | Opening (inch) | |||||||||||||
JCA 652-537B2 | 10.2 opening: 0.4 |
8.1 opening: 0.5 |
70 | 540 | 1 : 5.37 | 2900 | Gal/Min | 211.3 | 237.8 | 277.4 | 317 | 356.6 | 383 | 409.5 |
Ft. | 452.8 | 446.2 | 433.1 | 416.7 | 393.7 | 374 | 354.3 | |||||||
Cv ass. | 45 | 48 | 52 | 55 | 59 | 61 | 62 |
Dimensions
Size (inch) | Weight (lbs.) | |||||||||||||||||||||
A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | R | S | T | V | Z | DNa | DNm | |
22 | 20 | 10 | 10 | 7 | 6 | 7 | 3 | 4 | 1 | 9 | 10 | 1 | 2 | 3 | 1 3/8 | 5 | 12 | 1 | 7 | 3 | 3 | 202.4 |
