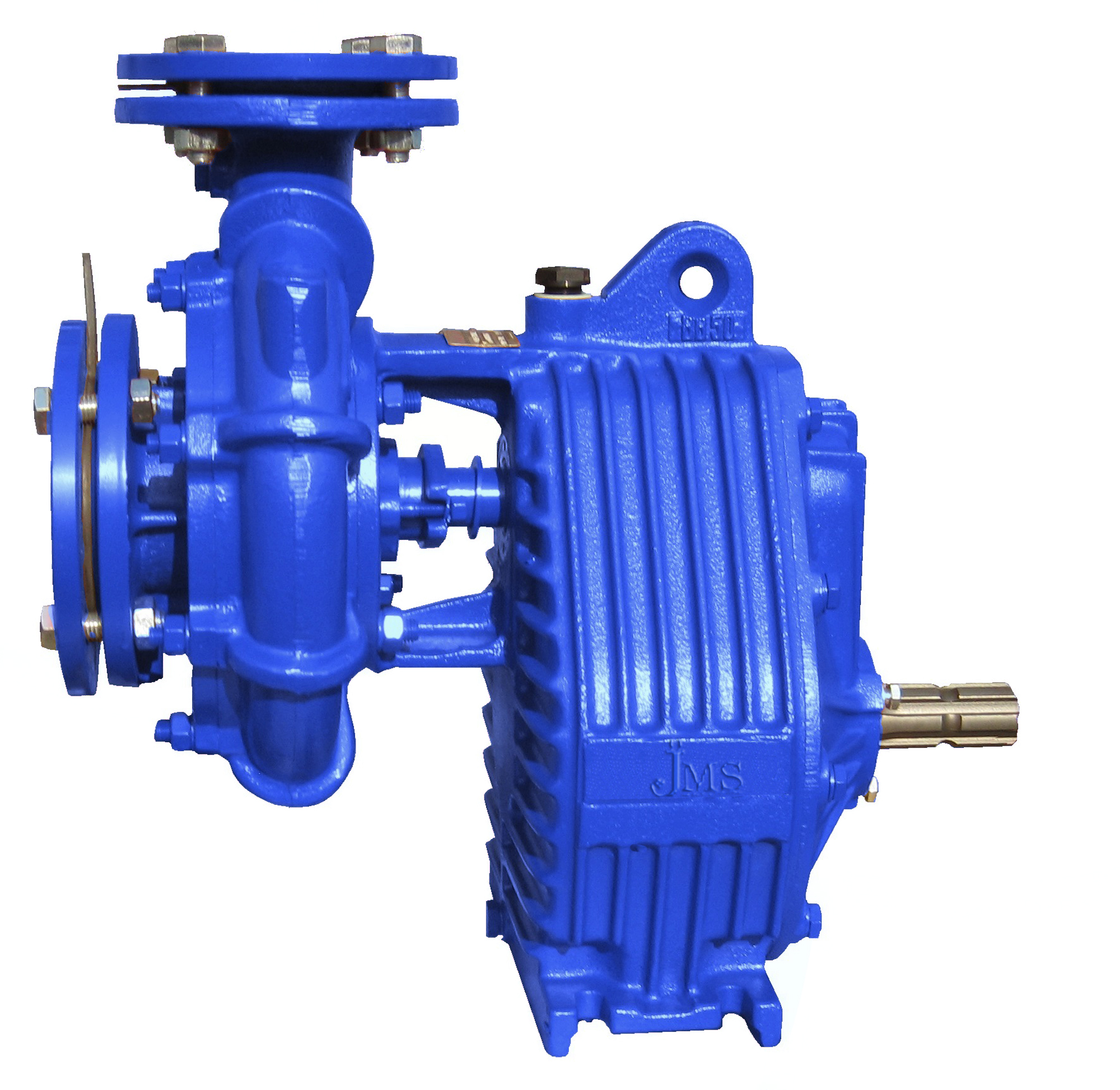

Description
Performance Curve
Type | Impeller | HP | R.P.M. PTO | Ratio | R.P.M. Pump | Capacity | |||||||
Ø (inch) | Opening (inch) | ||||||||||||
JCA 2-7907 | 7.1 | 0.3 | 20 | 540 | 1 : 7.90 | 4000 | Gal/Min | 60.8 | 79.3 | 105.7 | 158.5 | 211.3 | 264.2 |
Ft. | 259.2 | 252.6 | 246.1 | 229.7 | 213.3 | 187 | |||||||
Cv ass. | 8 | 9 | 10.1 | 12.4 | 14.2 | 16 |
Dimensions
Size (inch) | Weight (lbs.) | ||||||||||||||||||
A | B | C | D | E | F | G | H | I | L | M | N | O | P | Q | R | S | DNa | DNm | |
15 | 14 | 5 | 5 | 4 | 5 | 3 | 3 | 4 | 1 | 7 | 9 | 1 | 2 | 3 | 1 3/8 | 5 | 2 | 2 | 62 |
