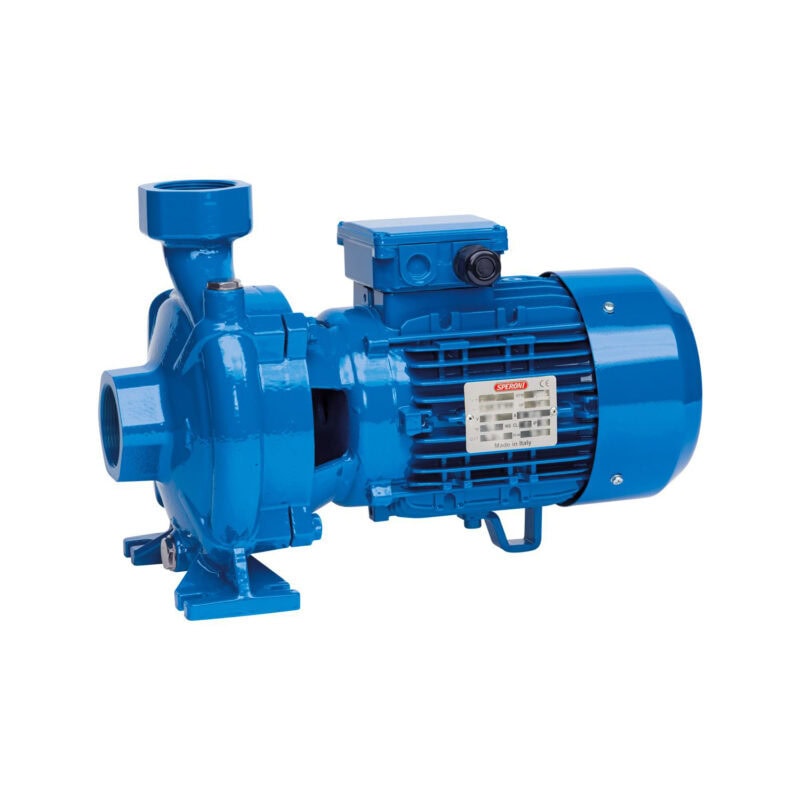

SPERONI 3HP Centrifugal Pump CFM 350 - 9510 GPH - 220V - 1PH

Description

The Speroni CFM 350 is a centrifugal pump with a cast iron impeller that is great for pumping clear water and other non aggressive liquids.

Made in Italy.

Features

Operating Conditions

Liquid temperature up to 95°F (for home use according to EN 60335-2-41)
Temperature max. liquid: 194°F (for other uses)
Ambient temperature up to 104°F
Total suction lift up to 23ft.

Motor

Two-Pole induction motor (n = 3450 min-1)
Insulation Class F
Protection IP 55

Materials

Pump body: Cast Iron
Motor Support: Cast Iron
Impeller: Cast Iron
Shaft with rotor: Stainless Steel AISI 304
Mechanical seal: Ceramic/Graphite/NBR

Applications

Centrifugal Monoblock with cast iron impeller. These machines are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. Used for a wide variety of applications in civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system and any other general service requiring transfer of clean liquids.

Technical Specifications

Model	CFM 350 BR
Brand	Speroni
Manufacturer’s Warranty	1 year Limited Warranty
Ship Weight	74.7
Port Size (in.)	3″ & 2″
Maximum Flow (GPH)	9510 GPH
Maximum Head (ft)	85ft
HP	3HP
Volts	220V – 60Hz
Suction Port (in.)	3″
Discharge Port (in.)	2″
Self-Priming	No
Dimensions L x W x H (in.)	13.7″ x 8.1″ x 10.1″
Product Weight (lbs.)	69.7lbs

Dimensions

Type	Dimensions												Dimensions			Weight
	A	B	C	D	E	F	G	H	H1	N	DNA	DNM	P	L	H	lb
CFM 350 BR	3.9″	2.2″	16.9″	8.7″	6.7″	0.6″	9.4″	12.2″	5.2″	2.8″	3″	2″	11.1″	19.3″	14.4″	69.7

Performance Curve

Performance Table

Type	Nominal Power		Input Power	Amperage	Capacity
220V – 60Hz	HP	KW	kW	1 x 220v	GPM	26.4	39.6	52.8	79.3	92.5	105.7	118.9	132	158.5
CFM 350 BR	3	2.2	3	16A	lt/1′	100	150	200	300	350	400	450	500	600
					Head (ft)	85.3′	83.7′	82′	77.1′	73.8′	70.5′	67.3′	62.3′	49.2′

Additional information

Self Priming	Non Self Priming
Pump Outlet	2"
Pump Inlet	3"
Horsepower	3
Material	Cast Iron
Phase	Single Phase
Voltage	220 volt
Brands	Speroni

Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.

They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.

5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....

Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!

This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.

This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!

I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.

I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
