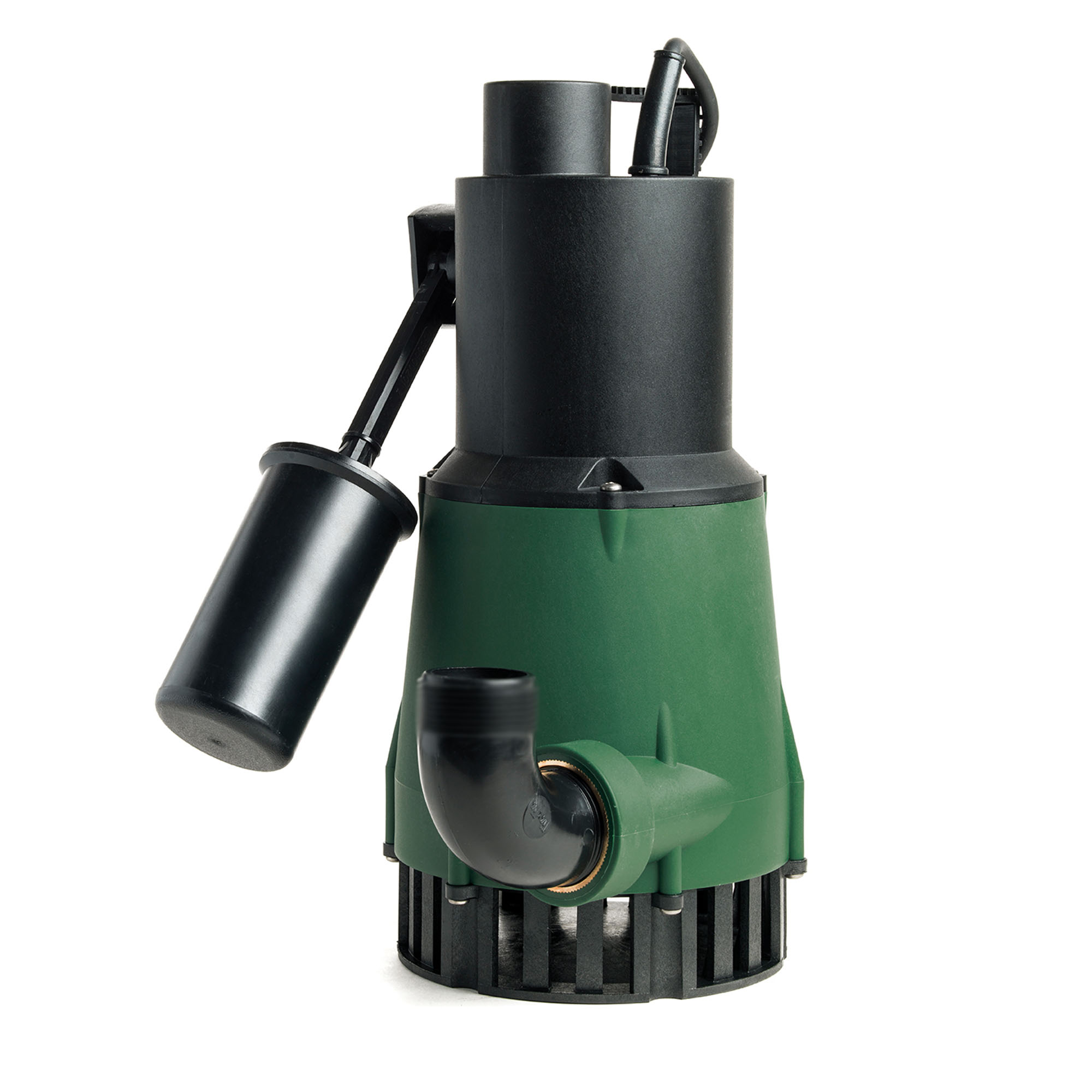

DAB NOVA Sump Pump Drainage Pump With Float Switch, 0.5HP, 3780GPH, 115V, Model 600MA

DAB NOVA Sump Pump Drainage Pump With Float Switch, 0.5HP, 3780GPH, 115V, Model 600MA

DAB NOVA Sump Pump Drainage Pump With Float Switch, 0.5HP, 3780GPH, 115V, Model 600MA

Nova is a submersible pump for draining clear water in domestic and residential environments. Completely redesigned in 2019 for the forty years of
sales, it is now even more durable, reliable and ergonomic in use. Nova can also be used for emptying tanks or cisterns.

CONSTRUCTION FEATURES OF THE PUMP
The pump body, the impeller and the suction grille are in technopolymer. Robust and reliable with triple sealing in oil bath. The pump allows the suction
of the liquid up to the minimum level of 0.4″ (10 mm) and the possibility of dry operation up to 1 minute.

CONSTRUCTION FEATURES OF THE MOTOR
Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings.
Thermal protection incorporated in all single-phase versions.
The motor is in AISI 304 stainless steel and the shaft is in AISI 431 steel for greater resistance to corrosive attacks.

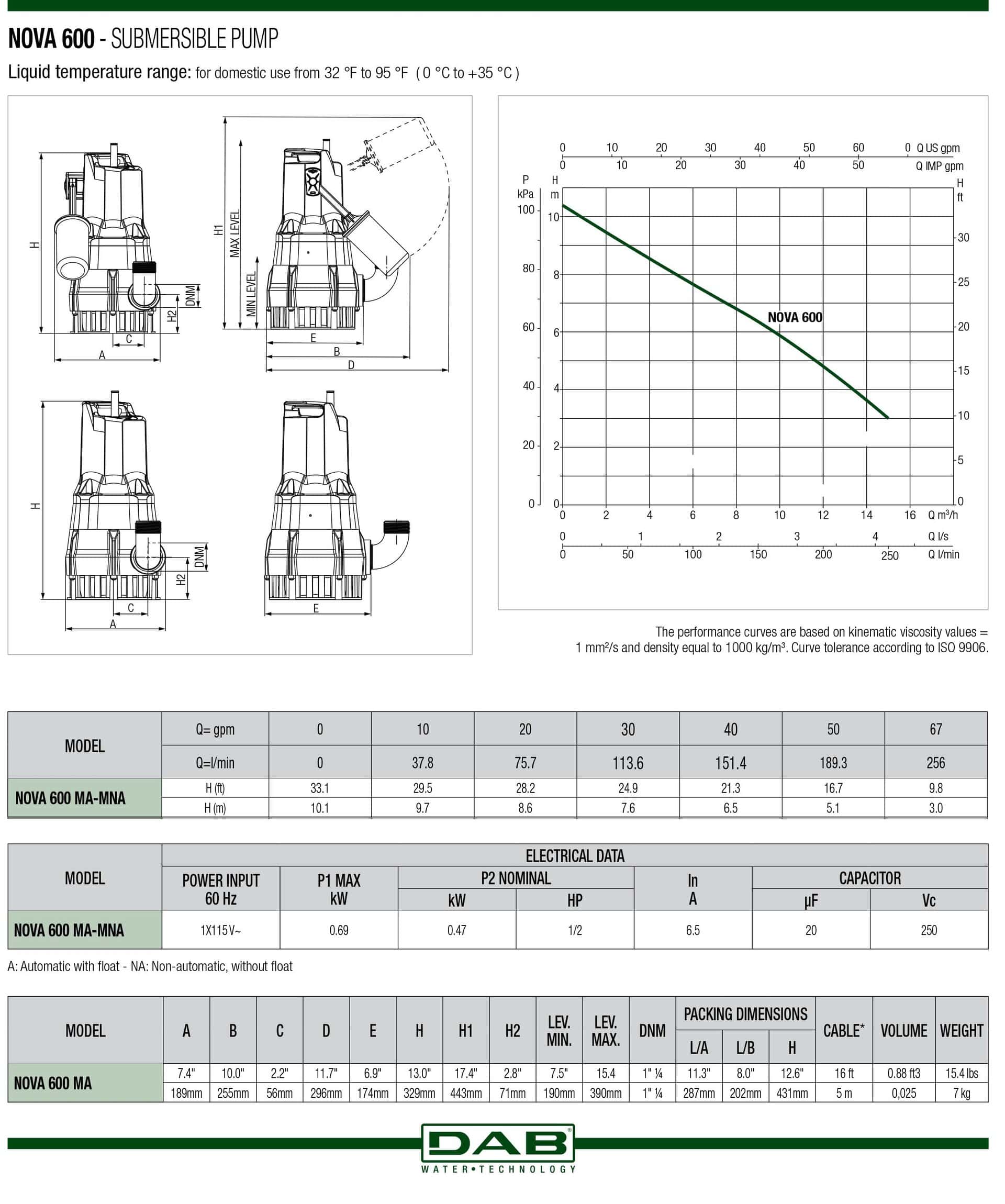

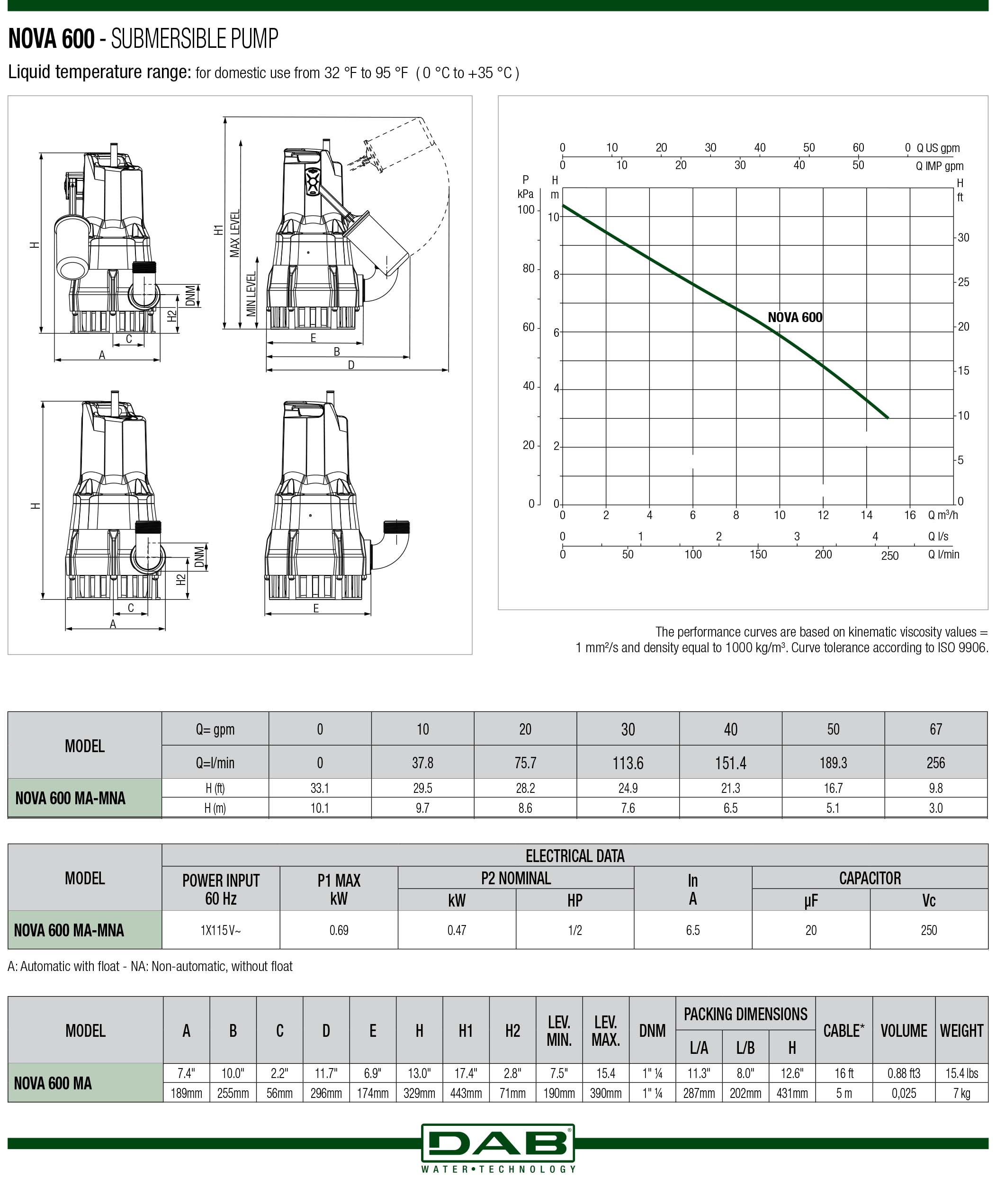

TECHNICAL DATA

Flow rate minimum and maximum: from 0.3 to 63 gpm ( 1 to 250 l/min )
Head up to: 35 ft ( 10.1 m )
Maximum immersion depth: 23 ft ( 7 m )
Type of pumped liquid: clear water or rainwater
Free passage: 0.2″ ( 5 mm ) or 0.4″ ( 10 mm ) depending on the model
Minimum intake level:
NOVA 600 1.18″ ( 30mm )
Supported liquid temperature min. and max.:
for domestic use from 32 °F to 95 °F ( 0 °C to +35 °C )
for other uses from 32 °F to 122 °F ( 0 °C to +50 °C )
Class of protection: IP 68
Motor insulation class: F
Impeller construction material(s): technopolimer
Single phase power input: 115v – 60 Hz
Possible type of installation: fixed or portable in a vertical position

Certification:

CSA-C22.2 No. 108-14 – Liquid Pumps
UL Std. No. 778 6th Ed. – Motor Operated Water Pumps



MADE IN ITALY

Estimated Delivery Time: 3 – 5 Business Days

------

ETA: 3 to 5 Business days

FREE SHIPPING

$162.79

Add to Cart

Cart

Categories

Category

Nova is a submersible pump for draining clear water in domestic and residential environments. Completely redesigned in 2019 for the forty years of
sales, it is now even more durable, reliable and ergonomic in use. Nova can also be used for emptying tanks or cisterns.

CONSTRUCTION FEATURES OF THE PUMP
The pump body, the impeller and the suction grille are in technopolymer. Robust and reliable with triple sealing in oil bath. The pump allows the suction
of the liquid up to the minimum level of 0.4″ (10 mm) and the possibility of dry operation up to 1 minute.

CONSTRUCTION FEATURES OF THE MOTOR
Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings.
Thermal protection incorporated in all single-phase versions.
The motor is in AISI 304 stainless steel and the shaft is in AISI 431 steel for greater resistance to corrosive attacks.

TECHNICAL DATA

Flow rate minimum and maximum: from 0.3 to 63 gpm ( 1 to 250 l/min )
Head up to: 35 ft ( 10.1 m )
Maximum immersion depth: 23 ft ( 7 m )
Type of pumped liquid: clear water or rainwater
Free passage: 0.2″ ( 5 mm ) or 0.4″ ( 10 mm ) depending on the model
Minimum intake level:
NOVA 600 1.18″ ( 30mm )
Supported liquid temperature min. and max.:
for domestic use from 32 °F to 95 °F ( 0 °C to +35 °C )
for other uses from 32 °F to 122 °F ( 0 °C to +50 °C )
Class of protection: IP 68
Motor insulation class: F
Impeller construction material(s): technopolimer
Single phase power input: 115v – 60 Hz
Possible type of installation: fixed or portable in a vertical position

Certification:

CSA-C22.2 No. 108-14 – Liquid Pumps
UL Std. No. 778 6th Ed. – Motor Operated Water Pumps
