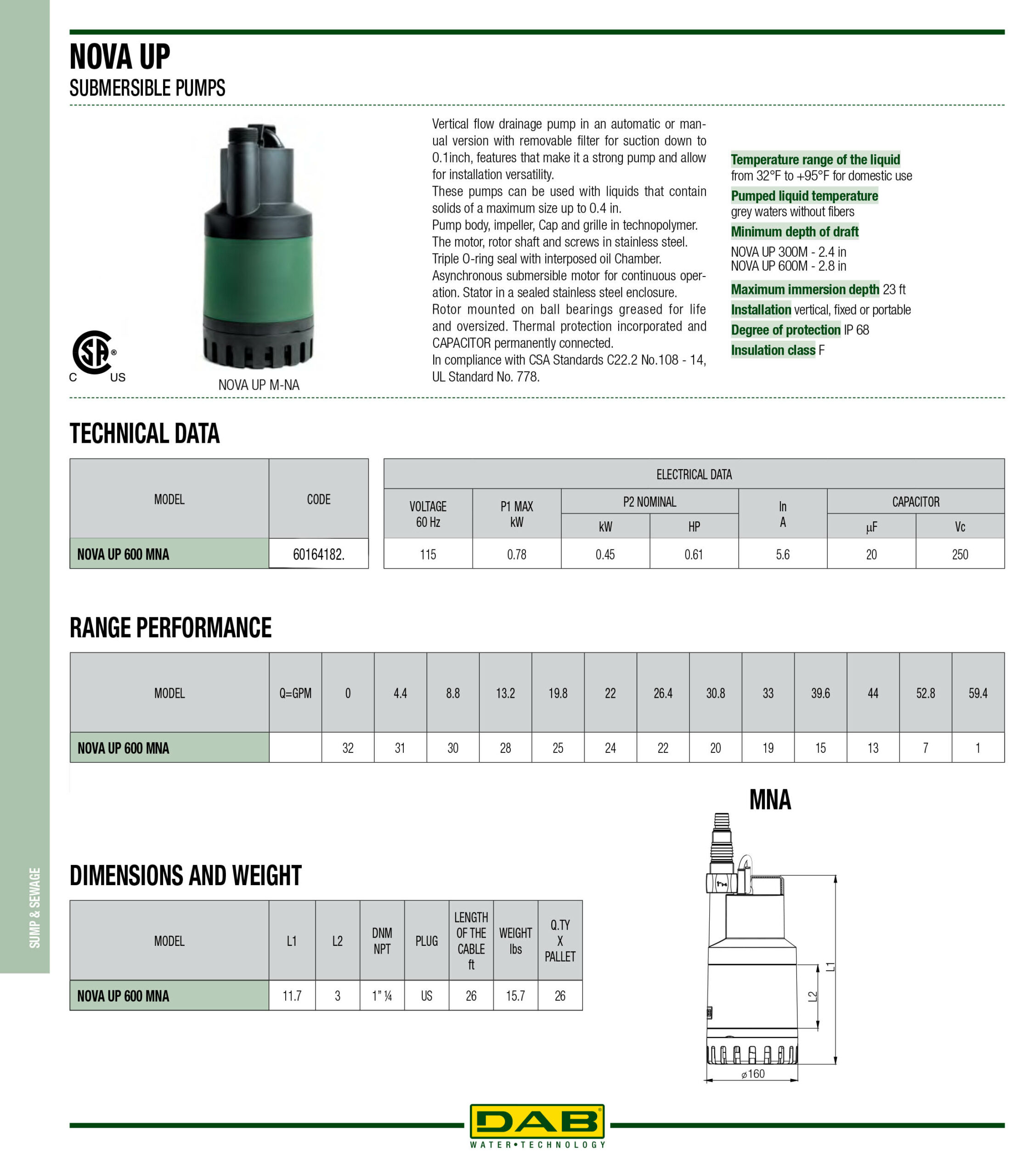

Description

Vertical flow drainage pump in an automatic or manual version with removable filter for suction down to 0.1inch, features that make it a strong pump and allow for installation versatility. These pumps can be used with liquids that contain solids of a maximum size up to 0.4 in.
Pump body, impeller, Cap and grille in technopolymer. The motor, rotor shaft and screws in stainless steel. Triple O-ring seal with interposed oil Chamber. Asynchronous submersible motor for continuous operation. Stator in a sealed stainless steel enclosure. Rotor mounted on ball bearings greased for life and oversized. Thermal protection incorporated and CAPACITOR permanently connected.

• Operating range: from 4.4 to 59 GPM with TDH up to 32 ft
• Temperature range of the liquid: from 32°F to +95°F for domestic use
• Pumped liquid temperature: grey waters without fibers
• Minimum depth of draft: NOVA UP 300M – 2.8 in
• Maximum immersion depth 23 ft
• Installation: vertical, fixed or portable
• Degree of protection: IP 68

APPLICATIONS
The vertical delivery draining submersible pump is suitable for domestic automatically operated fixed applications, for draining basements and garages
that are subject to flooding. Thanks to its compact, easy to handle shape, it may also be used as a portable pump for emergencies such as lifting water
from tanks or rivers, emptying swimming pools, fountains, excavations, and pedestrian subways. It is also ideal for gardening, and hobby applications
in general. This pump can be used with liquids containing solid particles of up to 10 mm in size. The level switch allows fixed installation, ensuring
automatic operation. With removable filter, it is capable of suction of up to a minimum of 2/3 mm (filter removed).

CONSTRUCTION FEATURES OF THE PUMP
Hydro resistant technopolymer pump body, cover, and suction grid.
Stainless steel motor, roto shaft, and bolts and screws.
Threefold seal with interposed rings with oil pre-chamber.

CONSTRUCTION FEATURES OF THE MOTOR
Submersible type continuous duty asynchronous motor.
Stator enclosed in airtight stainless steel casing, with an outer cover that protects the wiring and the capacitor. Rotor running on permanently lubricated
ball bearings, oversized to ensure low noise and durability. Built-in thermal-amperometric protection and permanently connected capacitor.

Certification:

CSA-C22.2 No. 108-14 – Liquid Pumps
UL Std. No. 778 6th Ed. – Motor Operated Water Pumps
