Unit Price Only
$9,090.99
Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here:
Note: For residential addresses additional delivery fees may apply
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
This series of electric centrifugal self-priming pumps has the characteristics to have the prime made by means of the emulsion air-liquid. The air of the suction piping is sucked inside the pump body by the depression created by the rotating impeller, therefore it emulsifies with the liquid contained into the pump body.
The centrifugal self-priming pumps series JCS have been designed to be flanged (or through a flexible coupling) to diesel or gasoline engines and electrical motors.
These groups are then suitable for heavy duty application with solids handling, for this series of pumps are the following:
The emulsion air-liquid is pushed into the delivery channel where the air, which is lighter, gets separated and gets out from the delivery piping; the liquid, which is heavier, returns into circulation. Once the pump gets rid of all the air from the suction piping, the pump starts and it works as a normal centrifugal pump, therefore the pump can work also with a mixture of air-liquid. There is a non-return valve fitted to the discharge side which enables a small quantity of liquid to be retained in the pump body thus allowing an automatic prime and suction lift to any application. This eliminates the need to prime the pump at each start up.
| Model | JDA100W-A34 |
| Brand | JMS |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Impeller Material | Cast Iron |
| Port Size (in.) | 3 |
| Max Flow (GPH) | 20820 |
| HP | 9.5 |
| Max. Temperature of Pumped liquid | 15°C to 70°C |

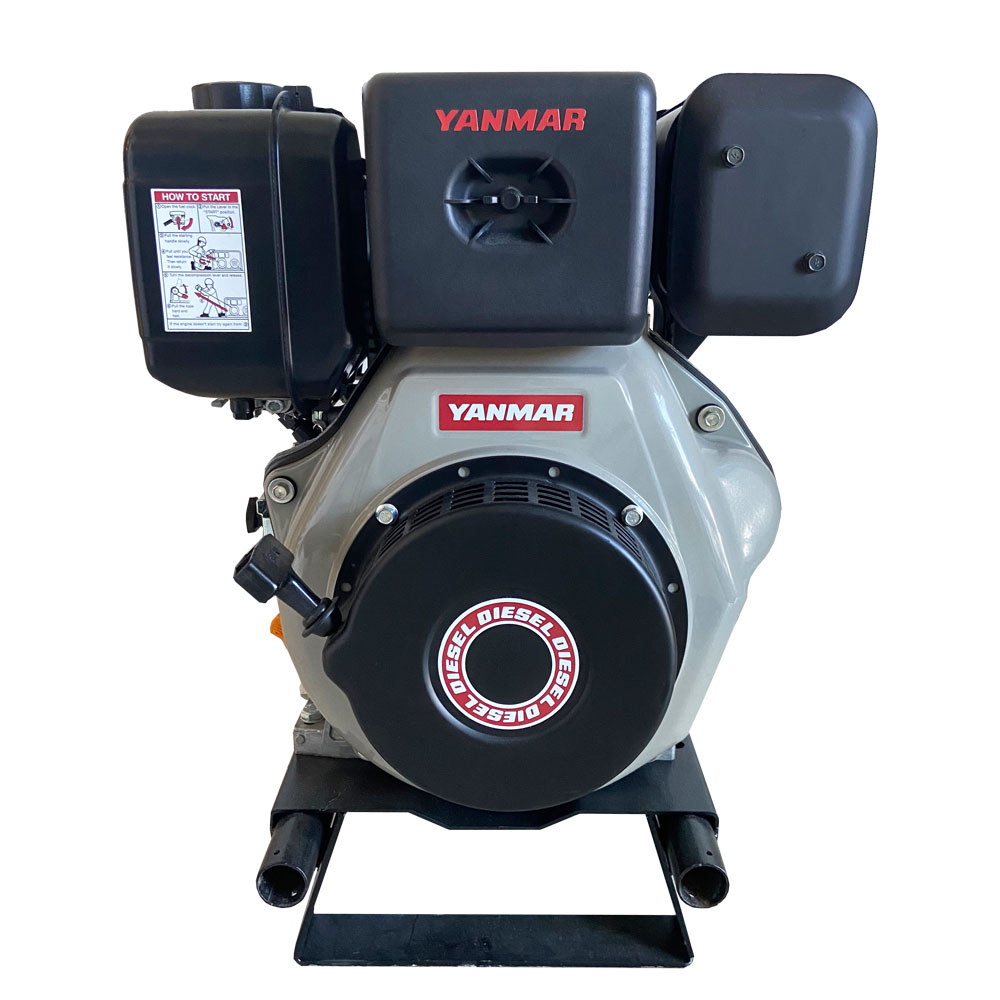

| Motor | YANMAR Diesel Engine L100W |
| Working Range | @ 70 ft. > 1620 GPH @ 37 ft. > 20820 GPH |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 30.45 |
| Suction Port (in.) | 3 |
| Discharge Port (in.) | 3 |
| Self-Priming | Yes |
| Start | Electric and Recoil |

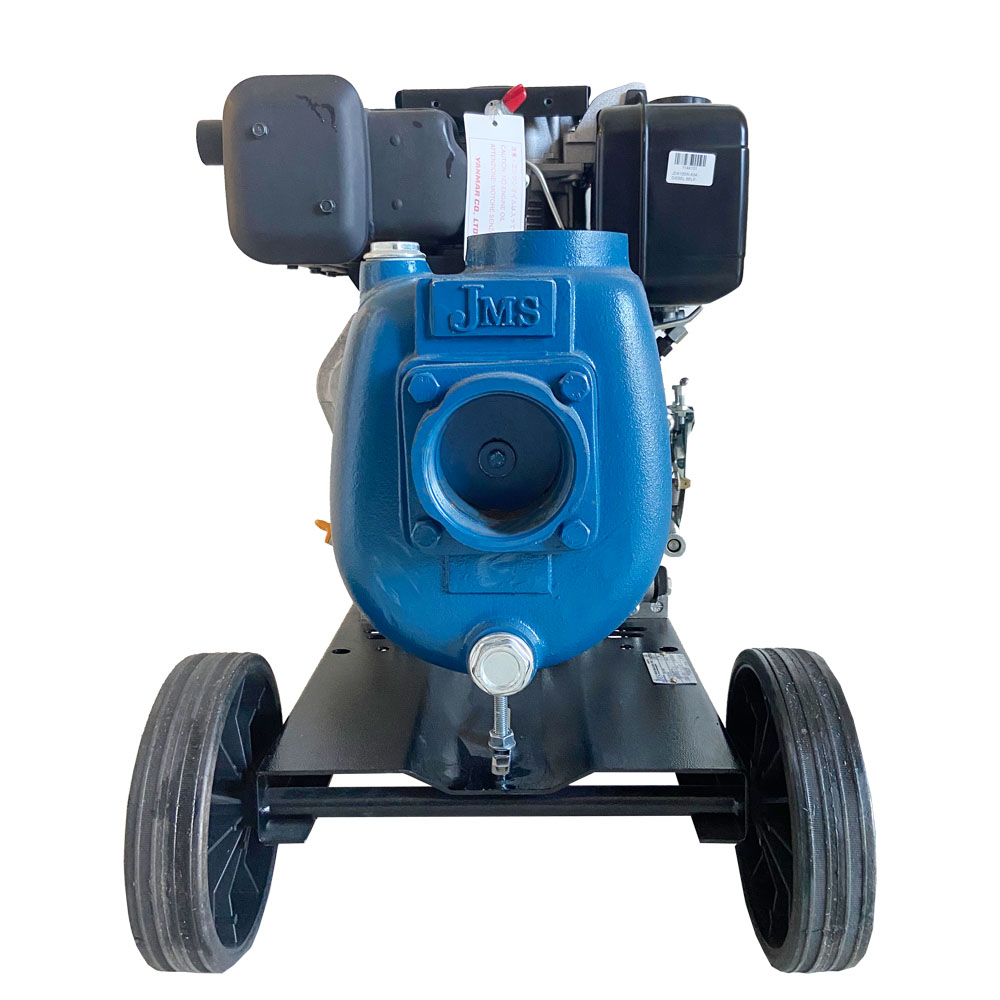

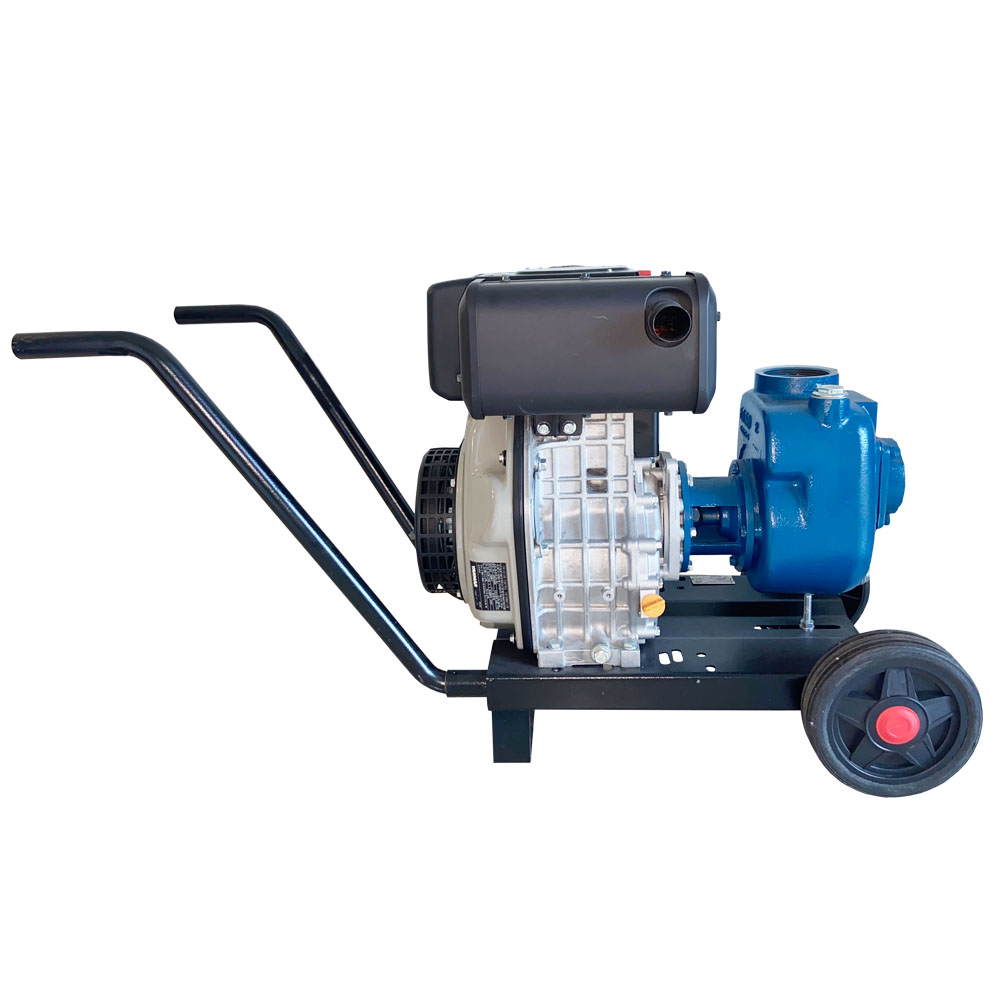

| Portable | Yes – 2 Wheels Trolley With Handles |
| Model | Solids Handling | Impeller Diameter | Number of Blades |
| Inch | Inch | ||
| JCS-S3A34S | Ø 1.3 | Ø 4.3 | 3 |
| Model | L100W | |||
|---|---|---|---|---|
| Type | 4 stroke, vertical cylinder, air-cooled diesel engine | |||
| ATS (After Treatment System) | – | |||
| No. of Cylinders | 1 | |||
| Bore x Stroke | inch | Φ 3.4 x 3 | ||
| Displacement | gallons | 0.1 | ||
| Continuous Rated Output | Engine Speed | rpm (min-1) | 3600 | |
| Output | Kw | 6.2 | ||
| Maximum Rated Output | Engine Speed | rpm (min-1) | 3600 | |
| Output / Eng. Speed | Kw | 6.8 | ||
| High Idling | rpm (min-1) | 3800±30 | ||
| Engine Weight (Dry) | Electric Starter | lb | 117.7 | |
| Recoil Start | lb | 106.7 | ||
| Cooling System | Forced air-cooling by flywheel fan | |||
| Lubricating System | Forced lubricating system | |||
| Starting System | Electric start / Recoil start | |||
| Dimension | Overall Length (L) | inch | 16.9 | |
| Overall Width (W) | inch | 18.6 | ||
| Overall Height (H) | inch | 19.4 | ||
| Lubricating System | Dispstick Upper Limit | gallons | 0.4 | |
| Dispstick Lower Limit | gallons | 0.3 | ||
| Fuel Oil Tank Capacity | gallons | 1.4 | ||
Upon installation always prime the pump body first before start up. Pump must be installed always in the horizontal position.
| Diesel/Gas | Diesel |
|---|---|
| Diesel/Gas - Ports | 3" |
