6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 650 ft.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 30°C with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.

Pump Spec

  • Max Head Pressure (ft): 509ft
  • Max Flow(Gpm): 200
  • Discharge: 3″
  • Volts: 230V – Three Phase
  • HP:20
  • Pump Material: Stainless Steel 304
  • Pump Model: A6X30CR17/09

Description

Technical Data

Model Pump A6X 30 CR 17/9
Motor 6CF7146D
Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
P2 kW 15
HP 20
Service Factor 1.15
Material Pump Stainless Steel 304
Motor Stainless Steel 304
Voltage – Phase 230V – Three Phase
Wire –
In A 54
Imax A 63.5
Istart A 213
PF (%) Allowable Load 0.86
Overload Factor 0.84
Efficiency (%) Allowable Load 79.1
Overload Factor 76.1
R.P.M 3450
Thrust N 15500
Capacitor UF No
Cable AWG 8
Length (ft.) 13.1
Production Country Taiwan

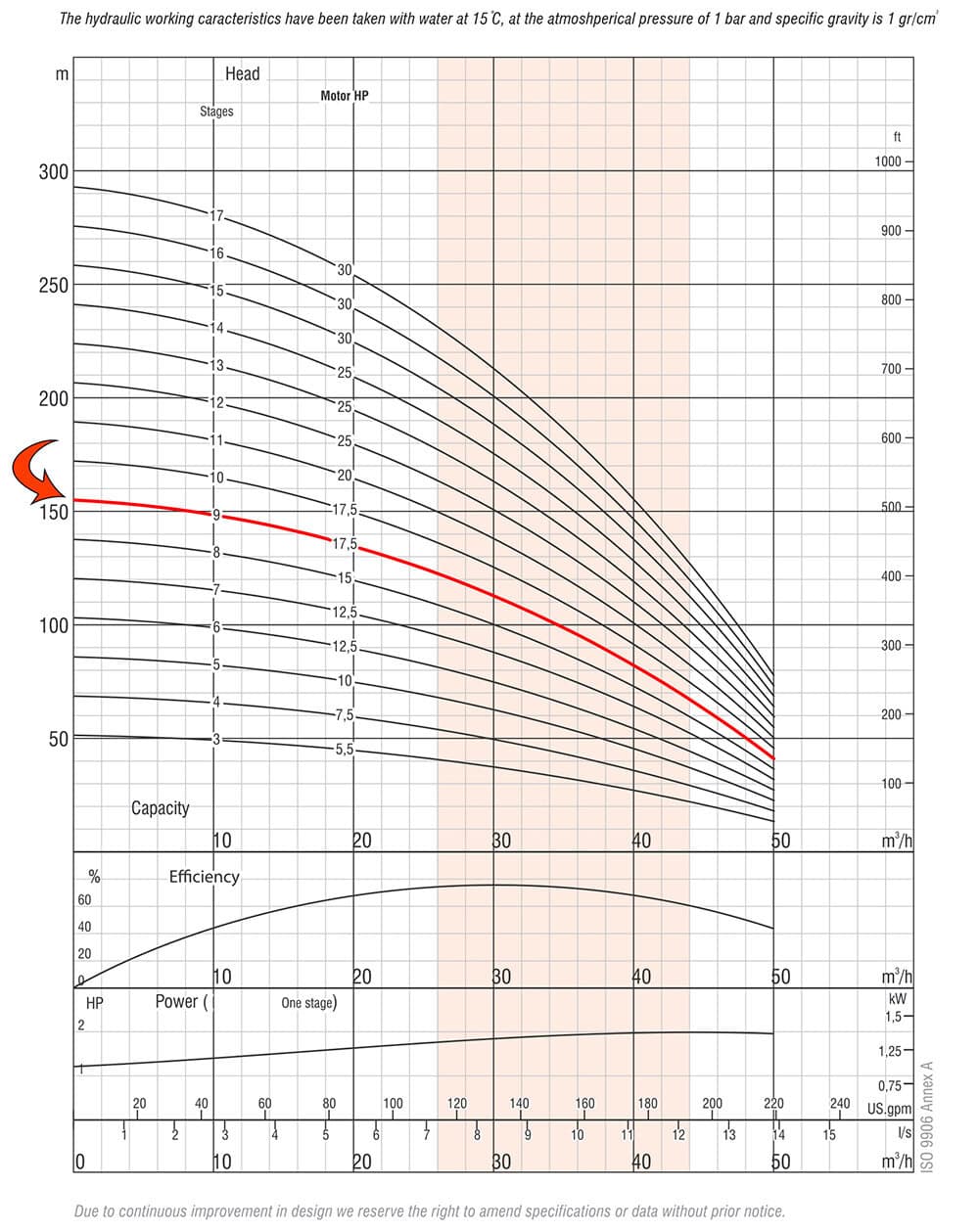

Performance Curves

Pump Model Stages Motor Q Capacity 3500RPM
kW HP Gal/H 0 3170 5283 6340 7397 8454 9510 10567 11888
A6X 30 CR 17/9 9 15 20 Head (ft.) 509 479 440 417 387 351 315 269 207

Dimensions and Weights

Outlet Motor Dia. Dimensions (inch) Weight (lb)
LP LM L ØP Pump Motor Pump + Motor
NPT 3″ 6″ 44″ 30.7″ 74.7″ 5″ 51 128.5 179.5

Part List and Materials

No. Part Name Materials
1 Suction Case Stainless Steel (AISI 304L)
2 Filter Stainless Steel (AISI 304)
3 Suction Case Wear Ring Bronze (ASTM B145-4A)
4 Pump Shaft with Coupling Stainless Steel (AISI 420)
5 Collet Stainless Steel
6 Impeller Wear Rings Stainless Steel (AISI 304)
7 Impeller Stainless Steel (AISI 304L)
8 Diffuser Stainless Steel (AISI 304L)
9 Rubber Bearing Rubber
10 Diffuser Wear Ring Rubber
11 Nut for Stop Ring Stainless Steel (AISI 304L)
12 Bearing Rubber
13 Shaft Stopper Bronze (ASTM B145-4A)
14 Valve Stainless Steel (AISI 304)
15 Discharge Case Stainless Steel (AISI 304)
16 Tie Rod Stainless Steel (AISI 304L)
17 Cable Guard Stainless Steel (AISI 304)
18 Tie Rod Nut Stainless Steel (AISI 303)
19 Name Plate Stainless Steel (AISI 304)
