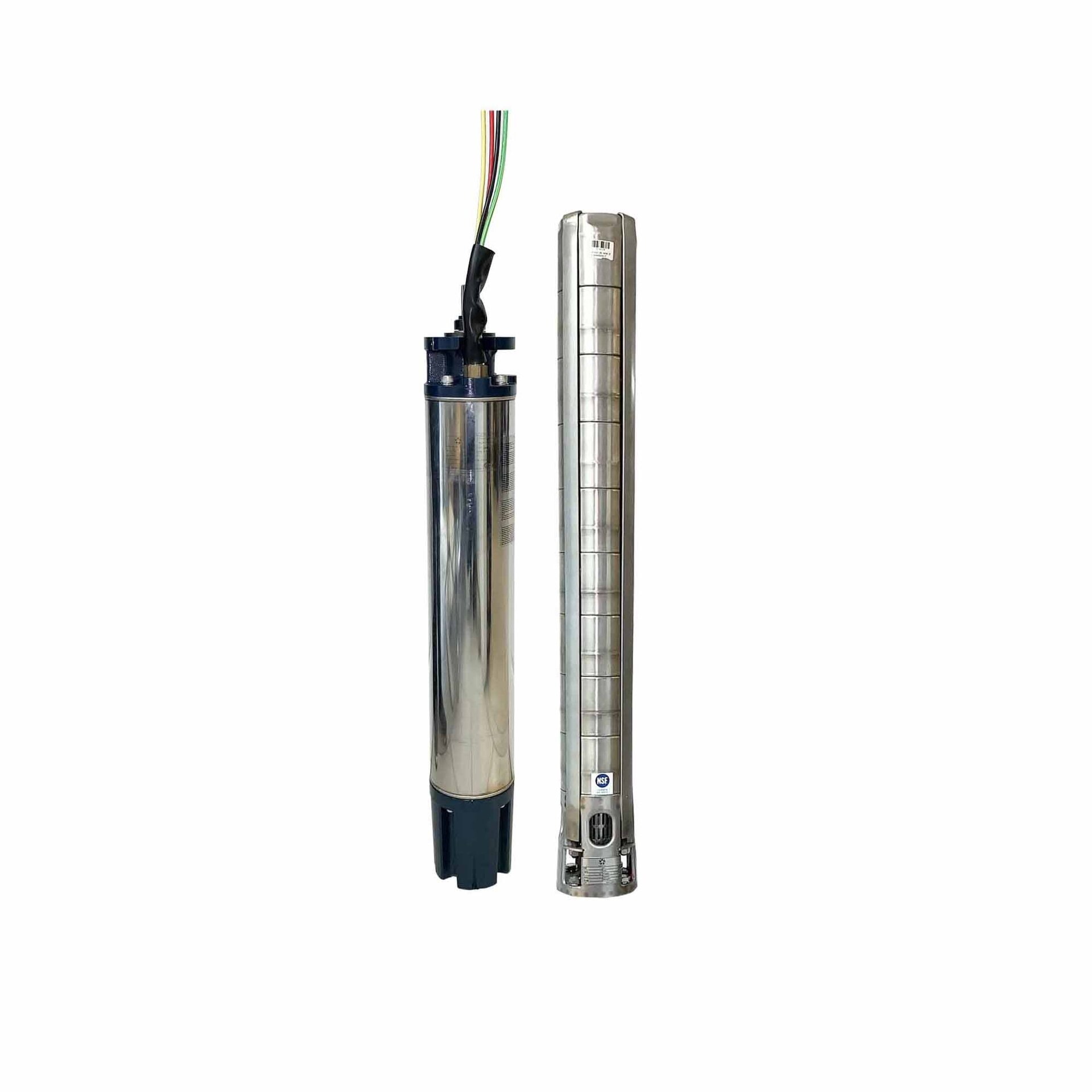

Gol Pumps 6in. Stainless steel Deep Well Submersible Pump 3PH, 230V,17 400 GPH, 20 HP, Model# A6X46CR17/05

5/5
Gol Pumps 6in. Stainless steel Deep Well Submersible Pump 3PH, 230V,17 400 GPH, 20 HP, Model# A6X46CR17/05

Christmas Deal

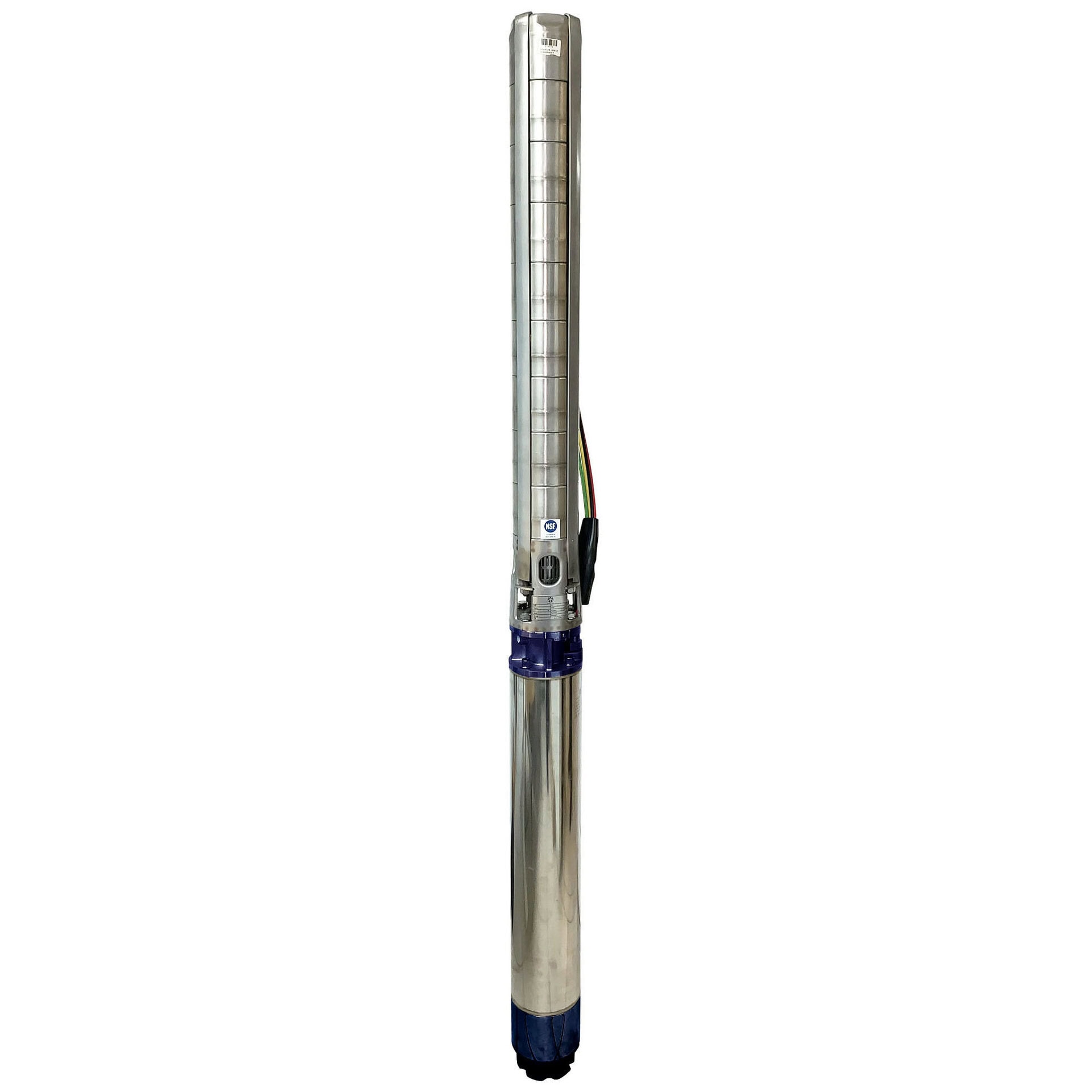

Gol Pumps 6in. Stainless steel Deep Well Submersible Pump 3PH, 230V,17 400 GPH, 20 HP, Model# A6X46CR17/05 - Image 2
SKU: 7060335 Categories: , ,
SKU 7060335 Categories , ,
SKU: 7060335 Categories: , ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Gol Pumps 6in. Stainless steel Deep Well Submersible Pump 3PH, 230V,17 400 GPH, 20 HP, Model# A6X46CR17/05

5/5

 Unit Price Only

Original price was: $4,019.99.Current price is: $3,416.99.

Free Shipping

Note: This is a heavy item and Forklift or Loading Dock is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Request Lift Gate Service
Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Scan or click to get the app!

Cart

Advertisement

Product Data >>>

6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 650 ft.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 30°C with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.

Pump Spec

  • Max Head Pressure (ft): 282ft
  • Max Flow(Gpm): 290
  • Discharge: 4″
  • Volts: 230V – Three Phase
  • HP: 20
  • Pump Material: Stainless Steel 304
  • Pump Model: A6X46CR17/05

Description

Technical Data

Model Pump A6X 46 CR 17/5
Motor 6CF7146D
Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
P2 kW 15
HP 20
Service Factor 1.15
Material Pump Stainless Steel 304
Motor Cast Iron
Voltage – Phase 230V – Three Phase
Wire –
In A 54
Imax A 63.5
Istart A 213
PF (%) Allowable Load 0.86
Overload Factor 0.84
Efficiency (%) Allowable Load 79.1
Overload Factor 76.1
R.P.M 3450
Thrust N 15500
Capacitor UF No
Cable AWG 8
Length (ft.) 13.1
Production Country Taiwan

Performance Curves

Pump Model Stages Motor Q Capacity 3500RPM
kW HP Gal/H 0 5283 9246 10567 11888 13209 14529 15850 17171
A6X 46 CR 17/5 5 15 20 Head (ft.) 351 325 279 262 243 226 210 194 174

Dimensions and Weights

Outlet Motor Dia. Dimensions (inch) Weight (lb)
LP LM L ØP Pump Motor Pump + Motor
NPT 4″ 6″ 33″ 31″ 64″ 5″ 40 128.5 168.5

Part List and Materials

No. Part Name Materials
1 Suction Case Stainless Steel (AISI 304L)
2 Filter Stainless Steel (AISI 304)
3 Suction Case Wear Ring Bronze (ASTM B145-4A)
4 Pump Shaft with Coupling Stainless Steel (AISI 420)
5 Collet Stainless Steel
6 Impeller Wear Rings Stainless Steel (AISI 304)
7 Impeller Stainless Steel (AISI 304L)
8 Diffuser Stainless Steel (AISI 304L)
9 Rubber Bearing Rubber
10 Diffuser Wear Ring Rubber
11 Nut for Stop Ring Stainless Steel (AISI 304L)
12 Bearing Rubber
13 Shaft Stopper Bronze (ASTM B145-4A)
14 Valve Stainless Steel (AISI 304)
15 Discharge Case Stainless Steel (AISI 304)
16 Tie Rod Stainless Steel (AISI 304L)
17 Cable Guard Stainless Steel (AISI 304)
18 Tie Rod Nut Stainless Steel (AISI 303)
19 Name Plate Stainless Steel (AISI 304)
