Gol Pumps 7in. Stainless steel Deep Well Submersible Pump 3PH, 460V,31 800 GPH, 25 HP, Model# A7X95CR25/02

5/5
FREE SHIPPING
SKU: 7060358 Categories: , ,
SKU 7060358 Categories , ,
SKU: 7060358 Categories: , ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Gol Pumps 7in. Stainless steel Deep Well Submersible Pump 3PH, 460V,31 800 GPH, 25 HP, Model# A7X95CR25/02

5/5

 Unit Price Only

$5,384.99

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Request Lift Gate Service
Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Scan or click to get the app!

Cart

Advertisement

Product Data >>>

7″ Deep Well Submersible Pump

Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring
  • Pressure equalizing diaphragm
  • Removable lead connector
  • Control boxes available for single phase motor Standard NEMA mounting dimensions

Technical specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap. Max. Immersion depth: 300m
  • Protection: IP68
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F
  • Rated ambient temperature: 30°C with min.
  • Cooling flow 0.08 m/s of water flow speed
  • Standard installation position: vertical and horizontal

PUMP SPEC

  • Max Head Pressure (ft): 236ft
  • Max Flow(Gpm): 530
  • Discharge: 5″
  • Volts: 460V – Three Phase
  • HP:25
  • Pump Material: Stainless Steel 304
  • Pump Model: A7X95CR25/02



 Made in Taiwan

Description

7″ Deep Well Submersible Pump

Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
Ship Weight
Service Factor 1.15
Material Cast Iron
Volts 460 – Three Phase
In(A)

Imax

Istart

 28.6

31.7

152.0
HP 25
KW 18.5
R.P.M 3450
Power factor% (Allowable load)

Power factor% (Overload Factor)

 0.80

0.83
Efficiency%(Allowable load)

Efficiency%(Overload Factor)

 82.0

82.1
Production Country Taiwan

Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

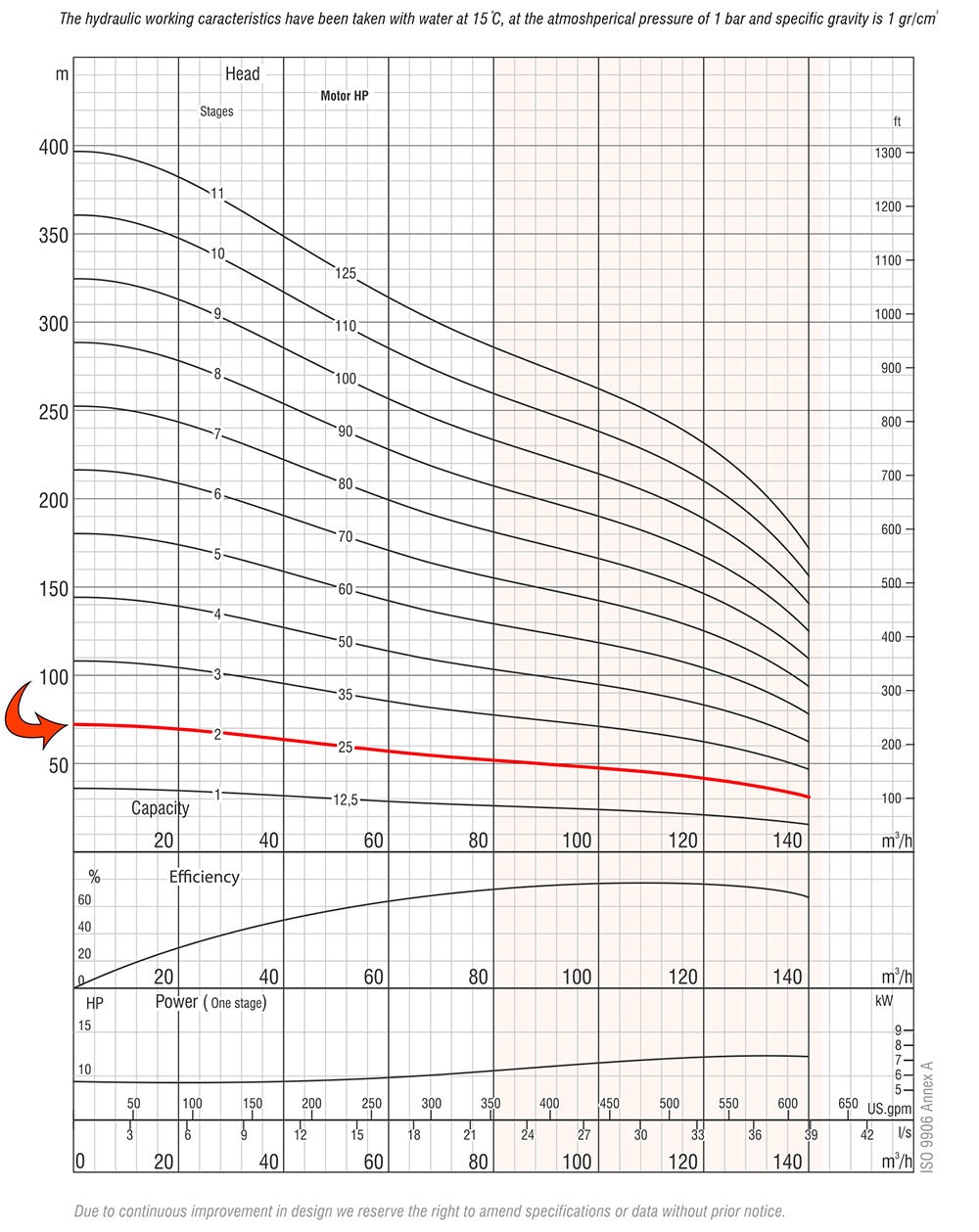

Performance Curves

Selection Chart

Pump type

Stages

Power

Current

(A)

gal/h

I/s

0

 5283 10567 18492 23775 26417 29059 31701

34342

KW

HP

0.00

 5.56 11.11 19.44 25.00 27.78 30.56 33.33

36.11
A7X95CR25/02 2 18.5 25 34.5 Head(ft) 236 207 177 171 164 157 148 138 125

Dimensions and weights

Pump type

Stages

Power

Dimensions

Weight(lb)

KW

 HP

L

 LM LP M P

Motor

Pump

Total
A7X95CR25/02 2 18.5 25 67 40 28 6 5 168 66 234

Product advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring
  • Pressure equalizing diaphragm
  • Removable lead connector
  • Control boxes available for single phase motor Standard NEMA mounting dimensions

Technical specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap. Max. Immersion depth: 300m
  • Protection: IP68
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F
  • Rated ambient temperature: 30°C with min.
  • Cooling flow 0.08 m/s of water flow speed
  • Standard installation position: vertical and horizontal

PUMP SPEC

  • Max Head Pressure (ft): 236ft
  • Max Flow(Gpm): 530
  • Discharge: 5″
  • Volts: 460V – Three Phase
  • HP:25
  • Pump Material: Stainless Steel 304
  • Pump Model: A7X95CR25/02

Additional information

Brands

AC voltage

,

Horse power Ac

Phase

Submersible Pump Size

Material Submersible pump

Pump Outlet
