Gol Pumps Close Coupled In-Line Centrifugal Pump, 10080GPH, 15HP, 460V, 3P, Model EG65-4032-11004

5/5
Gol Pumps Close Coupled In-Line Centrifugal Pump
Black Friday Deal
SKU: 3314154 Categories: , , , , , , , Tags: , ,
SKU 3314154 Categories , , , , , , , Tags , ,
SKU: 3314154 Categories: , , , , , , , Tags: , ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Gol Pumps Close Coupled In-Line Centrifugal Pump, 10080GPH, 15HP, 460V, 3P, Model EG65-4032-11004

5/5

 Unit Price Only

Original price was: $4,125.52.Current price is: $3,712.97.

5 - 7 Business days - Free Shipping

Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Request Lift Gate Service
Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Scan or click to get the app!

Cart

Advertisement

Product Data >>>

Description & Features

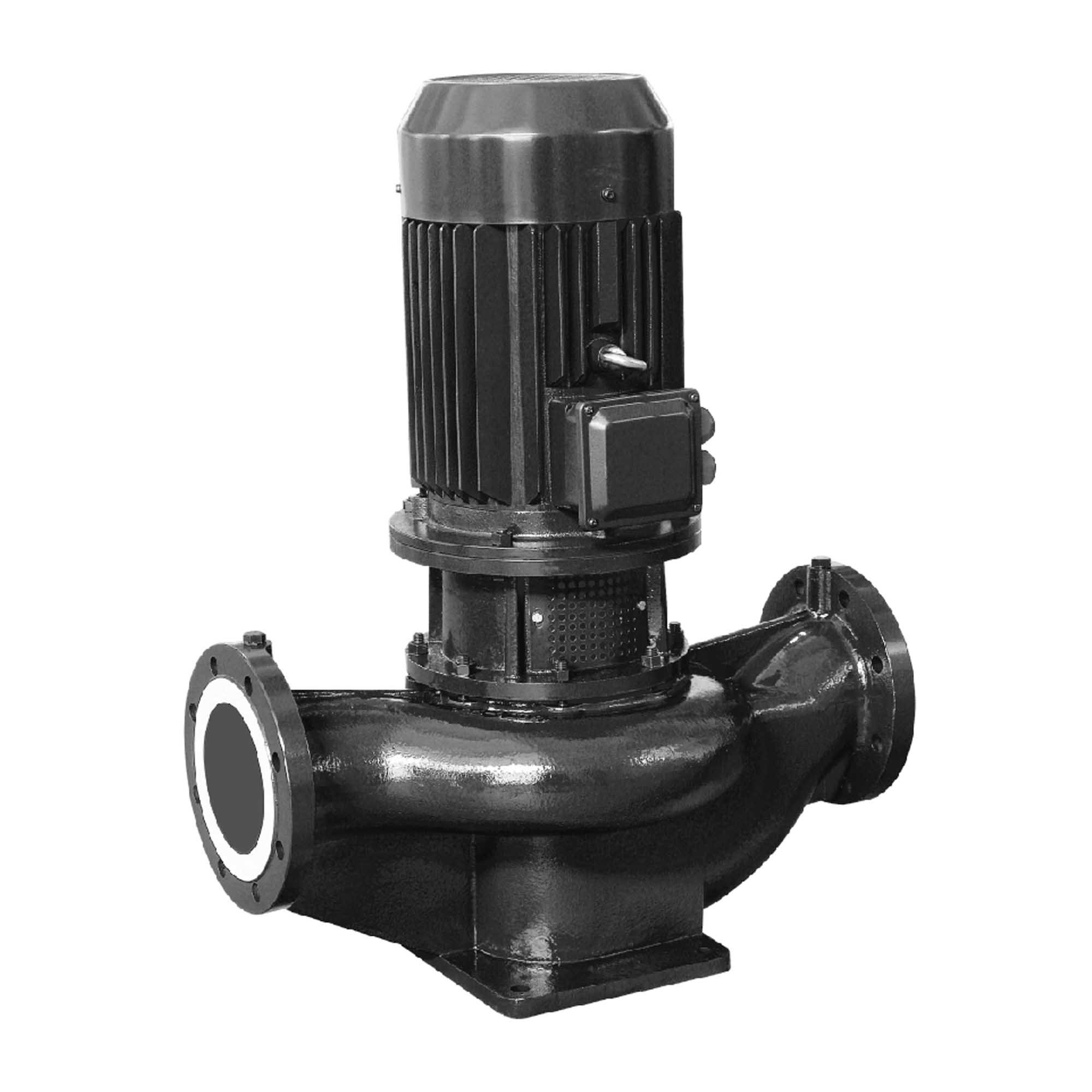

EG series are vertical in-line pumps. The biggest feature is vertical structure which sharply reduces installation space. Motor shaft is plunged into pump shaft to ensure alignment of pump and motor. This series pump adopts IEC standard motor and pump head can be assembled separately.

Application:

  • Cold and hot water circulation pump
  • Municipal water supply
  • Hvac and cooling tower
  • Booster pump
  • Pool and fountain water transfer

Estimated Delivery Time: 3 – 5 Business Days

Description

Description & Features

EG series are vertical in-line pumps. The biggest feature is vertical structure which sharply reduces installation space. Motor shaft is plunged into pump shaft to ensure alignment of pump and motor. This series pump adopts IEC standard motor and pump head can be assembled separately.

EG Performance Table – EG65-4032-11004 – 60 Hz

Head Flow Speed Power

Voltage

Phase

Impeller Dia.

ft

 m GPM m³/h L/S rpm KW HP

V

~

mm

inch

179.2

 55 57.17 11 4

1750



 11 15 460 3 329 12.9

170.1

 52

95.28

 18

6.03
161.5 49.2 114.34 22 7.24

Vertical IN-Line Pumps Performance Curves EG Series


Application:

  • Cold and hot water circulation pump
  • Municipal water supply
  • Hvac and cooling tower
  • Booster pump
  • Pool and fountain water transfer

Material Code: CBSM

C: Cast Iron,  B: Brass , S: ASTM 420 , M: Mechanical Seal

Design & structure



Design

Performance referring to BS EN 733/DIN24255 standard
Structure

Vertical, Single-stage, single- suction, volute, casing, in-line, close-coupled

Ports(inch)

2.5
Motor

IEC standard motor
Max GPH (1750 RPM)

10080
Max head (1750 RPM)

180 ft



Material

Part Standard material
Casing Cast iron
Impeller Brass
Shaft A s tm 420
Shaft seal Mechanical seal

EG Series Installation Dimensions 60 HZ

(inch) (inch)

Weight
H1 L1 F G L AD B1 B2 N2XM2 N1XM1 S1 DN D K N-D B

lbs
5.5 9 11.5 23 29.3 10 8 8 7 x 8 8 x 9 0.55 2.5 7.3 5.7 0.3-φ0.7 1

456



(mm) (mm)

Weight
H1 L1 F G L AD B1 B2 N2XM2 N1XM1 S1 DN D K N-D B

Kg
138 231 290 580 743 255 200 200 170 x 200 200 x 230 14 65 185 145 8-φ18 20

207





Additional information

Weight 218 lbs
Brands

category ac pumps

AC voltage

,

Horse power Ac

Phase

Self Priming

Pump Inlet and Outlet_Multistage
