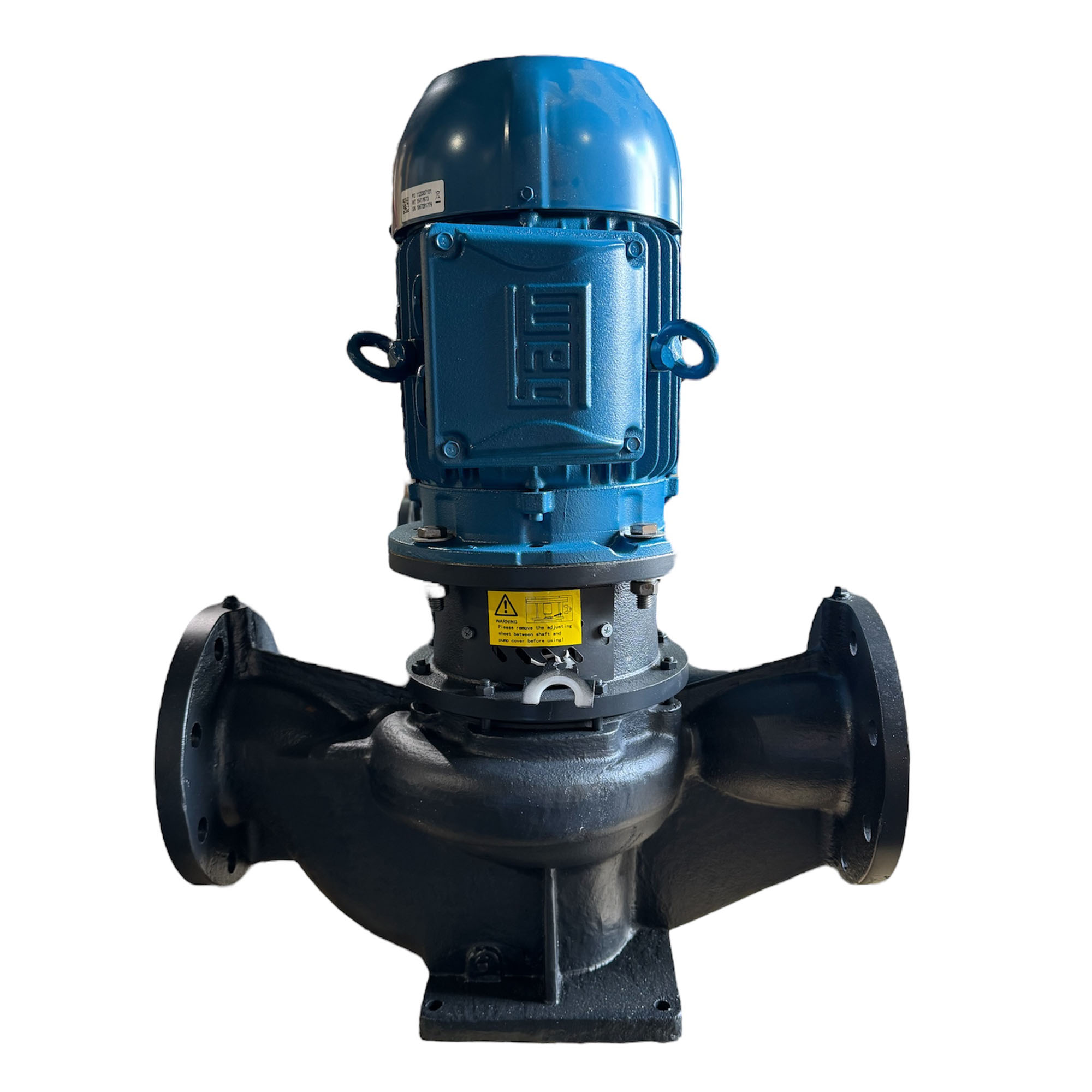

Gol Pumps Close Coupled In-Line Centrifugal Pump, 34200GPH, 5.5HP, 230/460V, 1710RPM, Model EGM100-8016-04004

5/5
Gol Pumps Close Coupled In-Line Centrifugal Pump
Christmas Deal
SKU: Please choose an option Categories: , , , , , , , Tags: , ,
SKU N/A Categories , , , , , , , Tags , ,
SKU: N/A Categories: , , , , , , , Tags: , ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Gol Pumps Close Coupled In-Line Centrifugal Pump, 34200GPH, 5.5HP, 230/460V, 1710RPM, Model EGM100-8016-04004

5/5

 Unit Price Only

$2,363.99 – $2,997.24

Free Shipping

Note: This is a heavy item and Forklift or Loading Dock is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Request Lift Gate Service
Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Scan or click to get the app!

Cart

Advertisement

Product Data >>>

EGM series vertical inline pump offer vertical and close coupled design for space saving to meet the needs of users in a variety of cold and hot water circulation, civil and general industrial. They are driven by NEMA standard motor and less space-required for installation.

Application

  • Heating, Ventilation and Air-Conditioning
  • Fire Protection and Fire Fighting
  • Water Circulation
  • Liquid Transfer
  • Irrigation
  • Cooling
  • Booster Service

Description

Technical Data

Performance Curve

Model Capacity Head Speed Motor Voltage Phase Impeller Diam. Eff. (NPSH)r
m³/h l/s gpm m ft r/min hp v mm inch % ft
EGM100-8016-04004 51.8 14.4 228.2 12.5 41 1710 5.5 230/460 1/3 170 6.7 69 9.2
86.4 24 380.4 11.1 36 80 9.8
103.7 28.8 456.5 9.7 32 77.5 14.4

Dimensions (inch)

Flange: ANSI Class 125
h1 L1 F G L AD B1 B2 n2 x m2 n1 x m1 S1 DN D K n-d b Weight (lb)
7.4 6.5 10.2 21.3 19.8 7.5 6.6 5.4 6.7 x 7.9 7.9 x 9.1 0.5 4 9.1 7.5 8 – Ø0.8 – 231

Parts List

Additional information

Weight 235 lbs
Brands

category ac pumps

Horse power Ac

AC voltage

, , ,

Phase

,

Self Priming

Pump Inlet and Outlet_Multistage
