Technical Data
Technical Data

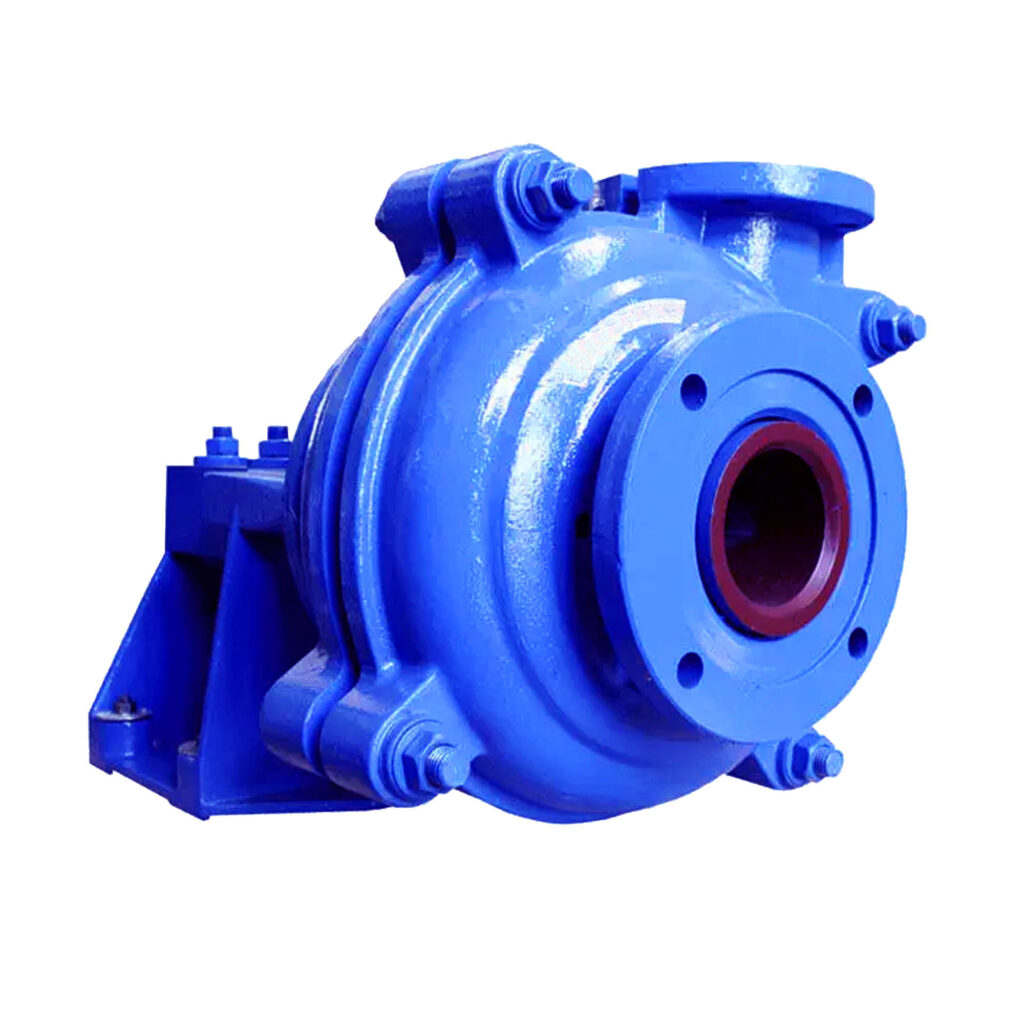

Brand | Gol Pumps | |
Model | GAZ200-1-A60 | |
Material | Cast Iron | |
Rated Output | HP | 335 |
Rotary Speed | RPM | 1150 |
Shaft Seal | Expeller & Gland Packing | |
Inlet | inch | 10 |
Outlet | inch | 8 |
Performance Curve
Dimensions (inch)
B | C | D | E | F | G | H | I | J | K | L | M | N | O | P |
12 | 24 | 12.6 | 62.7 | 3.1 | 12.2 | 7.9 | 14.2 | 24.8 | 19.7 | 25.9 | 15 | 15.3 | 13.8 | 9.8 |
