GPD-332F Chemical Pump - 3HP, 230V , 3P, 7,620GPH - PVDF

GPD-332F Chemical Pump - 3HP, 230V , 3P, 7,620GPH - PVDF

SKU: 3846105 Categories: , , ,

GPD-332F Chemical Pump - 3HP, 230V , 3P, 7,620GPH - PVDF

Download Data Sheet PDF | Download GPD-Manual

PVDF: Poly Vinylidene Fluoride

  • Equipped with Teflon Bellow Seal
  •  The weight of motor are not included.
  • Especially design for electroplating industries.
  • The motors of PUPL-F need to be ordered separately.

Material:

Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.

Features

Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids

Self-priming ability

Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate

Teflon Bellow Seal

Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.

Estimated Delivery: 3 – 5 Business Days

------

ETA: 3 to 5 Business days

FREE SHIPPING

$5,399.39

Add to Cart

Cart

Categories

Category

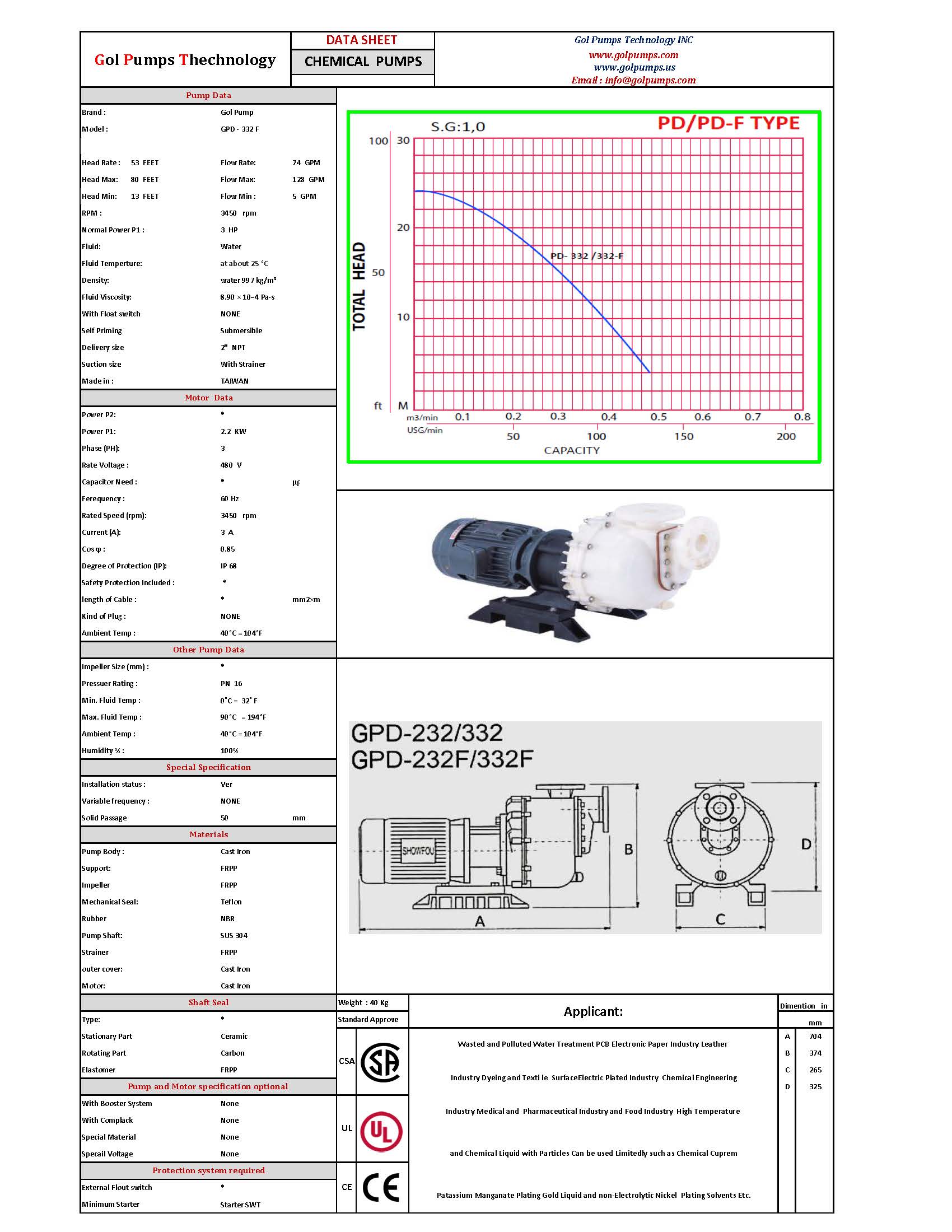

GPD-332F Chemical Pump Data Sheet

Download Data Sheet PDF | Download GPD-Manual

PVDF: Poly Vinylidene Fluoride

TYPE S.G MOTOR PUMP
FRPP PVDF POWER PHASE VOLT PUMP OUTLET DISCHARGE GPH MAX.HEAD MAX.FLOW
HP KW PH V INCH FT GAL/MIN
GPD-332F 1 3 2.2 3 230V-3PH 2 7 620 79 127

More Spec.

WEIGHT HEIGHT WIDTH LENGTH
LBS INCH INCH INCH
88 15 10 28
  • Equipped with Teflon Bellow Seal
  •  The weight of motor are not included.
  • Especially design for electroplating industries.
  • The motors of PUPL-F need to be ordered separately.

Material:

Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.

Features

Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids

Self-priming ability

Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate

Teflon Bellow Seal

Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.

Structure:

GPD-332F Chemical Pump Structure

Performance Curve:

GPD-332F Chemical Pump Performance Curve

Dimensions  (GPD-332F):

GPD-332F Chemical Pump - Dimensions





GPD Chemical Pump, Self-Priming Pumps, Poly Vinylidene Fluoride
