GPD-532 Chemical Pump - 5HP, 230V , 3P, 9,480GPH - FRPP

GPD-532 Chemical Pump - 5HP, 230V , 3P, 9,480GPH - FRPP

SKU: 3846106 Categories: , , ,

GPD-532 Chemical Pump - 5HP, 230V , 3P, 9,480GPH - FRPP

Download Data Sheet PDF | Download GPD-Manual

FRPP: Fiber Reinforced Polypropylene

  • Equipped with Teflon Bellow Seal
  •  The weight of motor are not included.
  • Especially design for electroplating industries.
  • The motors of PUPL-F need to be ordered separately.

Material:

Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.

Features

Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids

Self-priming ability

Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate

Teflon Bellow Seal

Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.

Estimated Delivery: 3 – 5 Business Days

------

ETA: 3 to 5 Business days

FREE SHIPPING

$2,136.96

Add to Cart

Cart

Categories

Category

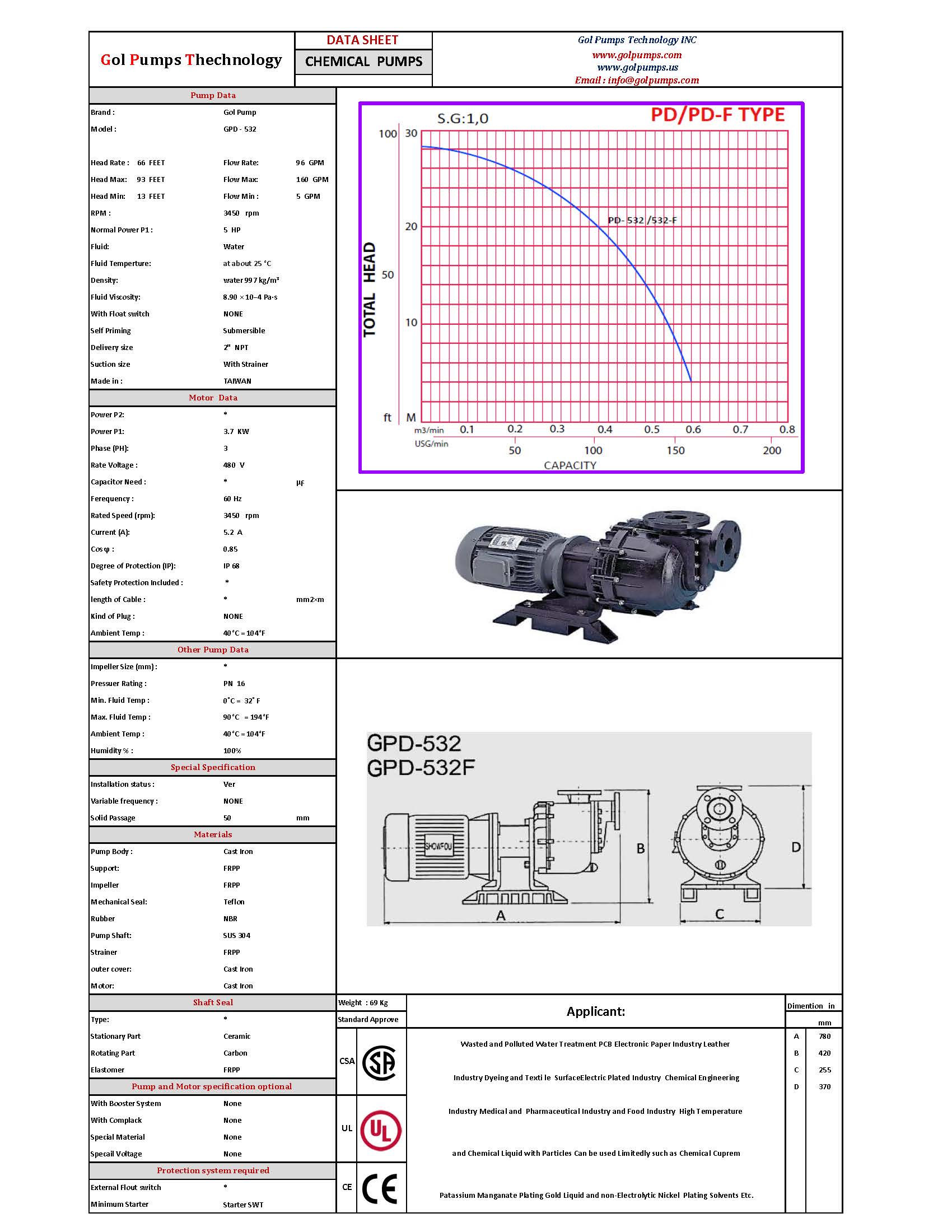

GPD-532 Chemical Pump - Data Sheet

Download Data Sheet PDF | Download GPD-Manual

FRPP: Fiber Reinforced Polypropylene

TYPE S.G MOTOR PUMP
FRPP PVDF POWER PHASE VOLT PUMP OUTLET DISCHARGE GPH MAX.HEAD MAX.FLOW
HP KW PH V INCH FT GAL/MIN
GPD-532 1 5 3.7 3 230V-3PH 2 9 480 92 158

More Spec.

WEIGHT HEIGHT WIDTH LENGTH
LBS INCH INCH INCH
152 16 10 31
  • Equipped with Teflon Bellow Seal
  •  The weight of motor are not included.
  • Especially design for electroplating industries.
  • The motors of PUPL-F need to be ordered separately.

Material:

Gol pump provides FRPP and PVDF pump body to meet customer’s requirement.
FRPP: Fiber Reinforced Polypropylene.

Features

Special main shaft
The SS304 main shaft are covered with Teflon to resist high corrosive chemical liquids

Self-priming ability

Excellent self-priming ability can suck the liquid up to 6 meter, and flap valve design can prevent liquid back flow to maintain the flow rate

Teflon Bellow Seal

Adopting “Teflon Bellow Seal” and Superior anti-corrosive construction to correspond most of chemical liquids such as strong acid and alkali. and the “pump lower cover” adopting with self-cooling design to prevent the “Teflon below seal” from damage.

Structure:

GPD-532 Chemical Pump - Structure

Performance Curve:

GPD-532 Chemical Pump - Performance Curve

Dimensions  (GPD-532):

GPD-532 Chemical Pump - Dimensions







GPD Chemical Pump, Self-Priming Pumps, Fiber Reinforced Polypropylene
