Product Data >>>

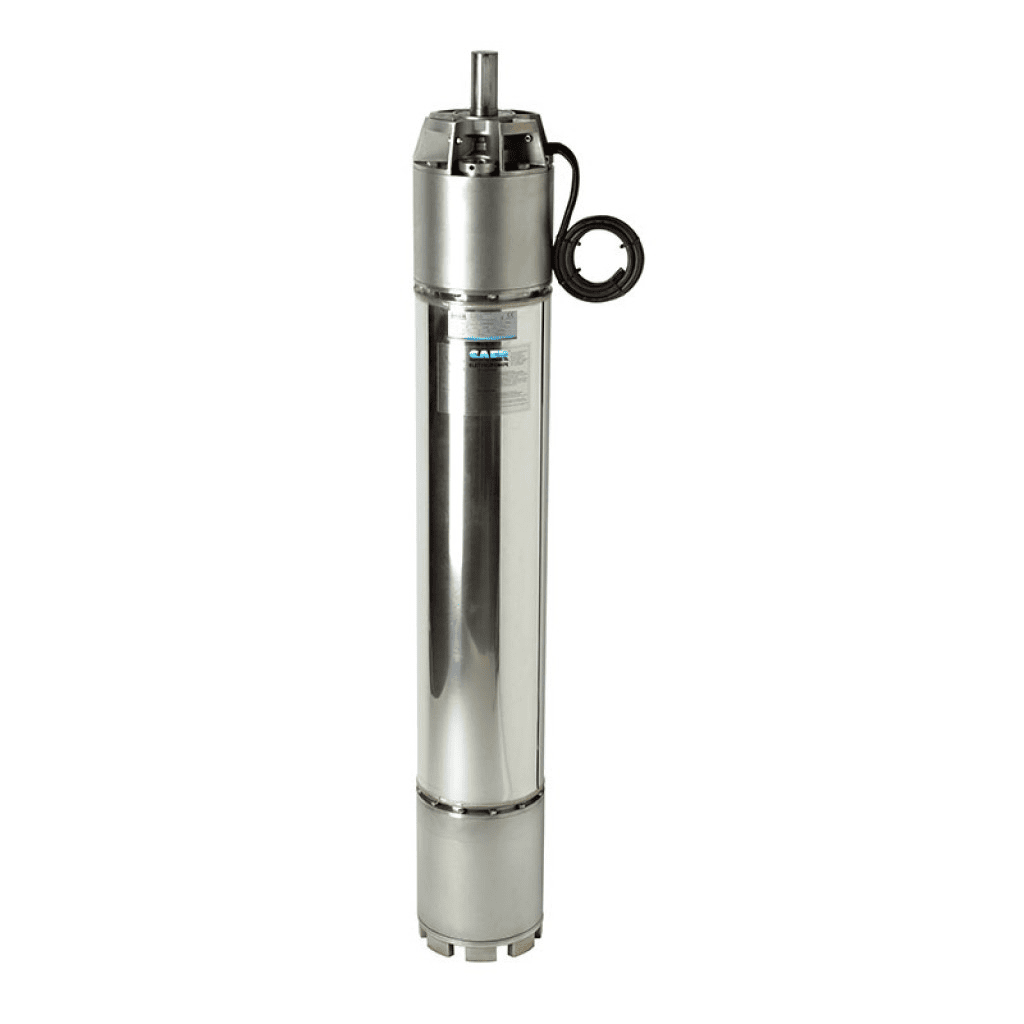

Motor for radial or semi-axial submersible pumps, in wells with 10” diameter or bigger, basins or boosters for pressurization systems.

Product Advantages

  • A compensation membrane on the bottom of the motor ensures the balance between the internal and external pressures, along with the variation of the water volume due to the temperature.
  • Standard, double seal system on rotor shaft: bi-directional mechanical seal in SiC-AlO + sand-guard with laminar seal.
  • Rotation: clockwise or counter clockwise without distinction.
  • Cable material suitable for use with drinking water.
  • All motors 100% tested.
  • Ready for installation of a PT100 sensor.

Description

Technical Data

Technical Specifications

  • From 75kW to 185kW.
  • Flange: 10” NEMA.
  • Protection rating: IP68.
  • Installation: vertical or horizontal.
  • 60 Hz voltage tolerance: -10% / +10%.
  • Max. immersion depth: 652.2 ft.
  • Max. water temperature: 122 °F.

Technical Data

Brand Saer
Model MSX251-125C
Material Stainless Steel 316
Rated Output HP 125
kW 90
Rated Voltage V 460 – 3 Phase
Rated Current A 150
RPM min⁻¹ 3510
ɳ (Eff.) % 50% 87.6
75% 87.8
100% 87.3
COSφ (PF) 50% 0.78
75% 0.85
100% 0.88
Ia / In 6.78
Ca / Cn 2.19
Axial Thrust lb 15000
• Ia / In: Locked rotor current/Rated amperage
• Ca / Cn: Locked rotor Torque/Rated Torque

Dimensions

Flange Conection Diameter L Net Weight
in in lb
Nema 10 51.6 737
