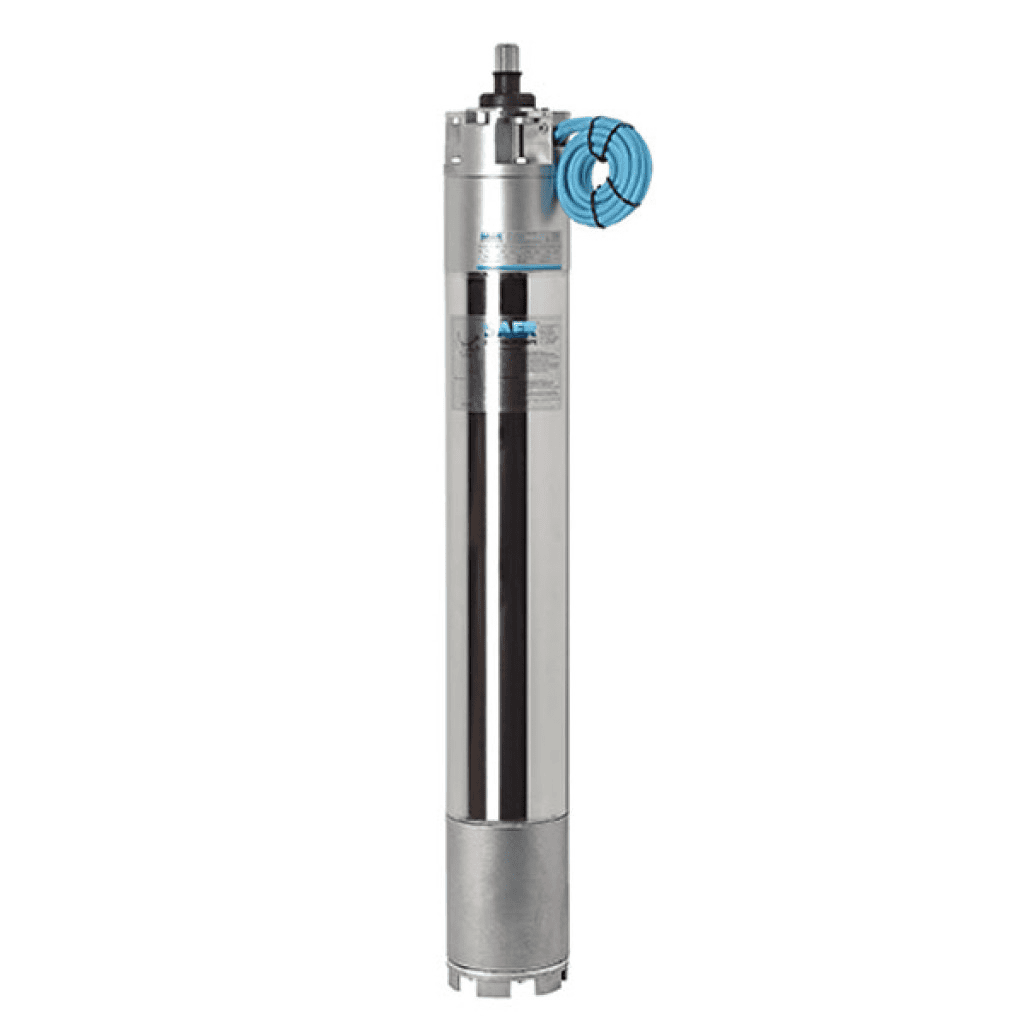

SAER 8″ Stainless Steel 316 Submersible Motor – 125HP, 460V-3PH, 3 Wire, SS316

5/5
SAER 8″ Stainless Steel 316 Submersible Motor – 125HP, 460V-3PH, 3 Wire, SS316

Christmas Deal

SKU: 1632300 Categories: , , , Tags: ,
SKU 1632300 Categories , , , Tags ,
SKU: 1632300 Categories: , , , Tags: ,

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

SAER 8″ Stainless Steel 316 Submersible Motor – 125HP, 460V-3PH, 3 Wire, SS316

5/5

 Unit Price Only

Original price was: $32,065.80.Current price is: $28,859.22.

Free Shipping

Note: This is a heavy item and Forklift or Loading Dock is required at commercial delivery location. Otherwise Please Request Liftgate service from here: Hand Point Down SVG Vector

Note: For residential addresses additional delivery fees may apply

Request Lift Gate Service
Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away...
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Armin and Chris were very helpful in communications by phone and...
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. Had issues with the first pump, and they replaced immediately...
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are....
Previous
Next

shipping SHIPPING


Get it in 5-7 Business Days

  • Forklift or dock door is required at delivery location (If forklift or dock door is not available please request Liftgate from us)
  • Signature Required


FREE

  • Commercial Locations with Forklift or dock door

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

Scan or click to get the app!

Cart

Advertisement

Product Data >>>

Motor for radial or semi-axial submersible pumps, in wells with 8” diameter or bigger, basins or boosters for pressurization systems.

Product Advantages

  • A compensation membrane on the bottom of the motor ensures the balance between the internal and external pressures, along with the variation of the water volume due to the temperature.
  • Standard, double seal system on rotor shaft: bi-directional mechanical seal in SiC-AlO + sand-guard with laminar seal.
  • Rotation: clockwise or counter clockwise without distinction.
  • Cable material suitable for use with drinking water.
  • All motors 100% tested.
  • Ready for installation of a PT100 sensor.

Description

Technical Data

Technical Specifications

  • From 13kW to 110kW.
  • Flange: 8” NEMA.
  • Protection rating: IP68.
  • Installation: vertical or horizontal.
  • 60 Hz voltage tolerance: -10% / +10%.
  • Max. immersion depth: 652.2 ft.
  • Max. water temperature: 122 °F.

Technical Data

Brand Saer
Model MSX201-125C
Material Stainless Steel 316
Rated Output HP 125
kW 92
Rated Voltage V 460 – 3 Phase
Rated Current A 154
RPM min⁻¹ 3510
ɳ (Eff.) % 50% 85
75% 87
100% 88
COSφ (PF) 50% 0.68
75% 0.79
100% 0.86
Ia / In 6.10
Ca / Cn 1.90
Axial Thrust lb 10000
• Ia / In: Locked rotor current/Rated amperage
• Ca / Cn: Locked rotor Torque/Rated Torque

Dimensions

Flange Conection Diameter L Net Weight
in in lb
Nema 8 58.9 561
