Description
Technical Data
Specifications and Dimensions
More Details

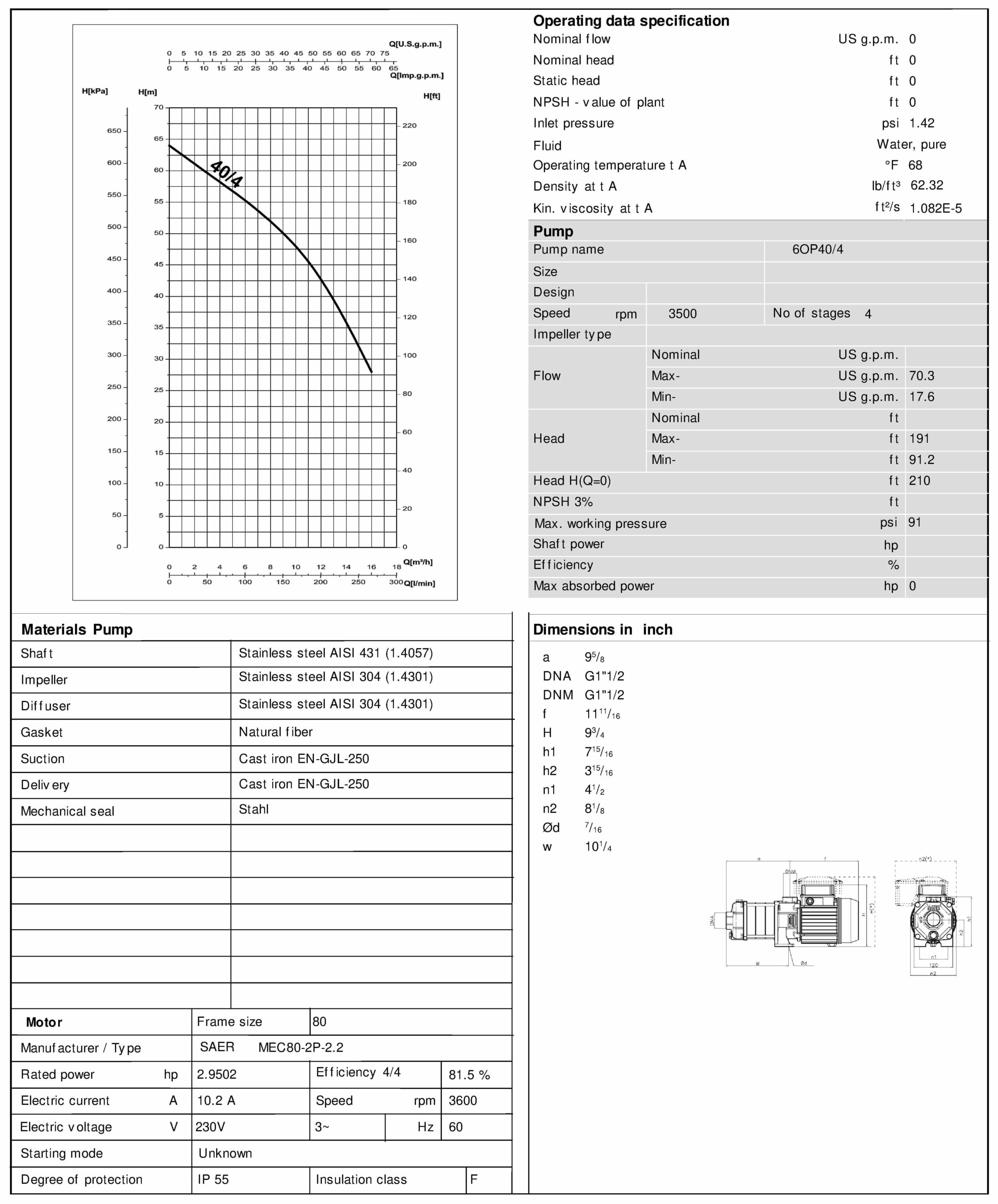

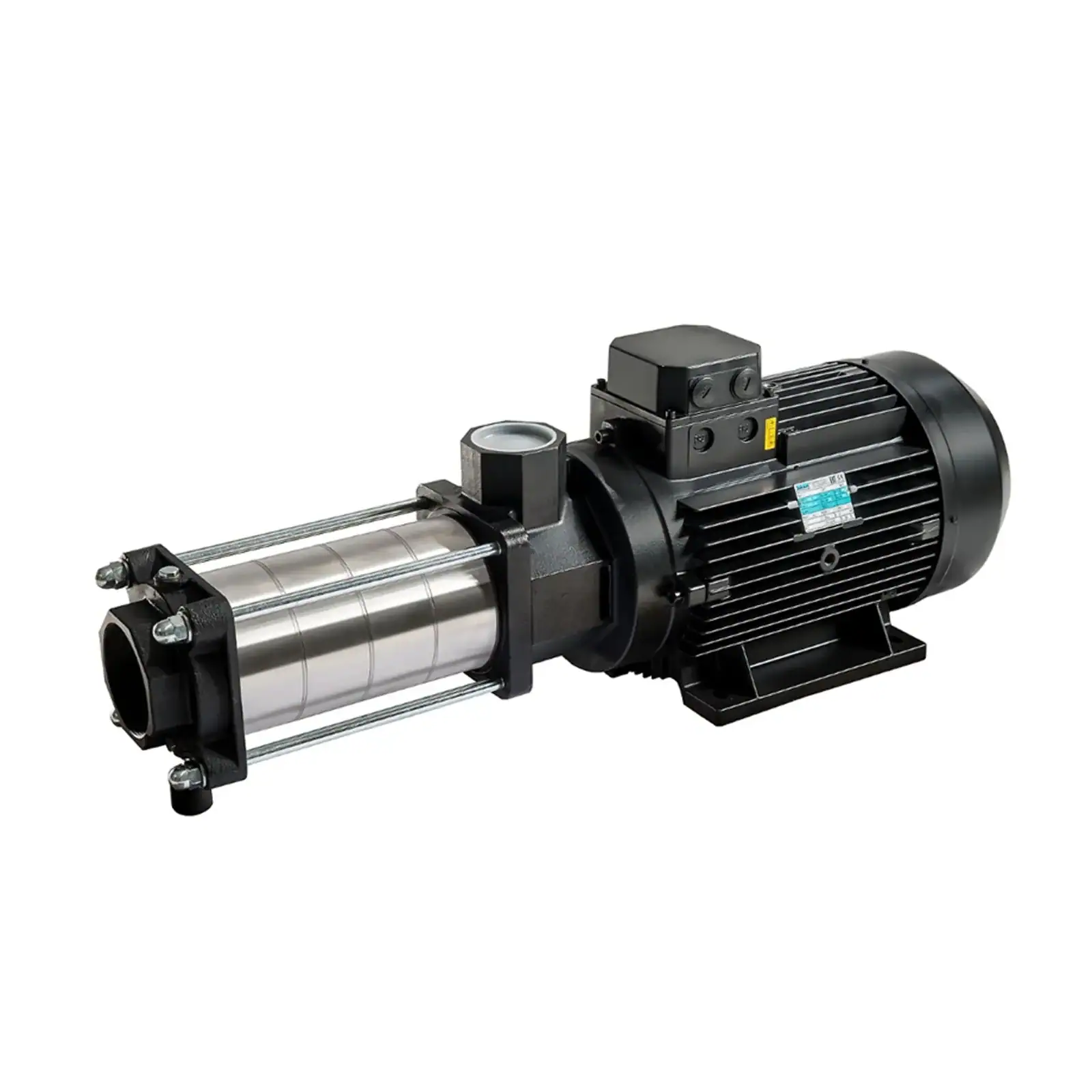

Model | 6OP40/4 |
Brand | Saer-USA |
Manufacturer’s Warranty | 1 year Limited Warranty |
Diffuser body
Impeller Material |
Stainless Steel AISI304
Stainless Steel AISI304 |
Port Size (in.) | 1-1/2 |
Flow (GPH) | 4230 |
HP
KW |
3
2.2 |
Volts | 230V – Single phase |
Amps | 16 |
Max. Total Head (ft.) | 210 |
Max. Suction Lift (ft.) | 17 |
Max. PSI | 93 |
Suction Port (in.) | 1-1/2 |
Discharge Port (in.) | 1-1/2 |
Self-Priming | No |
Dimensions L x W x H (in.) | 21.3 x 8.1 x 9.8 |
Product Weight (lbs.) | 50 |
