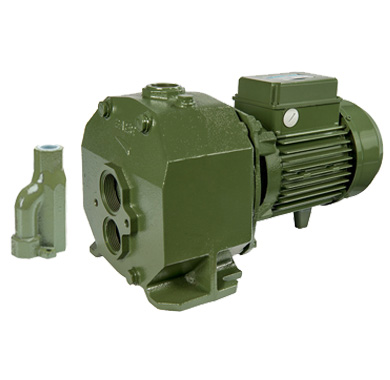

SAER-USA Self Priming Shallow Well Jet Water Pump, 758GPH, 1.5 HP, 230V, Model# M153

SAER-USA Self Priming Shallow Well Jet Water Pump, 758GPH, 1.5 HP, 230V, Model# M153

SAER-USA Self Priming Shallow Well Jet Water Pump, 758GPH, 1.5 HP, 230V, Model# M153

This SAER®-USA Deep Suction Well Jet Pump is ideal for water transfer, irrigation, heating/cooling systems, industrial applications and more.

1.1 Kw  ♦  230 V ♦ 1 PHASE

  • Cast iron body for rugged durability
  • Pressed brass impeller provides corrosion resistance
  • Carbon/ceramic mechanical seal for wear resistance and long life
  • Stainless steel rotor shaft is strong and resists corrosion
  • Totally enclosed fan-cooled motor

Brand: SAER-USA

MADE IN ITALY

Estimated Delivery Time: 3 – 5 Business Days

Specifications and Dimensions

------

ETA: 3 to 5 Business days

FREE SHIPPING

$604.14

Add to Cart

Cart

Categories

Category

This SAER®-USA Deep Suction Well Jet Pump is ideal for water transfer, irrigation, heating/cooling systems, industrial applications and more.

1.1 Kw  ♦  230 V ♦ 1 PHASE

  • Cast iron body for rugged durability
  • Pressed brass impeller provides corrosion resistance
  • Carbon/ceramic mechanical seal for wear resistance and long life
  • Stainless steel rotor shaft is strong and resists corrosion
  • Totally enclosed fan-cooled motor

Brand: SAER-USA

MADE IN ITALY

SAER 1.5 HP Deep Suction Well Jet Pump - Installation Method

Specifications and Dimensions

The SAER Self Priming Cast Iron Deep suction Well Jet pump M153 , 1.5 HP , 1 PHASE , 230-Volt, 60 HZ , NPT TREAD , BRASS & CAST-IRON IMPELLER. General water supply, pressurization of water by using pressure, vessels (autoclaves) horticultural irrigation, mist irrigation, dairy, farm also industrial applications. Water transfer and garden watering applications. Maximum lift is 240 ft. and Maximum flow — GPH. (With External Ejector For Deep Wells 4″)

  • Pump body in cast iron
  • Diffuser in thermoplastic resin
  • Mechanical seal in carbon/ceramic
  • Maximum temperature of pumped liquid 5°F to 122°F
  • Maximum working pressure 130.5 psi
  • Maximum ambient temperature 104°F; for higher temperatures
  • Ejector: P20

Brand: SAER-USA

MADE IN ITALY

More Details:

Model M-153(P20)
Brand Saer-USA
Manufacturer’s Warranty 1 year Limited Warranty
Impeller Material Brass
Port Size (in.) 1 and 1 1/4
Flow (GPH) 758
HP 1-1/2
Volts

AMP

230V – Single Phase

9.5

Max. Total Head (ft.) 217
Max. Suction Lift (ft.) 49
Max. PSI 95
Suction Port (in.) 1
Discharge Port (in.) 1 1/4
Self-Priming Yes
Dimensions L x W x H (in.) 17 x 8.7 x 9.5
Product Weight (lbs.)

Specifications and Dimensions

SAER Deep Suction Well Jet Pump
