WEG SOFT STARTER – 20HP – 220-460VAC – SSW05 WEG – SSW050030T2246EPZ

5/5
WEG SOFT STARTER - 20HP - 220-460VAC - SSW05 WEG - SSW050030T2246EPZ
Christmas Deal
WEG SOFT STARTER - 20HP - 220-460VAC - SSW05 WEG - SSW050030T2246EPZ - Image 2
SKU: 5172504 Categories: , ,
SKU 5172504 Categories , ,
SKU: 5172504 Categories: , ,

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

WEG SOFT STARTER – 20HP – 220-460VAC – SSW05 WEG – SSW050030T2246EPZ

5/5

 Unit Price Only

Original price was: $449.99.Current price is: $427.49.

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Scan or click to get the app!

Cart

Advertisement

DAB ESYBOXMINI 1
DAB ESYBOXMINI 2

Product Data>>>

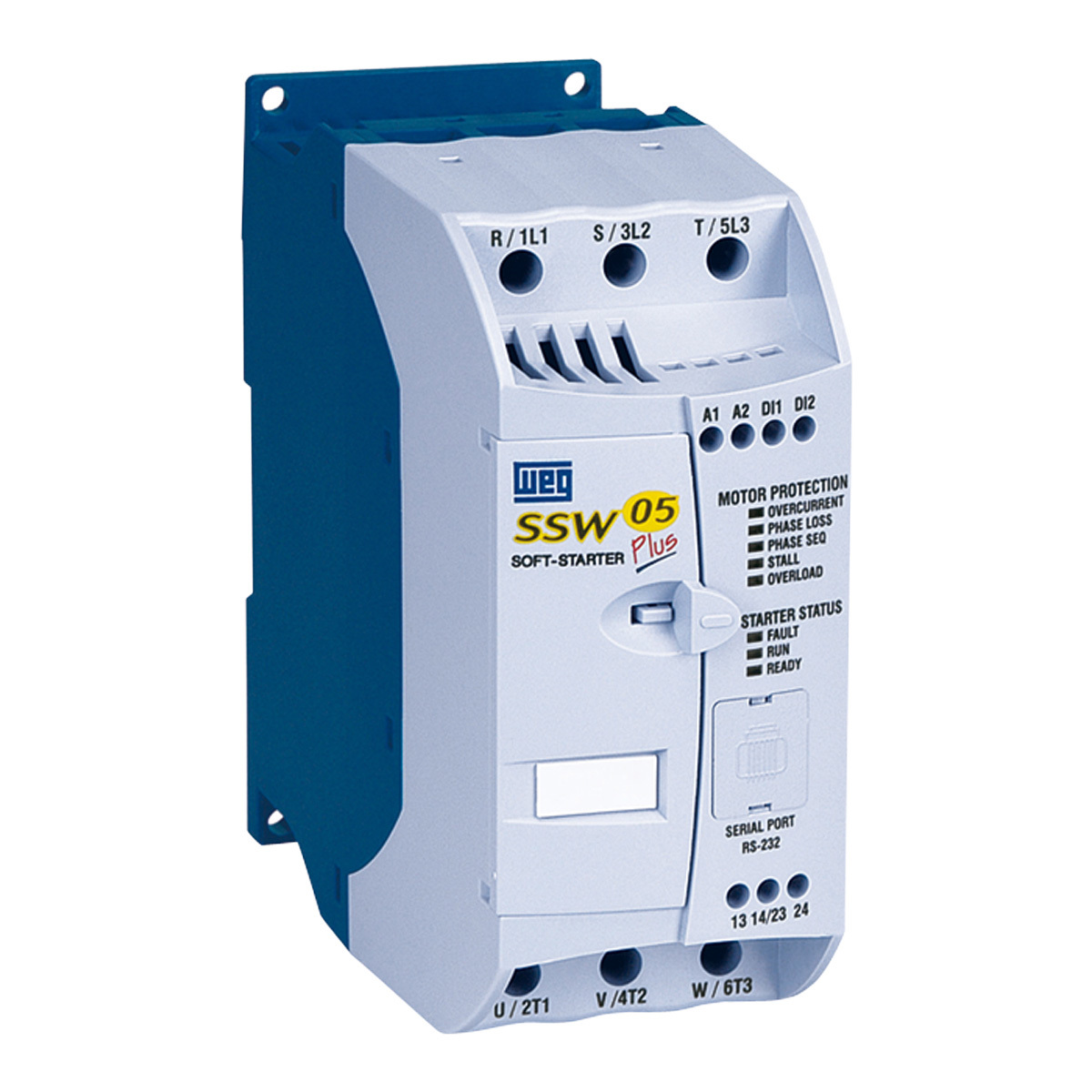

The WEG SSW05 Soft Starter is a super compact fully digital soft starter with a state-of-the-art DSP controller. Its digital construction provides optimum operation, diagnostics capability and full motor protection. Simplicity in set-up and operation is assured since all parameters and set-up selections are made via dip switches and potentiometers. Status LED’s alert the user of the operational status of the SSW05. Simplicity, ease of set-up, and the micro size assures quick and easy installation and operation.

Applications

  • Rotary vane vacuum pump
  • Centrifugal pumps
  • Calenders (starts with no load)
  • Screw compressors (start in relief)
  • Mixers
  • Cellulose refiners
  • Axial fans (low inertia – light load)



Specifications
Brand WEG
Model SSW050030T2246EPZ
Rated current 30A
Power supply 220-460V
Enclosure IP00
Frame 1



colors.png Technical Data

colors.png Catalog

colors.png User Manual

Description

Standard Features

  • 208 – 480V, 50/60Hz input power supply
  • Duty cycle: 300% rated current during 10 seconds, 4 starts per hour
  • Built-in bypass
  • One digital input for Start/Stop (90 – 250 Vac)
  • One digital input for Fault Reset (90 – 250 Vac
  • One relay output for Run indication (1 Amp – 250V)
  • One relay output for Full Voltage indication (1 Amp – 250V)
  • RS-232 serial port
  • Adjustable acceleration and deceleration ramps (1 – 20 seconds)
  • Adjustable pedestal voltage (30 – 80% of line voltage)
  • Protective features: Motor overload, over current and locked rotor, SCR overload, phase loss and phase sequence
  • DIN rail or direct mount
  • Ambient: 32ºF (0ºC) to 131ºF (55ºC), 3300ft (1000m) altitude, 90% non-condensing humidity
