Repair Brush kit for solar pumps. Carbon brush sets for Dc solar Pumps

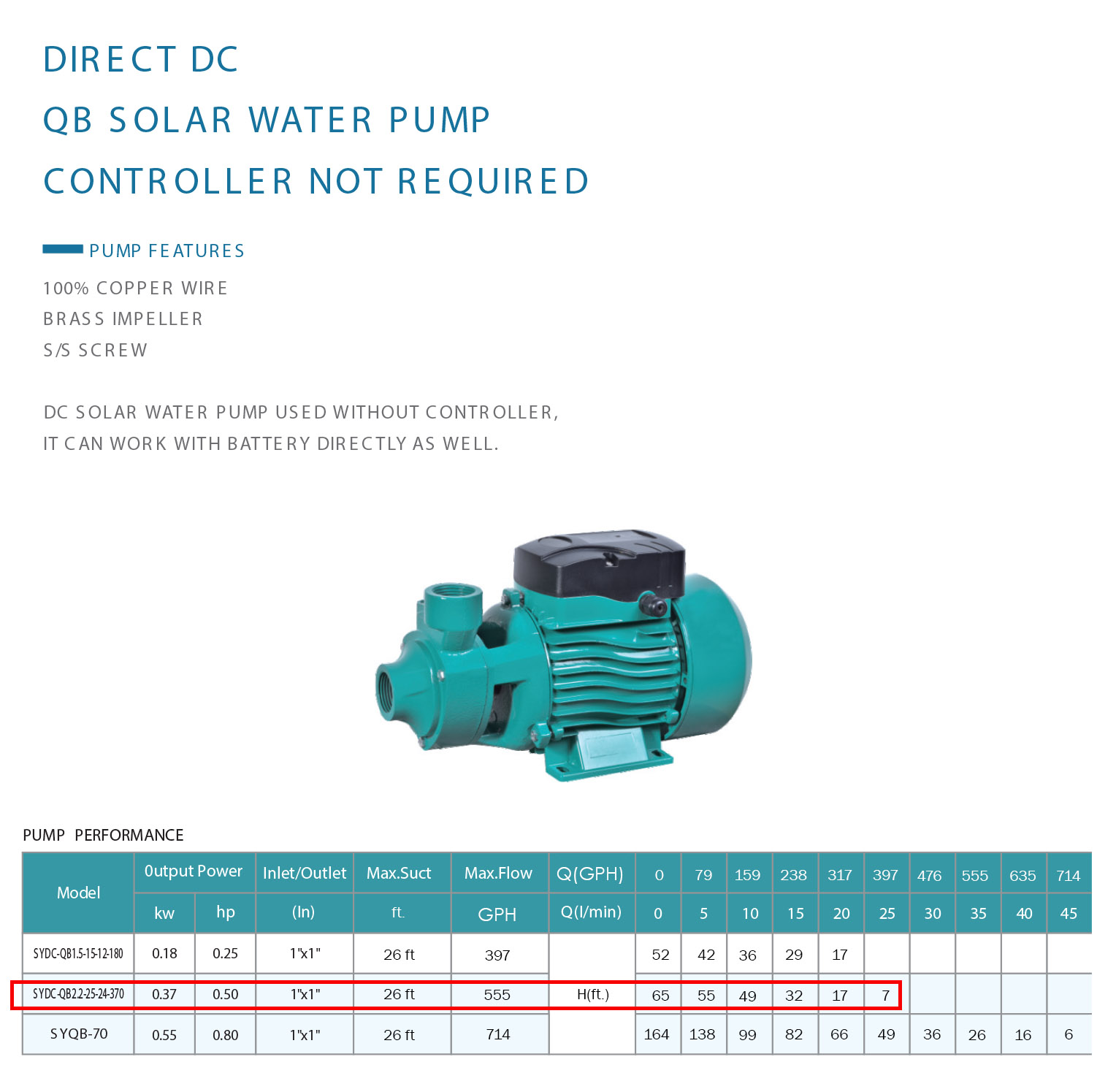

The SYDC-QB is a peripheral solar water pump by Gol Pumps.
DC Solar Water Pump Used without controller. It can work with battery directly as well.

12V(SYDC-QB1.5-15-12-180)

12V 180W / Voltage(DC) 12V / Power: 0.18 Kw / Outlet: 1in / Max Flow: 396 gal/hr / Max head: 49 ft./ Max suction 17 ft.

24V(SYDC-QB2.2-25-24-370)

24V 370W / Voltage(DC) 24V / Power: 0.37 Kw / Outlet: 1in / Max Flow: 581 gal/hr / Max head: 82 ft. / Max suction 17 ft.

24V(SY-QB70-550)

24V 550W / Voltage(DC) 24V / Power: 0.55 Kw / Outlet: 1in / Max Flow: 714 gal/hr / Max head: 115 ft. / Max suction 17 ft.
Pump Feature:

• 100% copper wire
• Pump Material: cast Iron
• Brass Impeller
• S/S Screw
• Ambient Temperature: 40 F up to 104 F
• BSP Threading

Product User Manual

Note: Water cannot be frozen in the pump or the pump will get damaged. Maximum water temperature in 104 F. Pump Must be installed in a covered area.

• Ambient Temperature: 40 F up to 104 F

Very Important Warranty Conditions and information for DC Solar Pumps:
Please note that this product that you have purchased has the following specifications and according to these specifications, the following warranty conditions have been set for this product.
1- This pump is a solar pump or DC pump that its electric motor is a Brush Motor type and after every 500 Hours of working, must be checked on Brushes and the Brushes should be inspected and replaced if necessary.
2- The parts used in this pump are good parts made in China, and finally the pump produced has a good quality.
3- This pump is produced in one of the most experienced Chinese manufacturers, but due to its DC structure, it can be connected directly to the battery or solar panel without the use of an inverter device, and it has good performance, and its installation is simple, cheap, and Due to its price, the life of its Brush and function is also suitable and if it is serviced and inspected, it can have a good function for many years.
4- This pump is made in China and is offered under the brand of Gol Pumps and has a quality management standard “TUV & CE” and does not have a UL standard.
5- The warranty of this pump for replacement in case of any problem happens by the manufacturer is one month from the date of purchase and its service is guaranteed for six months.
6- This pump cannot be replaced and returned after installation and can be returned only if it is not installed with safe packaging and safe delivery to the seller’s office and pay shipment fee and transfer money fee.
You should note that all DC pumps available in the market have the same conditions, and due to its price and ease of installation, if the necessary periodic service and Brush replacement is done, it will work for you for many years.
These conditions have been notified to you before the final confirmation of the purchase, but you will also be notified again before your purchase completion.

How to Wire Solar Panel?

When solar panels are wired in a series, voltage is additive, but the amperage stays the same. But if you parallel wired panels the amperage would be additive, while the voltage remains the same.
