Description

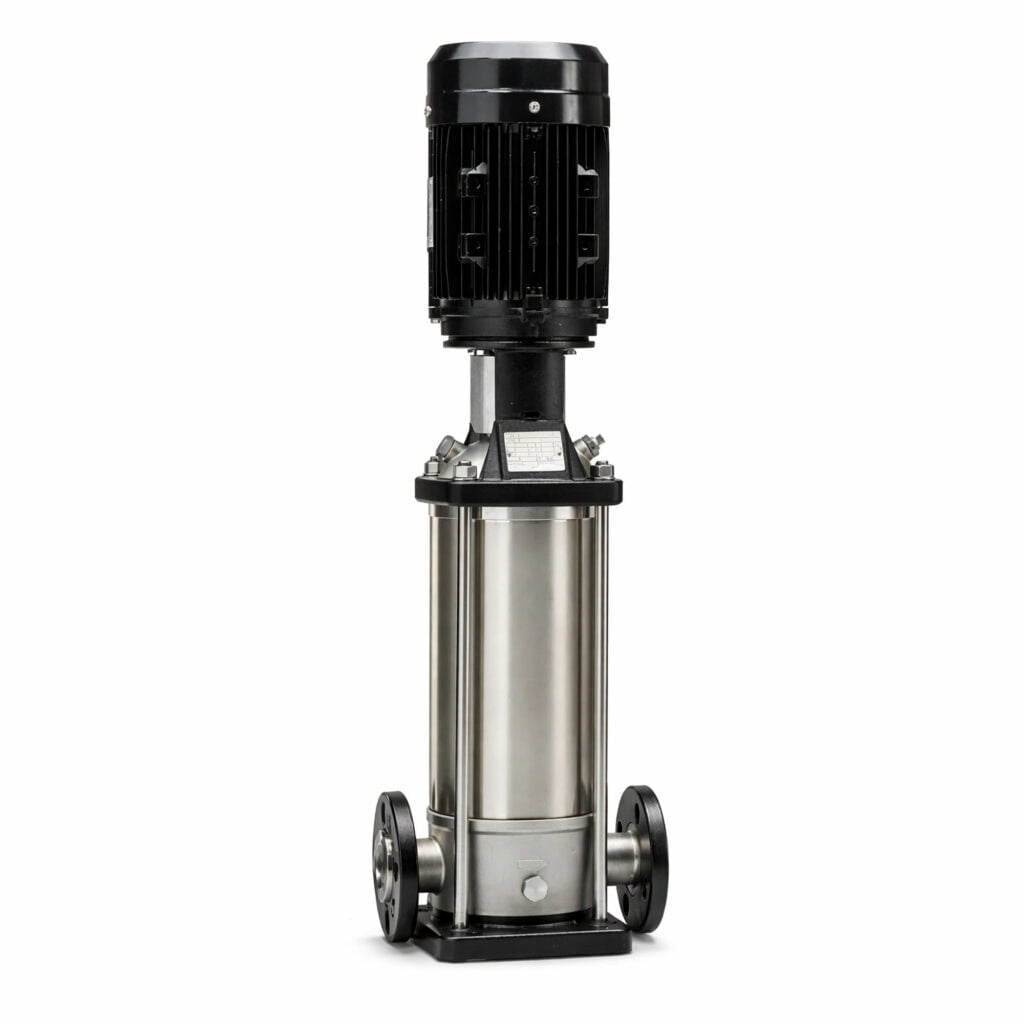

The SBI vertical multistage pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBI pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.
Technical Data
More Details
Model | SBI 1-3 |
Brand | Gol Pumps |
Manufacturer’s Warranty | 1 year Limited Warranty |
Material | Stainless Steel 304 |
Port Size (in.) | 1.25 |
Flow (GPH) | 780 |
HP | 0.5 |
Volts | 110/220V – Single phase – 60Hz |
Amps | 6.2/3.1 |
Max. Total Head (ft.) | 82 |
Max. Suction Lift (ft.) | 17 |
Max. PSI | 36.2 |
Suction Port (in.) | 1.25 |
Discharge Port (in.) | 1.25 |
Centrifugal | Yes |
Dimensions L x W x H (in.) | 9.8 x 8 x 18.7 |
Product Weight (lbs.) | 45 |
Performance Curve
Dimensions
60Hz | Motor P2 | Nominal current (A) | Dimension [mm] | Net weight [kg] | ||||||
Single phase | DIN flange | Port Size | D1 | D2 | DIN flange | |||||
Pump type | [KW] | [HP] | 110/220V | H1 | H2 | DNA | DNM | |||
SBI 1-3 | 0.37 | 0.5 | 6.2/3.1 | 282 | 477 | 1 1/4″ | 1 1/4″ | 141 | 115 | 20.3 |
