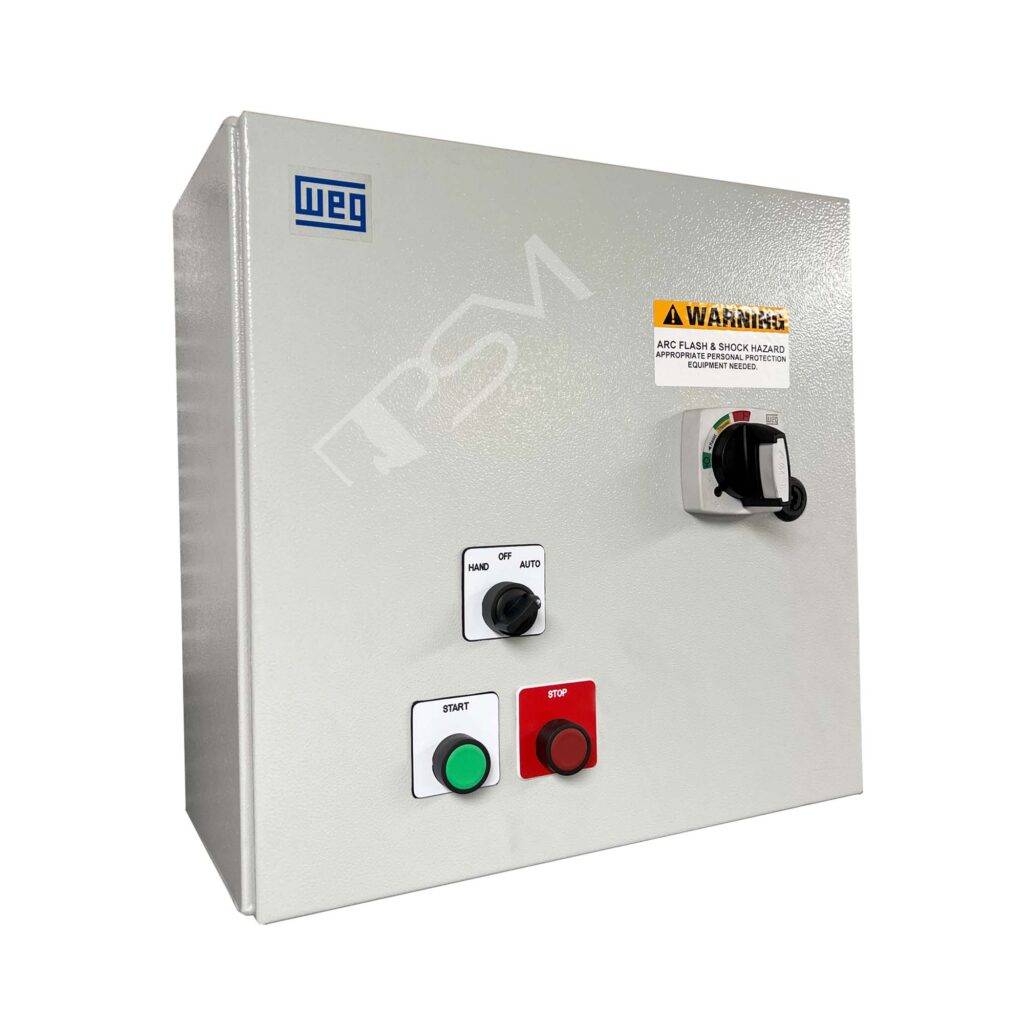

Home » Water Pumps » WEG CONTROL PANEL ~ (40HP) ~ ESWF Series Combination Starters 3PH ~ 460V, ESWF-80T04N4-D21
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Unit Price Only
$1,772.99 Original price was: $1,772.99.$1,684.34Current price is: $1,684.34.
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWF series, up to 75 HP at 460VAC (105A) with or without control power transformers for three-phase applications.
Technical Data | ||
Model |
ESWF-80T04N4-D21 |
|
Panel type | Across the line | |
Bypass type | None | |
Enclosure type | Wall mount | |
Enclosure rating | Type 4/12 | |
Thermal Management | None | |
General enclosure options | None | |
Disconnect switch type | Circuit Breaker rotary handle disconnect | |
Horsepower (HP) | 40HP | |
Main voltage | 460V | |
Control Voltage | 120V | |
Frequency | 60Hz | |
SCCR rating | 5 kAIC | |
Control power transformer | No transformer required | |
Reactor/Filter | None | |
Communication | None | |
Control options | Hand/OFF/Auto Selector Switch | |
Dimensions | Nominal height: 406.4 mm / 16.0 in Nominal width: 304.8 mm / 12.0 in Nominal depth: 203.2 mm / 8.0 in |
|
Certification | UL |
