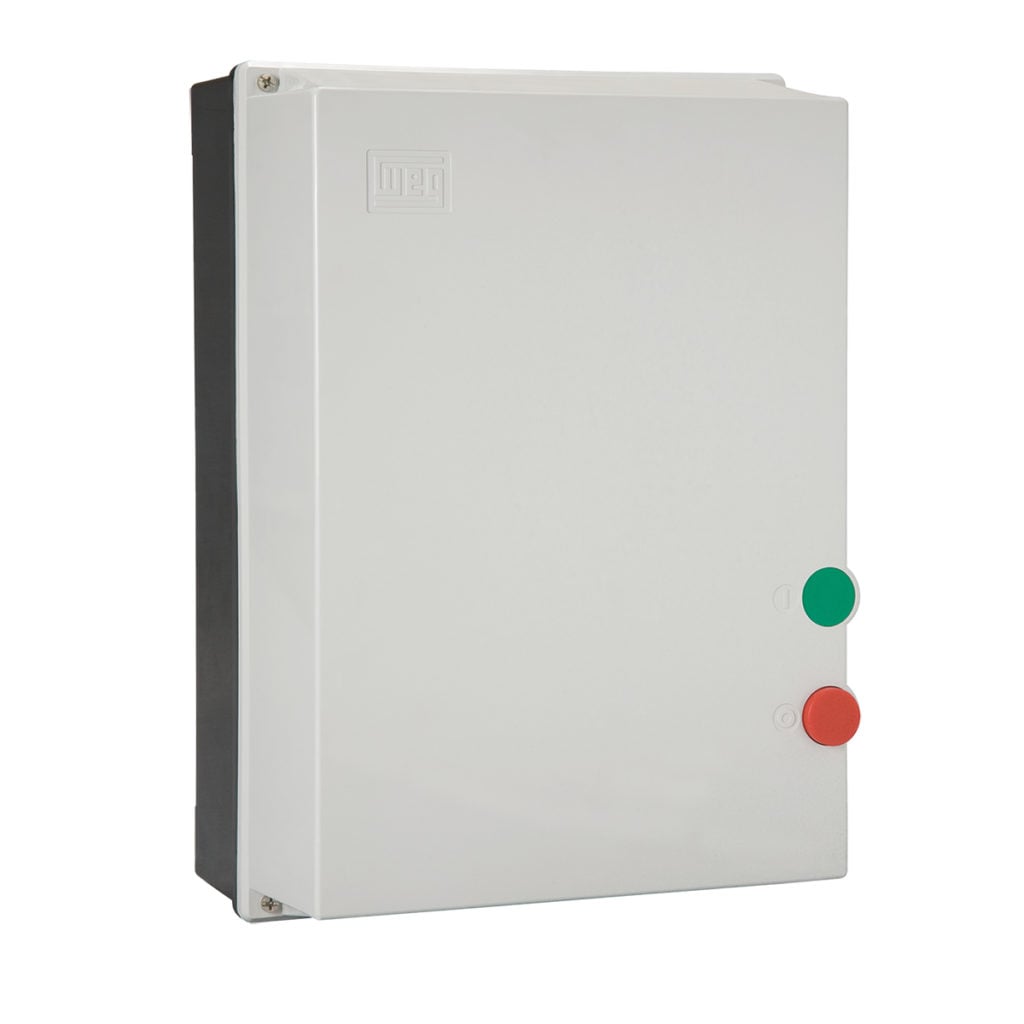

Home » Water Pumps » WEG Control Panel ~50HP~ ENCLOSED STARTER 3PH ~ 480V, PESW-80V47AX-R41
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Unit Price Only
$520.99 Original price was: $520.99.$494.94Current price is: $494.94.
High performance, optimized solutions for motor starting and control. WEG offers full voltage non-reversing and non-combination magnetic starters, PESW series, up to 75HP at 460VAC (105A) for three-phase applications and up to 10HP at 230VAC (50A) for single-phase applications.
Technical Data | ||
Model | PESW-80V47AX-R41 | |
Start Type | Direct Three-phase | |
Maximum power rating | Not applicable | |
Rated operational voltage | Ue<=600V | |
Control voltage | 400-415V 50HZ/480V 60HZ | |
Control devices | A-On-Off Button | |
Degree of protection | TYPE4X | |
Starters Complements | Does Not Contain | |
Rated current (AC-3) | 80A | |
Overload relay | 57-70A (RW67) | |
Measuring tool and accessories | Not Applicable | |
Button type | Unspecified | |
Button color | Not Specified | |
Connection Type | Not Applicable |
