Unit Price Only
Original price was: $1,297.99.$1,233.09Current price is: $1,233.09.
Note: This is a heavy item and Forklift or Dock Door is required at commercial delivery location. Otherwise Please Request Liftgate service from here:
Note: For residential addresses additional delivery fees may apply
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP

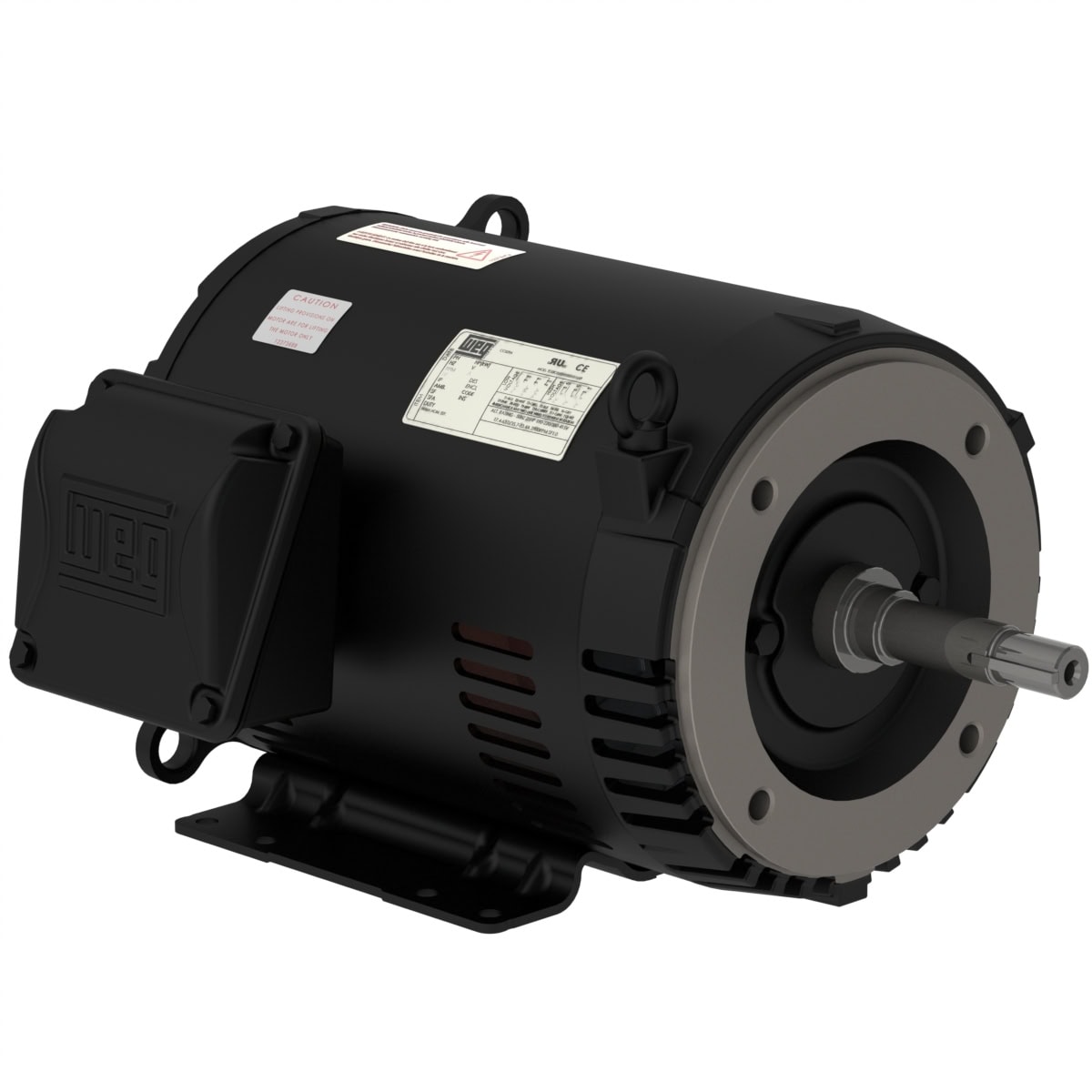

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 |
| Number of poles | 2 |
| Synchronous speed | 3600 rpm |
| Output rating | 15 HP |
| Flange | C |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC01 – ODP |
Technical Data| Brand | WEG |
|---|---|
| Frame | 213/5JM |
| Output | 15 HP |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3535 rpm |
| Slip (%) | 1.81 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 34.4/17.2 |
| L. R. Amperes (A) | 234/117 |
| LRC | 6.8x (Code G) |
| No load Current (A) | 12.3/6.17 |
| Rated Torque (ft.lb) | 22.3 |
| Locked Rotor Torque (%) | 210 |
| Breakdown Torque (%) | 280 |
| Locked Rotor Time | 14s (cold) 8s (hot) |
| Moment of Inertia (J) | 0.5512 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 66.0 dB(A) |
| Approx. Weight (lb) | 141 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 90.1 | 90.2 | 90.2 | 90.2 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.50 | 0.77 | 0.86 | 0.89 |
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main Terminal Box Hole | 1.377″ |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Munsell N 1 – Matte 207N (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover Material | Without |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Screw Cap | Carbon Steel SAE 1010/20 |
| Brands | |
|---|---|
| Electric Motor Voltage | |
| Phase | |
| Horse Power Electric Motor | |
| Material Electric motor | |
| RPM | 3600 |
