Unit Price Only
Original price was: $266.99.$253.64Current price is: $253.64.

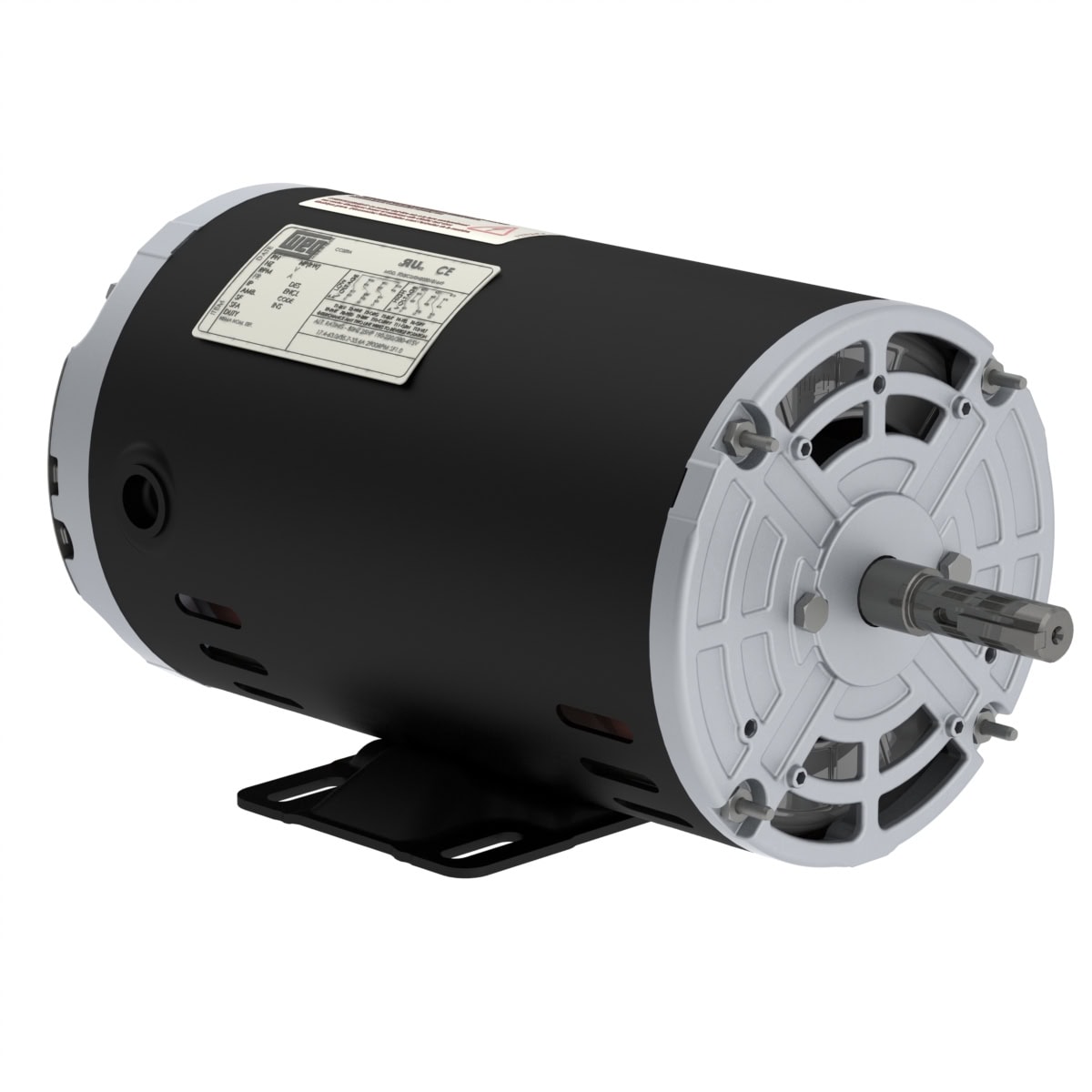

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings..
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460 |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 1 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Without |
| Enclosure | IC01 – ODP |
Technical Data| Brand | WEG |
|---|---|
| Frame | 56 |
| Output | 1 HP |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated Speed | 1760 rpm |
| Slip (%) | 2.22 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 3.14/1.57 |
| L. R. Amperes (A) | 23.9/11.9 |
| LRC | 7.6x (Code L) |
| No load Current (A) | 2.20/1.10 |
| Rated Torque (ft.lb) | 2.98 |
| Locked Rotor Torque (%) | 280 |
| Breakdown Torque (%) | 320 |
| Locked Rotor Time | 30s (cold) 17s (hot) |
| Moment of Inertia (J) | 0.0842 sq.ft.lb |
| Insulation Class | F |
| Service Factor | 1.15 |
| Temperature Rise | 80 K |
| Duty Cycle | Cont. (S1) |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Enclosure | IC01 – ODP |
| Mounting | F-1 |
| Rotation | Both (CW and CCW) |
| Noise Level | 52.0 dB(A) |
| Approx. Weight (lb) | 27.1 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 77.3 | 78.5 | 82.5 | 83.5 |
| 25% | 50% | 75% | 100% |
|---|---|---|---|
| 0.27 | 0.49 | 0.63 | 0.72 |
| Frame Material | Rolled Steel |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | Only primer |
| Grounding Lugs | Single |
| Fan Cover Material | Without |
| Tropicalized Painting | Without |
| Bearing Cap | No |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
