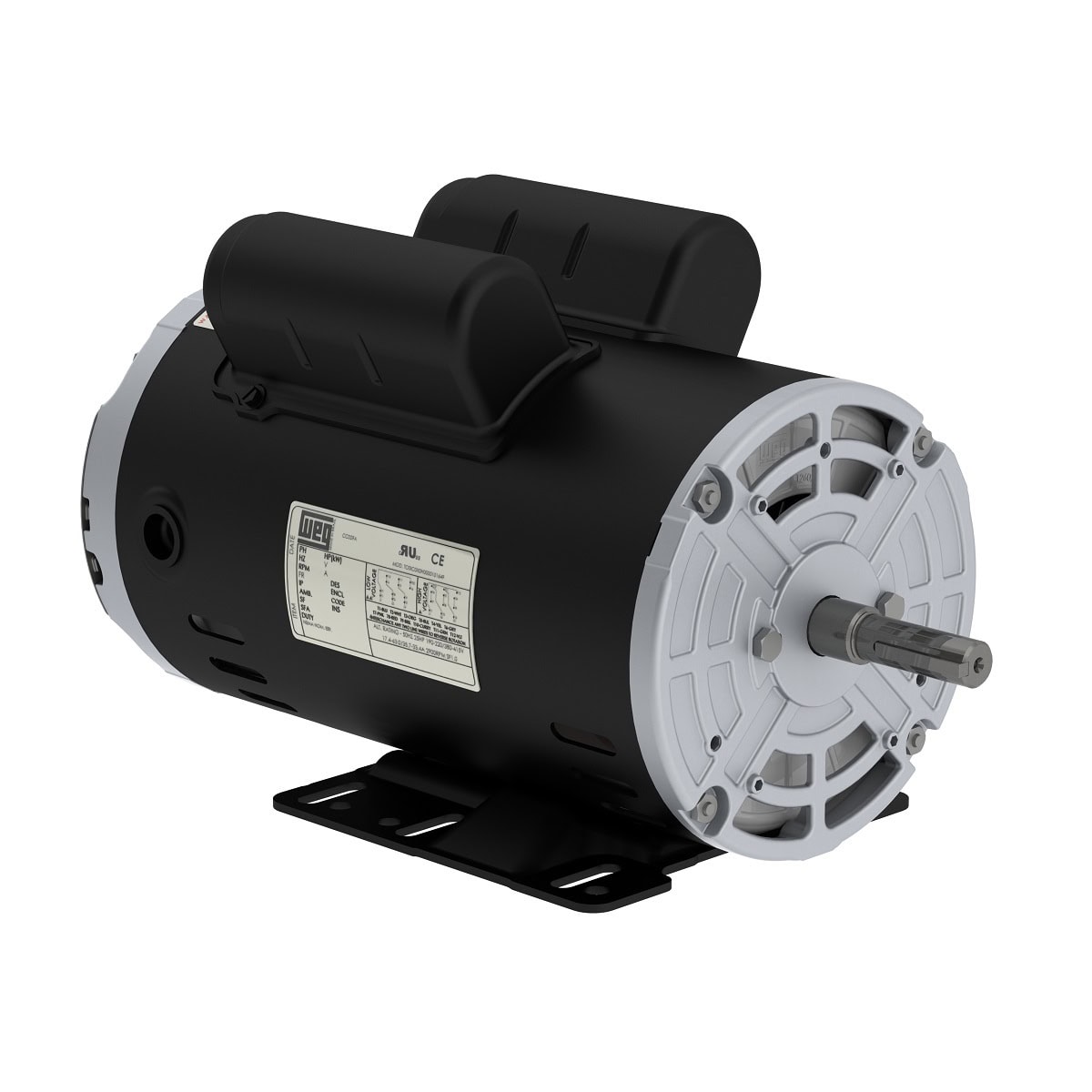

WEG Rolled Steel Motor – 2HP, 115/230V – 1Ph, 60 Hz, 1730RPM, ODP, Foot-mounted, Model 00218OT1B56-S

5/5
WEG Rolled Steel Motor - 2HP, 115/230V - 1Ph, 60 Hz, 1730RPM, ODP, Foot-mounted, Model 00218OT1B56-S

Christmas Deal

SKU: 5160709 Categories: , , , , Tags: , ,
SKU 5160709 Categories , , , , Tags , ,
SKU: 5160709 Categories: , , , , Tags: , ,

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Return Policy | ClimateCase   Please Read Our Return Policy

WEG Rolled Steel Motor – 2HP, 115/230V – 1Ph, 60 Hz, 1730RPM, ODP, Foot-mounted, Model 00218OT1B56-S

5/5

 Unit Price Only

Original price was: $475.99.Current price is: $452.19.

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Scan or click to get the app!

Cart

Advertisement

DAB ESYBOXMINI 1
DAB ESYBOXMINI 2

Product Data>>>

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings..

Product Features

Standard NEMA MG-1
Frequency 60 Hz
Voltage 115/208-230
Number of poles 4
Synchronous speed 1800 rpm
Output rating 2 HP
Flange Without
Mounting F-1
Terminal box Without
Enclosure IC01 – ODP

Description

Technical Data

Technical Data

Brand WEG
Frame 56H
Output 2 HP
Number of Poles 4
Frequency 60 Hz
Rated Speed 1730 rpm
Slip (%) 3.89
Rated Voltage (V) 115/208-230
Rated Current (A) 17.7/9.5-8.87
L. R. Amperes (A) 115/61.7-57.7
LRC 6.5x (Code H)
No load Current (A) 6.2/2.67-3.1
Rated Torque (ft.lb) 6.07
Locked Rotor Torque (%) 290
Breakdown Torque (%) 225
Locked Rotor Time 32s (cold) 18s (hot)
Moment of Inertia (J) 0.1614 sq.ft.lb
Insulation Class F
Service Factor 1.15
Temperature Rise 80 K
Duty Cycle Cont. (S1)
Starting Method Direct On Line
Ambient Temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Enclosure IC01 – ODP
Mounting F-1
Rotation Both (CW and CCW)
Noise Level 52.0 dB(A)
Approx. Weight (lb) 49.6

Efficiency

25% 50% 75% 100%
82.2 83.0 84.0 84.5

Power Factor

25% 50% 75% 100%
0.49 0.75 0.83 0.87

Features

Frame Material Rolled Steel
Impregnation Method Dip and Bake Polyester
Main Terminal Box Hole NPT 1/2″
Terminal Block Without
Shaft Material SAE 1040/45 Carbon Steel
Painting Only primer
Grounding Lugs Single
Fan Cover Material Without
Tropicalized Painting Without
Bearing Cap No
Drip Cover Without
Overload Protector (phenolic) Without

Dimensions

Additional information

Brands

Electric Motor Voltage

,

Phase

Horse Power Electric Motor

Material Electric motor

RPM

1800
