Unit Price Only
Original price was: $2,938.36.$2,791.44Current price is: $2,791.44.
Note: This is a heavy item and Forklift or Loading Dock is required at commercial delivery location. Otherwise Please Request Liftgate service from here:
Note: For residential addresses additional delivery fees may apply
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP

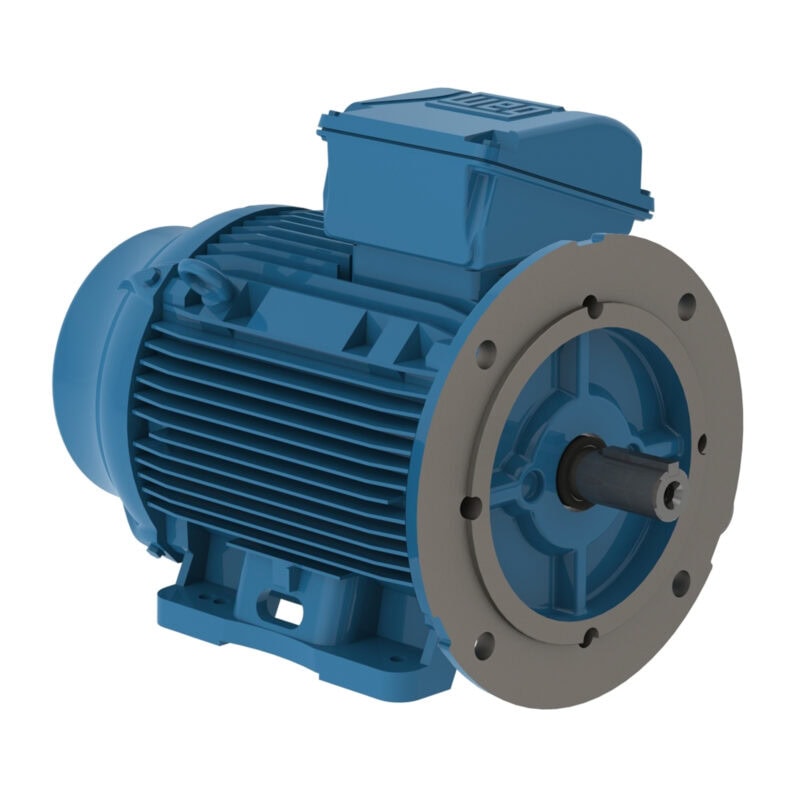

Cast Iron frame and removable feet being able to provide great flexibility and facilitate the change of configuration without requiring additional machining or modifications. Its terminal box can rotate every 90 degrees, allowing the connection of the motor cables on any side. Furthermore, these motors are totally interchangeable with the cast iron motors.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 30 HP |
| Flange | FF |
| Mounting | B35T |
| Terminal box | Top |
| Enclosure | IC411 – TEFC |
Technical Data| Brand | WEG |
|---|---|
| Frame | 180M |
| Output | 30 HP (22 kW) |
| Number of Poles | 2 |
| Frequency | 60 Hz |
| Rated Speed | 3555 rpm |
| Slip (%) | 1.25 |
| Rated Voltage (V) | 230/460 |
| Rated Current (A) | 67.8/34.3 |
| L. R. Amperes (A) | 494/247 |
| LRC (A) | 7.2 |
| No load Current (A) | 23.0/11.5 |
| Rated Torque (ft.lb) | 59.1 Nm |
| Locked Rotor Torque (%) | 280 |
| Breakdown Torque (%) | 290 |
| Locked Rotor Time | 22s (cold) 12s (hot) |
| Moment of Inertia (J) | 2.17 sq.ft.lb |
| Design | N |
| Insulation Class | F |
| Service Factor | 1.25 |
| Temperature Rise | 80 K |
| Duty Cycle | S1 |
| Starting Method | Direct On Line |
| Ambient Temperature | -20°C to +40°C |
| Altitude | 3280 ft |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | B35T |
| Rotation | Both (CW and CCW) |
| Noise Level | 72.0 dB(A) |
| Approx. Weight (lb) | 353 |
| 50% | 75% | 100% |
|---|---|---|
| 91.5 | 91.7 | 92.4 |
| 50% | 75% | 100% |
|---|---|---|
| 0.75 | 0.83 | 0.87 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | 2xM32x1,5 |
| Terminal Block | BMC – 6 pins |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207N (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover Material | Steel |
| Tropicalized Painting | Without |
| Bearing cap | Yes |
| Balancing Method | 1/2 Key |
| Drip Cover | Without |
| Overload Protector (phenolic) | Without |
| Connection Cables Quantity | 6 |
| Fan Material | Plastic |
