Unit Price Only
Original price was: $1,200.99.$1,140.94Current price is: $1,140.94.
Available on backorder
Note: This is a heavy item and Forklift or Loading Dock is required at commercial delivery location. Otherwise Please Request Liftgate service from here:
Note: For residential addresses additional delivery fees may apply
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
High starting torque
Suitable for domestic and rural power supply conditions
Adaptable design suitable for a variety of applications and needs
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208-230/ 460 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 10 HP |
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
Download Full Product Data Sheet

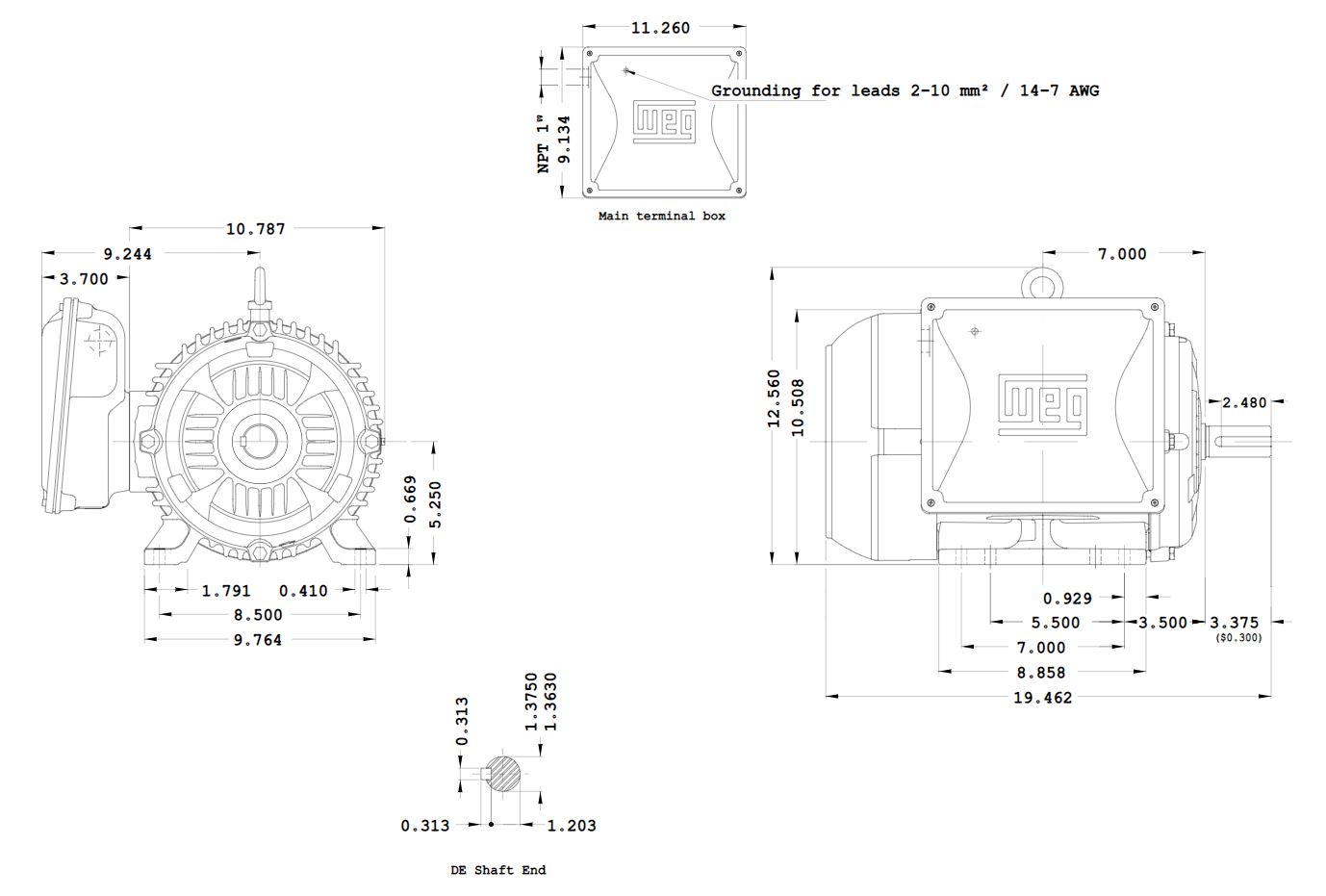

| Frame | 213/5T |
|---|---|
| Output | 10 HP (7.5 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1740 rpm |
| Slip | 3.33 % |
| Rated voltage | 208-230/460V |
| Rated current | 44.5-40.8/20.4 A |
| L. R. Amperes | 298-273/137 A |
| LRC | 6.7x(Code G) |
| No load current | 9.66-11.2/5.60 A |
| Rated torque | 30.2 ft.lb |
| Locked rotor torque | 260 % |
| Breakdown torque | 240 % |
| Locked rotor time | 10s (cold) 6s (hot) |
| Moment of inertia (J) | 1.15 sq.ft.lb |
|---|---|
| Insulation Class | F |
| Temperature rise | 80 K |
| Service factor | 1.15 (1.00 @ 208V) |
| Duty Cycle | Cont.(S1) |
| Starting Method | Direct On Line |
| Ambient temperature | -20°C to +40°C |
| Altitude | 1000 m.a.s.l. |
| Degree of Protection | IP55 |
| Enclosure | IC411 – TEFC |
| Mounting | F-1 |
| Rotation¹ | Both (CW and CCW) |
| Noise level² | 63.0 dB(A) |
| Approx. weight³ | 190 lb |
| 50% | 75% | 100% |
|---|---|---|
| 77.9 | 82.5 | 84.0 |
| 50% | 75% | 100% |
|---|---|---|
| 0.92 | 0.94 | 0.95 |
| Frame Material | Cast Iron |
|---|---|
| Impregnation Method | Dip and Bake Polyester |
| Main terminal box hole | NPT 1″ |
| Terminal Block | Without |
| Shaft Locking Device | Without |
| Drain | Rubber, automatic |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Painting | RAL 5009 207A (ISO 12944 – C2) |
| Grounding Lugs | Single |
| Fan Cover material | Steel |
| Tropicalized Painting | Without |
| Fan material | Plastic |
| Bearing cap | No-Without Bearing Cap |
| Drip Cover | Without |
| Overload protector (phenolic) | Without overload protector |
| Brands | |
|---|---|
| Electric Motor Voltage | |
| Phase | |
| Horse Power Electric Motor | |
| Material Electric motor | |
| RPM | 1800 |
